Our Gooseneck Hitch and Service Truck Bed Hybrid
- 3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
- Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
- B&W Turnoverball® stowing hitch system rated for 30,000 lb. gross trailer weight and 7,500 lb. tongue weight.
- Service truck bed style design with raised front, flip top, and rear underbody integrated compartments.
- Designed for Class 2 and above single and dual rear wheel cab chassis.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!
Steel PGTD Gooseneck Body
Steel PGTD Gooseneck Body
Features
B&W Turnoverball® hitch
B&W Turnoverball® hitch rated for 30,000 lb. gross trailer weight and 7,500 tongue weight.
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Finish Paint
Durable oven-cured finish coat paint on top of Knapheide's exclusive electrodeposition prime paint for a clean overall appearance.
Door Seals
Triple contact door seals provides protection against the outside elements for your tools and equipment.
LED Lights
Integrated LED S/T/T and B/U lights located in the bulkhead for a clean appearance.
Bulkhead
Formed, integrated bulkhead with screened window and tapered design to conform to cab contours and increase operator visibility.
Flooring
Rugged 1/8"-thick treadplate floor that can withstand jobsite abuse.
Slam Tailgate
Slam tailgate with center-mounted release handle
Integrated Fuel Fill
Integrated driver side fuel fill for added convenience. Placement dependent upon length of body.
Marker Lights
All marker, clearance, and I.D. lights are LED.

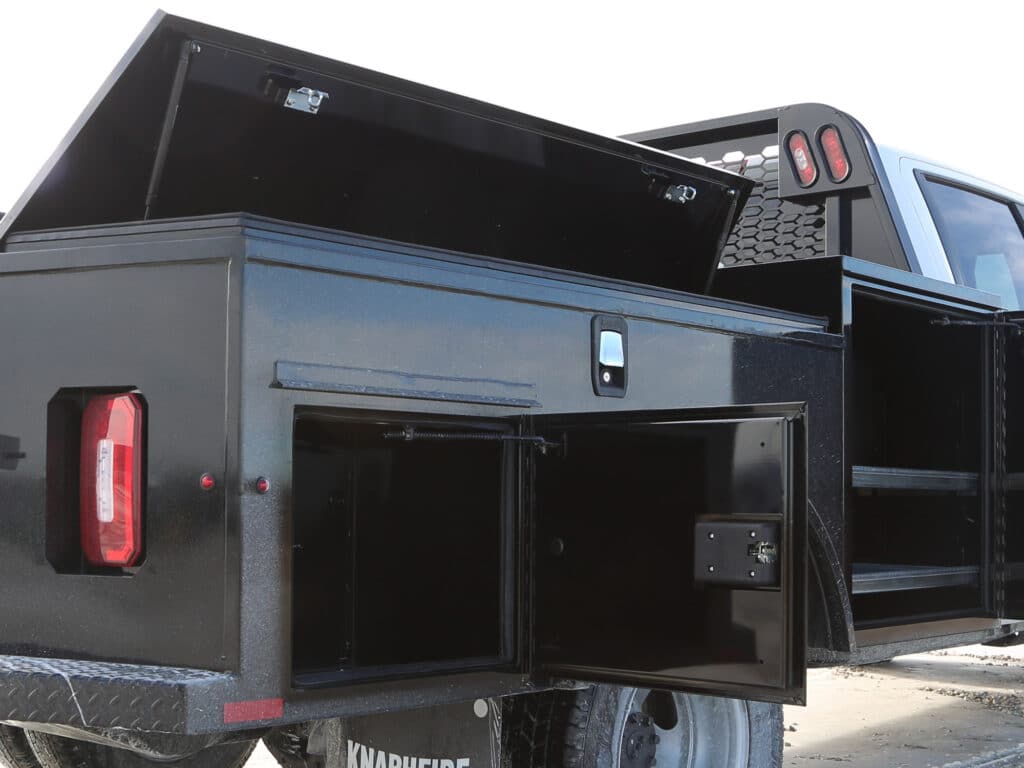

Flip Top Compartments
Flip-top compartments with exterior latch and employs nitrogen gas struts for smooth opening and closing.
Compartment Doors
Features double-shell, 20-gauge, two-sided A-40 galvanneal steel compartment doors
Compartment Shelves
250 lb. capacity adjustable divider shelves made of rugged spangled galvanized steel. Divider slots on 4" centers. Shelves are covered by the Knapheide six year warranty.
Door Retainer
Double spring over-center door retainer on all doors eliminates involuntary swing and keeps the door in positive open or closed position.
Body Shell
Rugged 14-gauge, two-sided A-40 galvanneal steel body shell with a six year warranty. Complete undercoating provides an additional layer of corrosion protection.
Security Ring
Adjustable security ring strikers provide strength, security, and a weather tight seal throughout the entire life of the body.
Internal Latch Cover
Latch interior cover secures the latch to the door and protects the internal latch mechanisms from being damaged. Appearance may vary.
Automotive Latch
Automotive quality, paddle-activated rotary style latches make opening and closing easy. Low maintenance and stylish, the latches are covered under Knapheide's six year warranty.
Stainless Steel Hinge
Continuous stainless steel hinge for unmatched security and corrosion resistance, backed by the Knapheide six year warranty.
Rear Step
7" deep rear step makes accessing the cargo area safe and easy.
Proprietary Lights
Tailskirt-integrated lighting system features LED S/T/T and B/U, LED strobe option with (8) selectable patterns and built-in reflectivity for additional safety
Body Options
Add-ons
Specifications
Standard Models
Actual Length Actual Width Chassis CA Model Net Weight (lbs) Long Sill Spacing Single Rear Wheel 7'-8" 82.5" 40" PGTD-718-F 1,208 38" 7'-11" 82.5" 42" PGTD-748-G 1,279 42" 8'-11" 82.5" 56" PGTD-848-F 1,367 38" 8'-11" 82.5" 56" PGTD-848-R 1,367 42" 9'-2" 82.5" 56" PGTD-878-G 1,445 42" 9'-11" 82.5" 60" PGTD-948 1,509 34" Dual Rear Wheel 8-11" 96" 56" PGTD-84-F 1,489 38" 8-11" 96" 56" PGTD-84-R 1,471 42" 9'-2" 96" 56" PGTD-87-G 1,570 42" 9'-11" 96" 60" PGTD-94 1,640 34" 11'-11" 96" 84" PGTD-114 1,968 34" 9'-11" 96" 60" PGTD-94-MD 1,654 34" 11'-11" 96" 84" PGTD-114-MD 1,982 34"
Gallery
Images are shown for illustrative purposes only and may not be an exact representation of the product.
