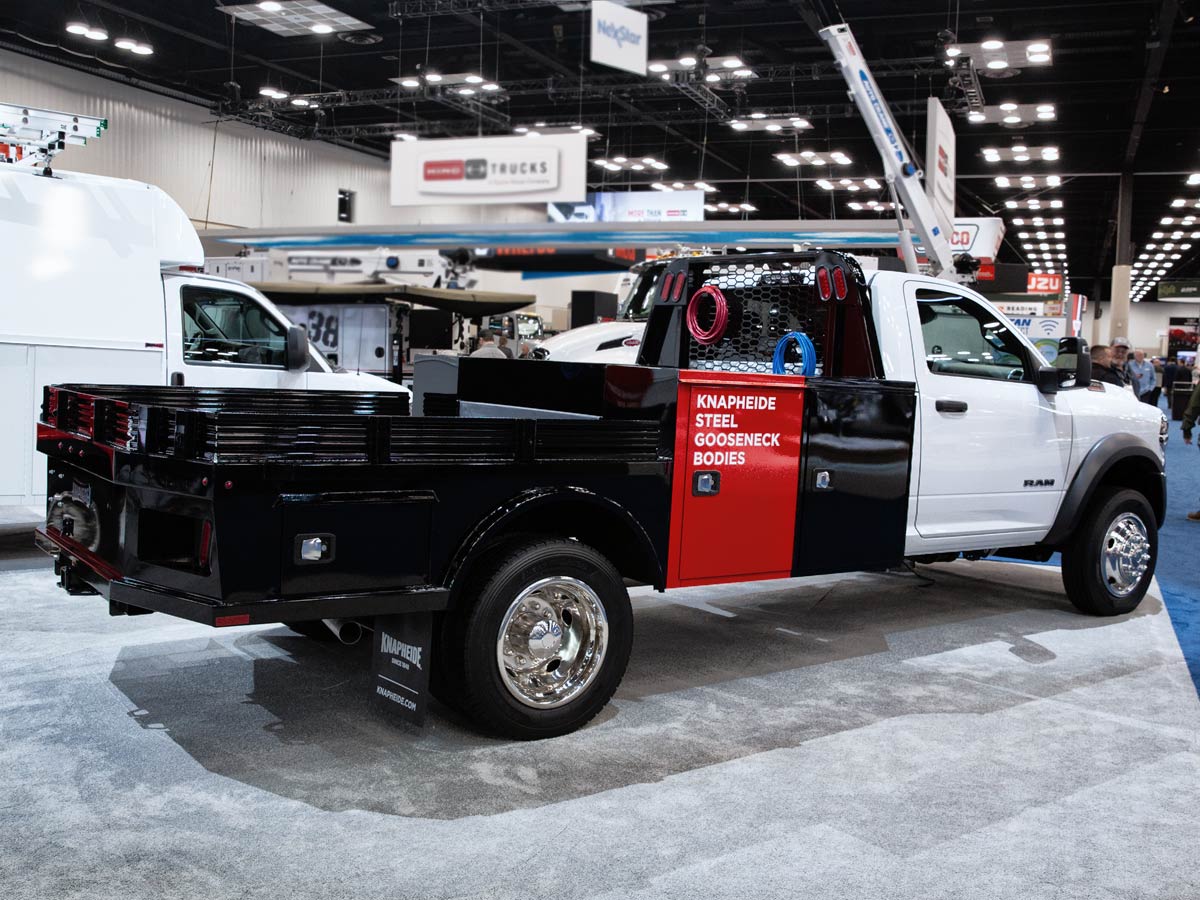

A Gooseneck Service Body and Flatbed Fusion
If you need a flatbed with more storage than the side skirts on our PGTC model offer, the PGTE Gooseneck Truck Bed — with its raised front compartments — might be just what you’re looking for. While the PGTD leans more toward a full-on gooseneck service body, the PGTE hits the sweet spot for those who want the best of both worlds: a gooseneck flatbed and a service body in one.
- 3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
- Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
- B&W Turnoverball® stowing hitch system rated for 30,000 lb. gross trailer weight and 7,500 lb. tongue weight.

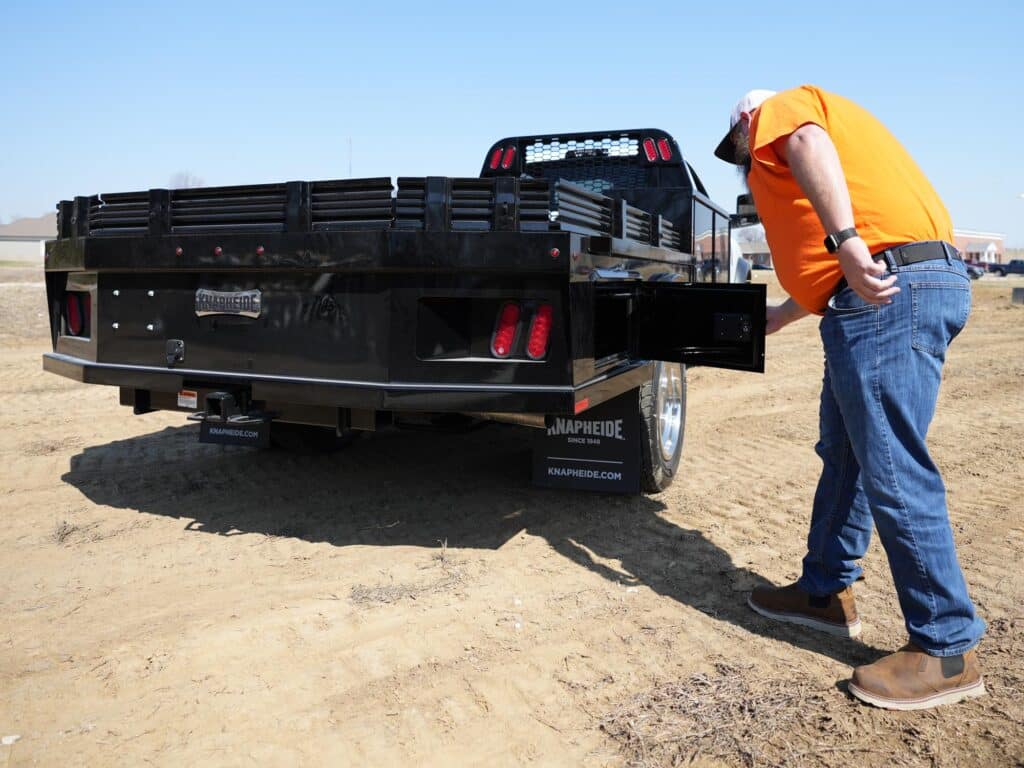

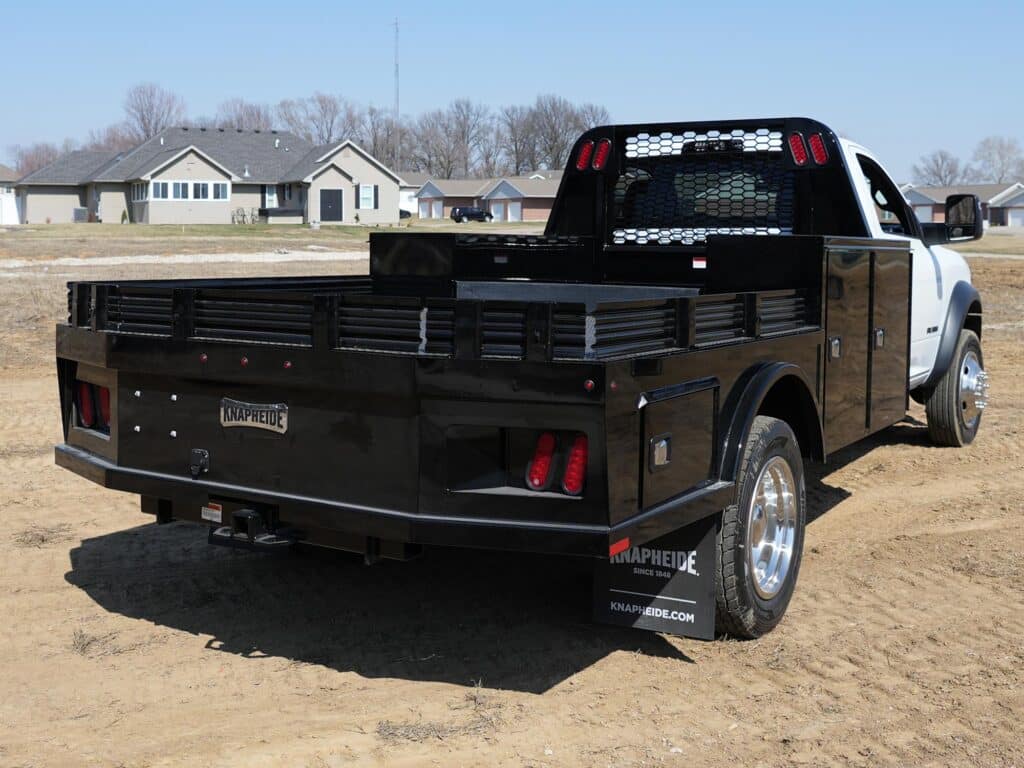

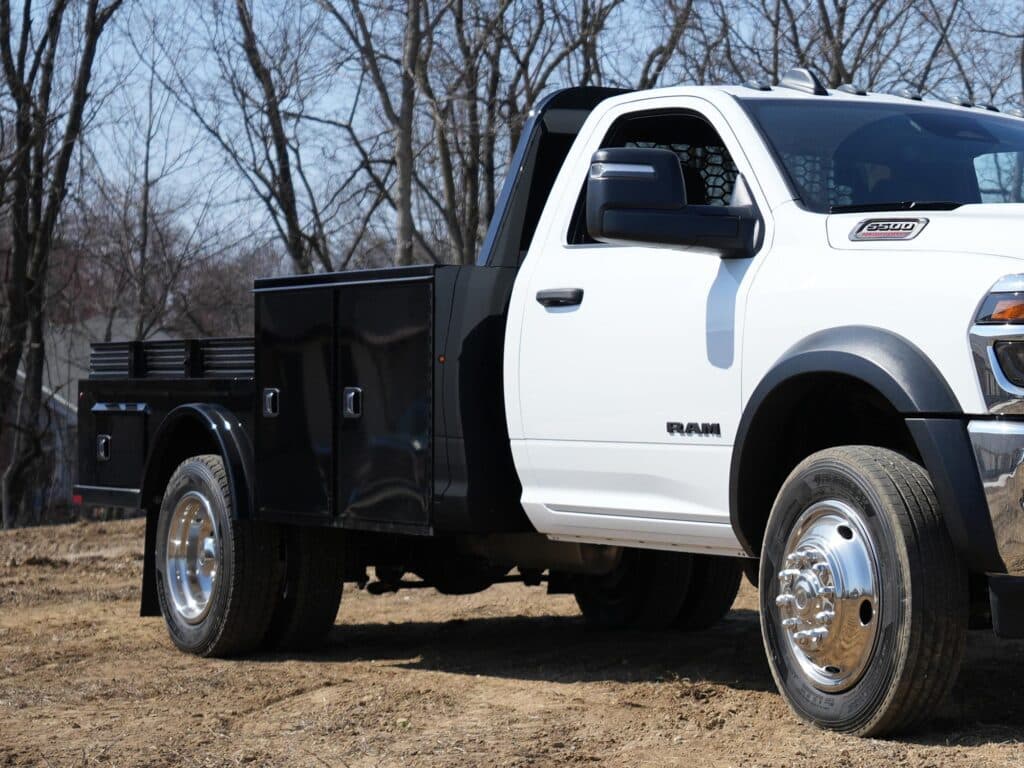

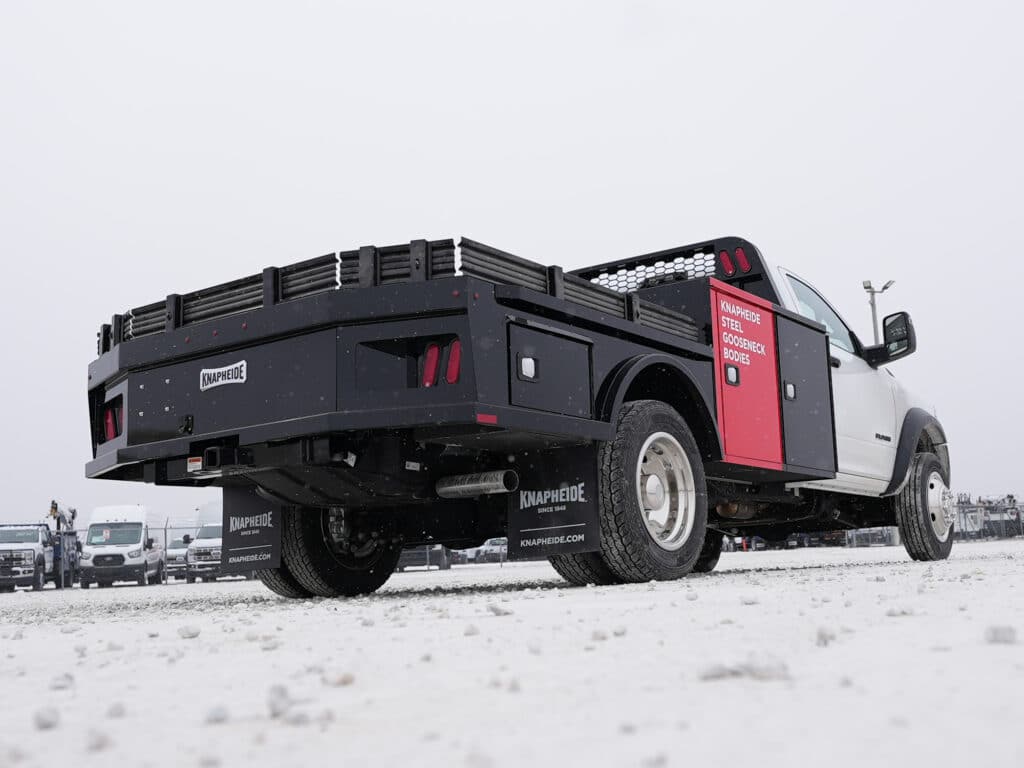

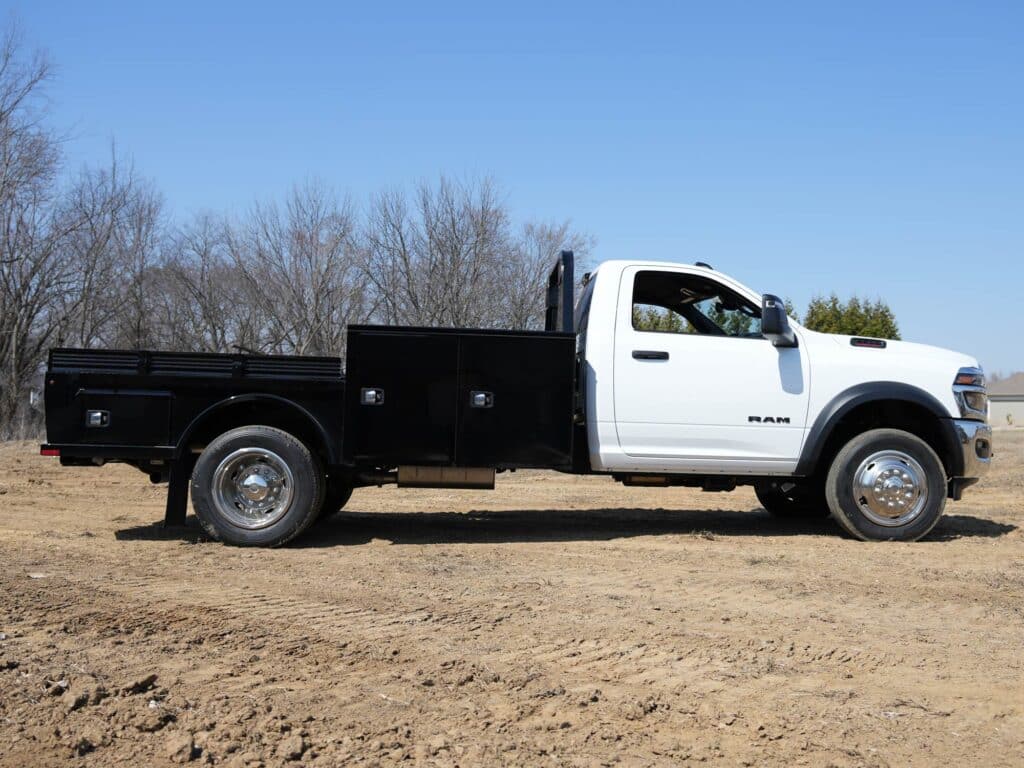

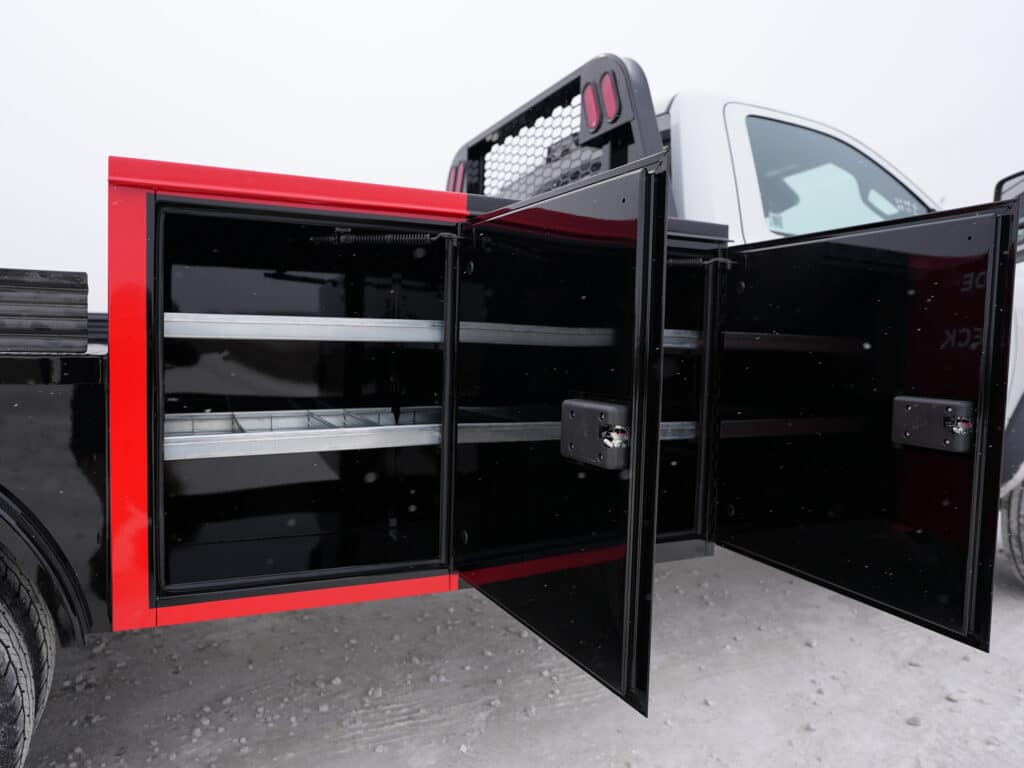

- Skirted flatbed with raised front compartments, underbody rear compartments, stake pockets, rub rails and screened bulkhead.
- Designed for Class 2 and above single and dual rear wheel cab chassis.
Interested?

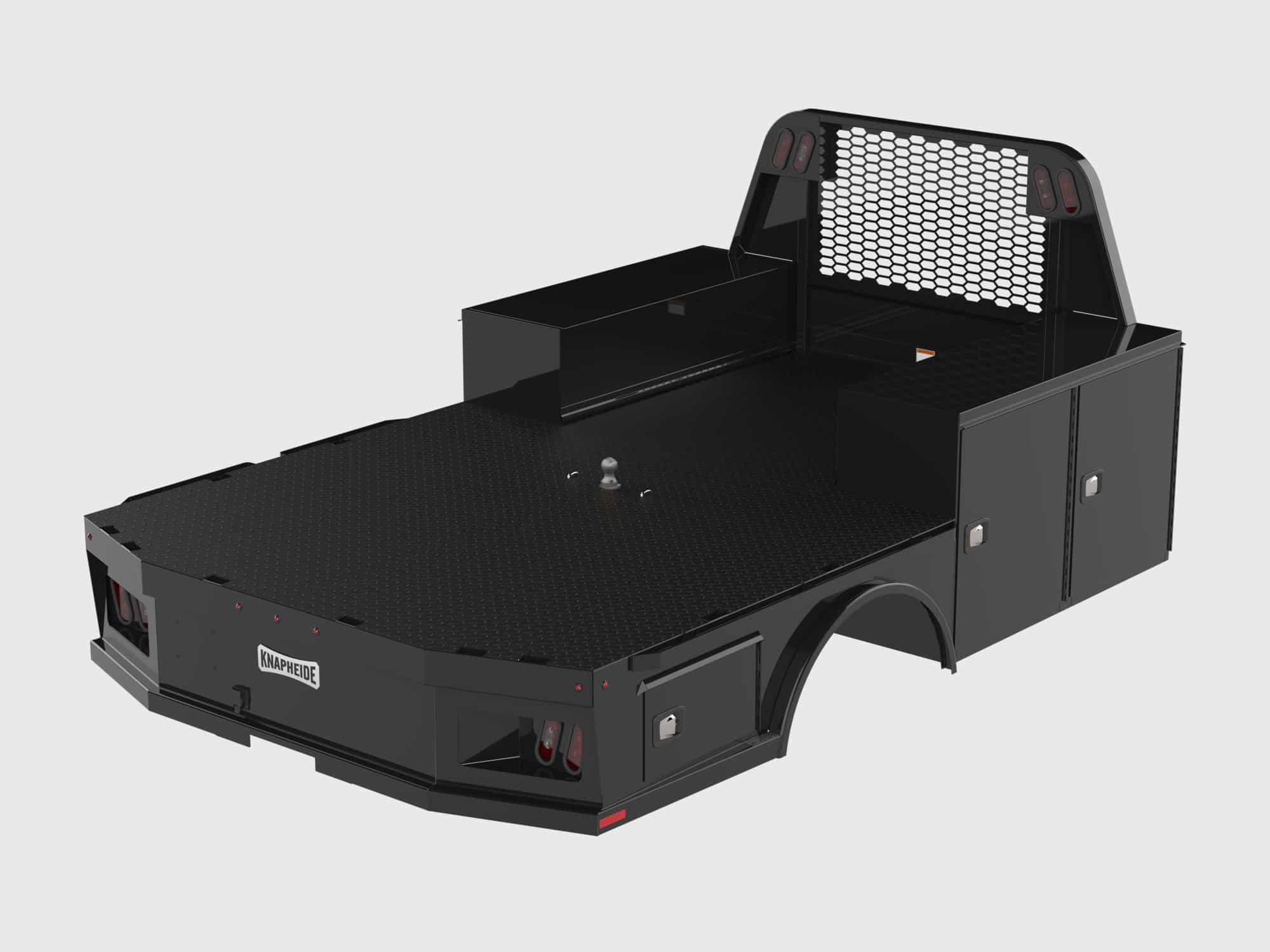

Steel PGTE Gooseneck Body
Features

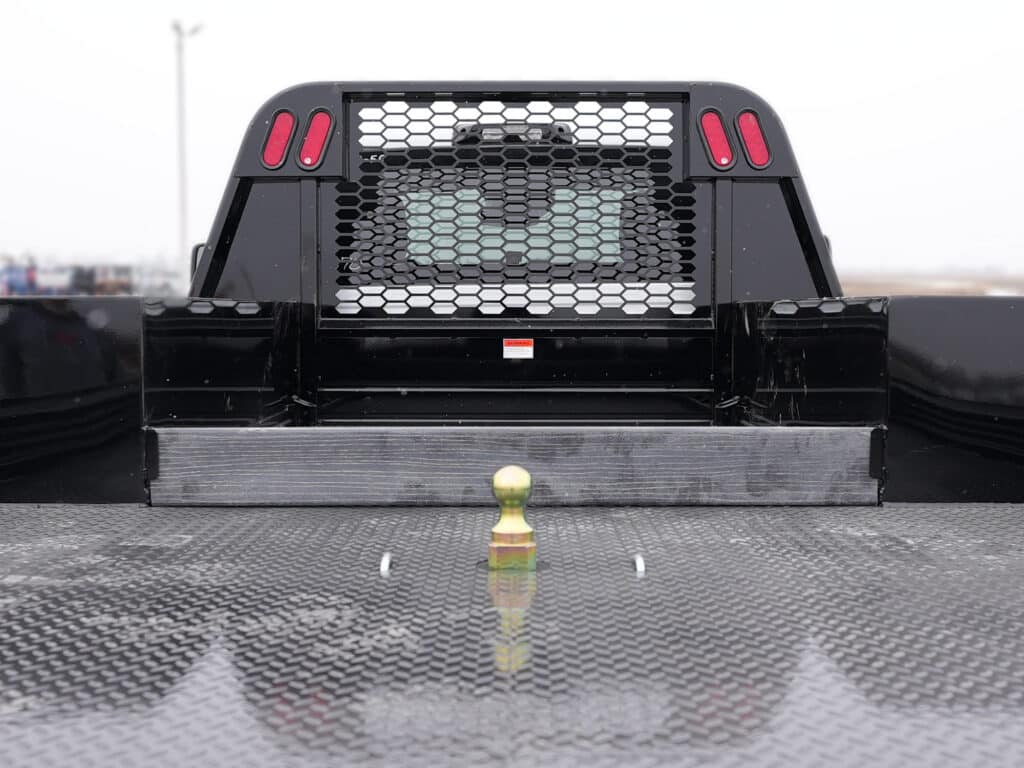

B&W Turnoverball® hitch
B&W Turnoverball® hitch rated for 30,000 lb. gross trailer weight and 7,500 tongue weight.
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Finish Paint
Durable oven-cured finish coat paint on top of Knapheide's exclusive electrodeposition prime paint for a clean overall appearance.

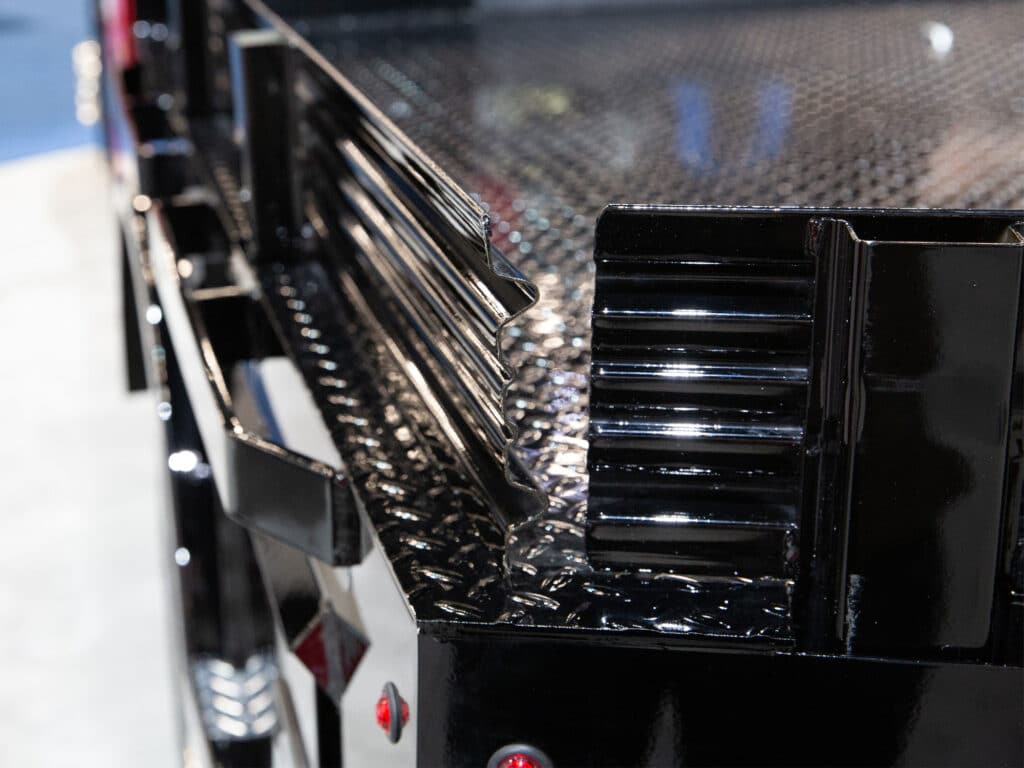

Rub Rails
Rub Rails installed on both sides of body for strap, side and stake pocket protection.
Bulkhead
Formed, integrated bulkhead with screened window and tapered design to conform to cab contours and increase operator visibility.
Stake Pockets
Reinforced internal stake pockets are sized to accept 2x4 lumber as well as a wide array of Knapheide side options
Door Seals
Triple contact door seals provides protection against the outside elements for your tools and equipment.
Stainless Steel Hinge
Continuous stainless steel hinge for unmatched security and corrosion resistance, backed by the Knapheide six year warranty.
Automotive Latch
Automotive quality, paddle-activated rotary style latches make opening and closing easy. Low maintenance and stylish, the latches are covered under Knapheide's six year warranty.
Internal Latch Cover
Latch interior cover secures the latch to the door and protects the internal latch mechanisms from being damaged. Appearance may vary.
Security Ring
Adjustable security ring strikers provide strength, security, and a weather tight seal throughout the entire life of the body.

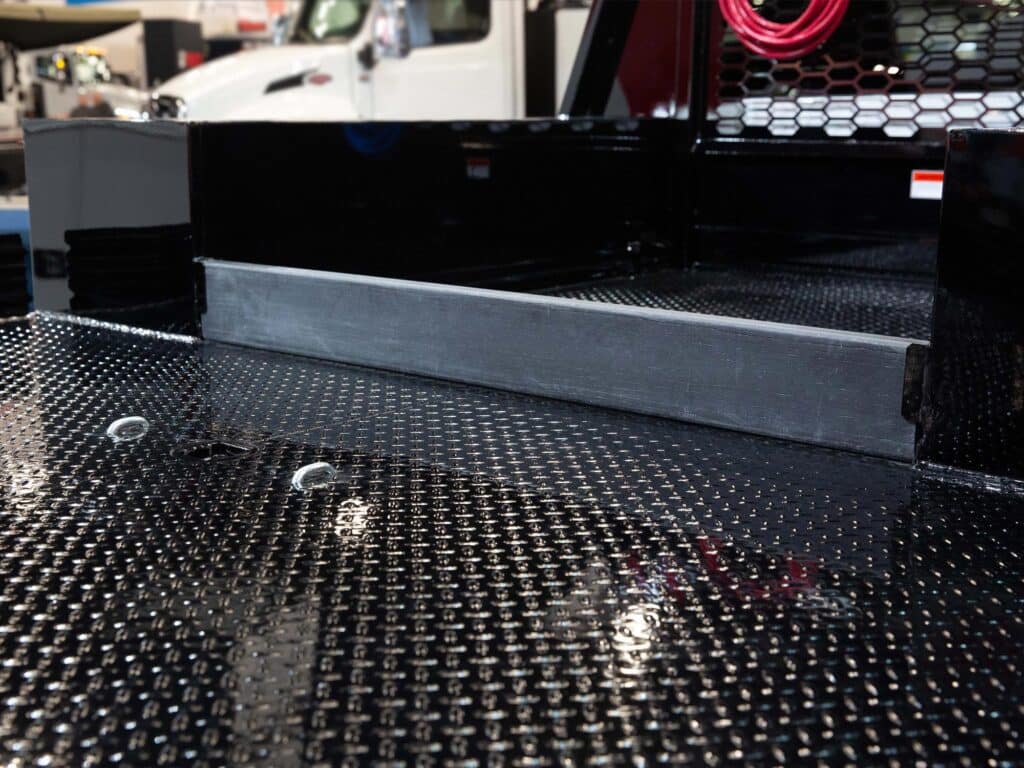

Flooring
Rugged 1/8"-thick treadplate floor that can withstand jobsite abuse.
Compartment Doors
Features double-shell, 20-gauge, two-sided A-40 galvanneal steel compartment doors
Door Retainer
Knapheide’s exclusive double-spring door retainer design that features maintenance-free operation for the life of the body. The all-black finish provides a clean appearance and is designed to resist wear and environmental exposure.
Marker Lights
All marker, clearance, and I.D. lights are LED.
LED Lights
Replacement for incandescent stop/tail/turn lights. Offering brighter light and a superior life span compared to incandescent lights.
Integrated Fuel Fill
Integrated driver side fuel fill for added convenience. Placement dependent upon length of body.
Body Options
Add-ons
Specifications
Standard Models
Actual Length Actual Width Chassis CA Model Net Weight (lbs) Long Sill Spacing Single Rear Wheel 7'-3" 84.25" 40" PGTE-738-F 940 38" 7'-6" 84.25" 42" PGTE-768-G 986 42" Dual Rear Wheel 8'-6" 84.25" 56" PGTE-868-F 1084 38" 8'-6" 84.25" 56" PGTE-868-R 1112 42" 8-9" 84.25" 56" PGTE-898-G 1133 42" 9'-10" 84.25" 60" PGTE-9108 1238 34" 8-6" 96" 56" PGTE-86-F 1182 38" 8-6" 96" 56" PGTE-86-R 1201 42" 8-9" 96" 56" PGTE-89-G 1189 42" 9'-10" 96" 60" PGTE-910 1360 34" 11'-10" 96" 84" PGTE-1110 1657 34" 9'-10" 96" 60" PGTE-910-MD 1375 34" 11'-10" 96" 84" PGTE-1110-MD 1672 34"
