Our Most Corrosion Resistant Compact Crane Truck
- 10 Year Limited Warranty guaranteeing no body rust-through, intact shelving, and fully operable door hinges, latches, and locks when used as directed.
- 6061 T6 and 5052 aluminum construction for greater payload capability and corrosion resistance.

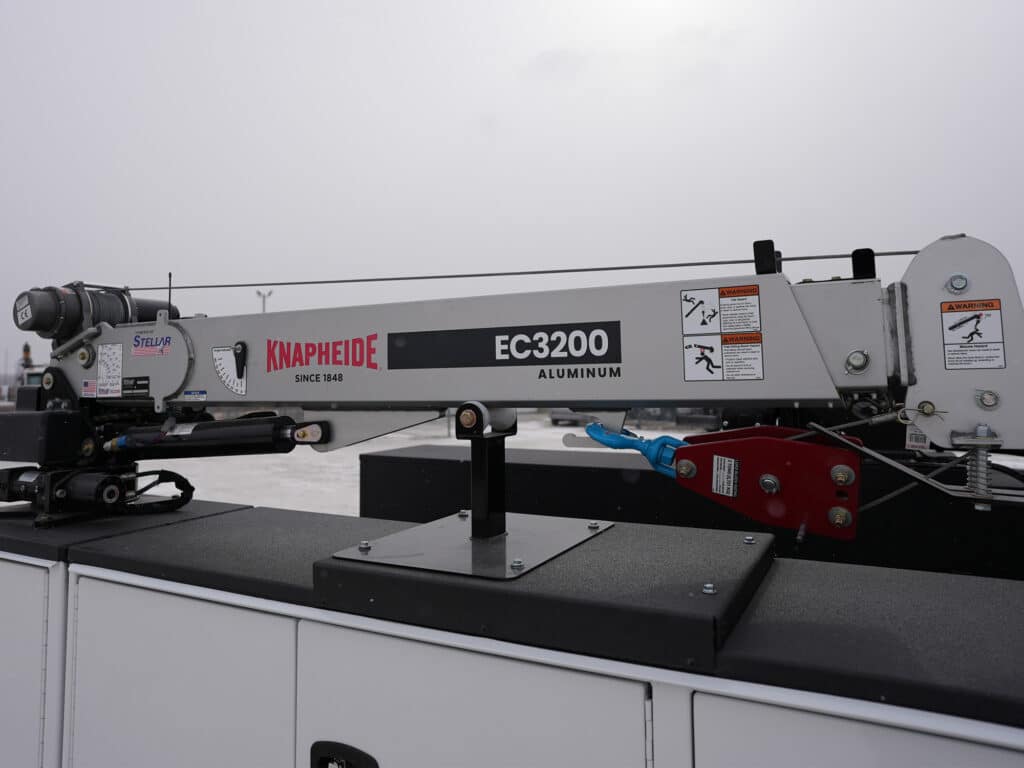

- Electric crane with 20-foot reach, 3,200 lb. lifting capacity, and outrigger included.
- All inclusive package with multi-surface bedliner, drawer units, storage containers, work lighting, and more.
- Designed for Class 3 through 5 dual rear wheel cab chassis.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!

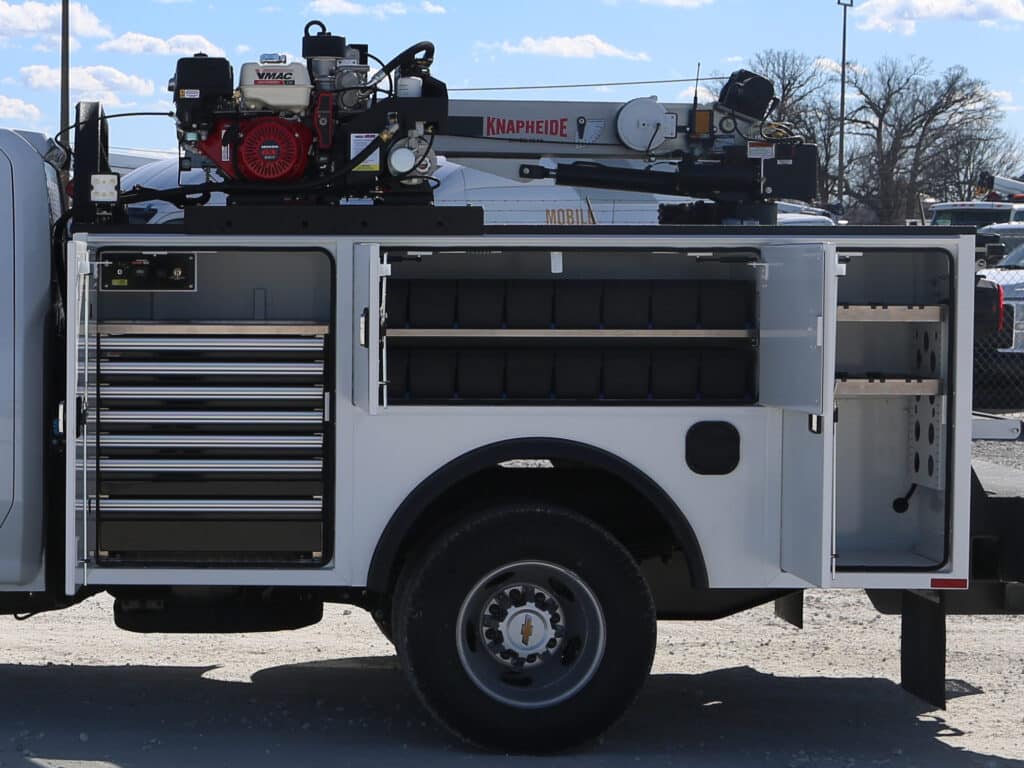

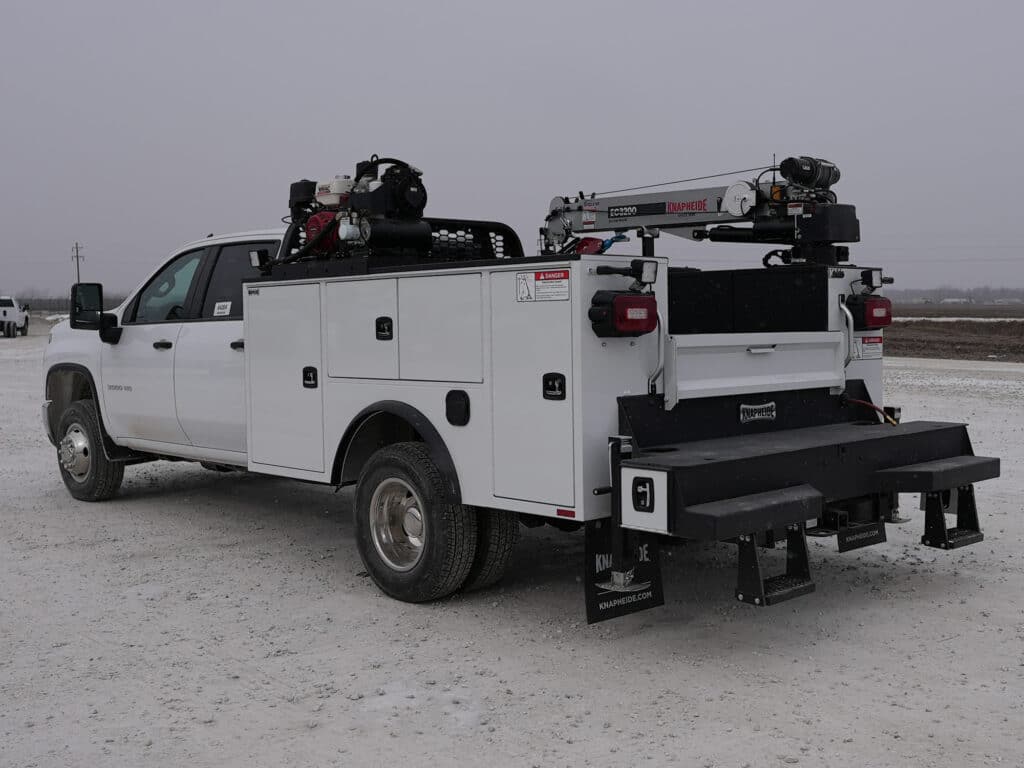

Aluminum KMS16 Mechanics Service Truck
Aluminum KMS16 Mechanics Service Truck
Features
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Undercoat
Under side of body receives additional corrosion protection with Knapheide's water-based undercoat.

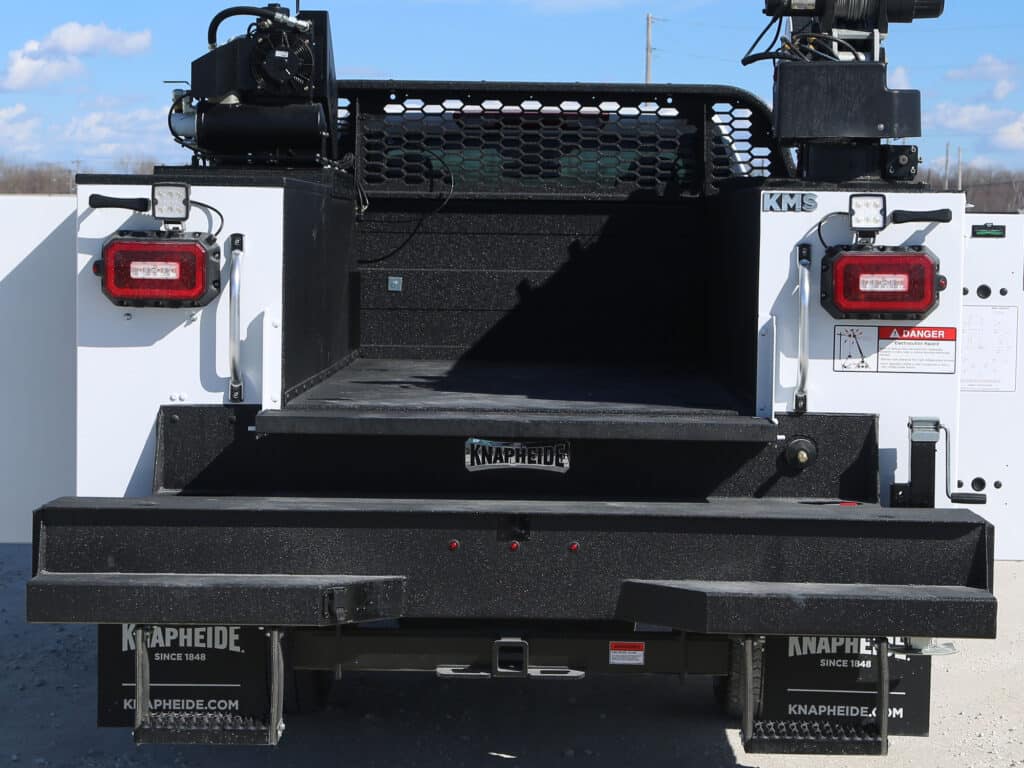

Cargo Area
Oversized cargo area for transporting large tools, equipment, and inventory. Commercial grade Knapliner spray-on bedliner applied to cargo floor, sides, compartment tops, bulkhead, and tailgate for maximum corrosion resistance.
Tailgate
12" high double panel slam latch tailgate with center latch and flat space for displaying company graphics.

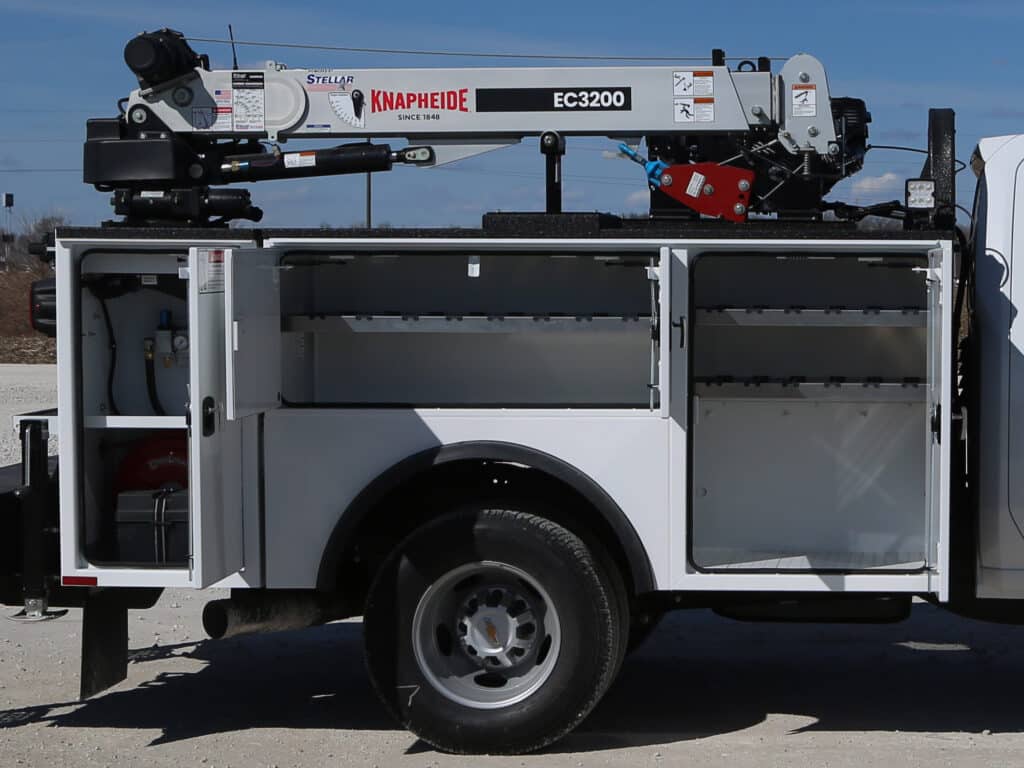

Aluminum Compartment Shelving
Street and curb side front vertical compartments contain two adjustable shelves with dividers. Curb side horizontal and rear vertical compartments include one adjustable shelf with dividers. All shelving has a 250-lb. capacity.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.
T-Handles
3 point T-Handles ensure your compartment doors stay closed and are individually lockable. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Master Locking System
Master Locking System locks down all of the side compartments on one side by utilizing a padlock, provides an additional layer of security.
Grab Handles
Two heavy duty aluminum grab handles located on both sides at the rear of the body for easy cargo access.
LED Tail Lights
These surface mounted rectangular tail lights feature bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices. Guards inside the rear compartments protect interior wiring and other related components. The tail light’s housing, orientation and placement on the body may vary.

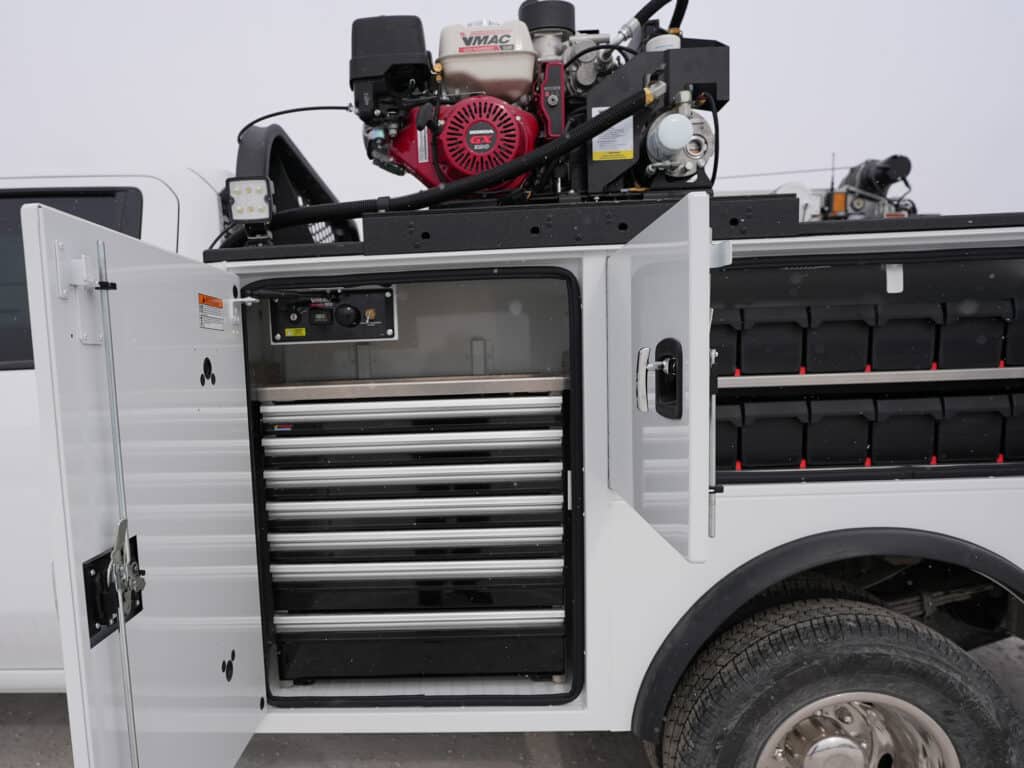

Small Part Storage Containers
Organizational unit located in the street side horizontal compartment for small parts and tool storage.
