The AKMT1 Aluminum Mechanics Truck combines the steel understructure and crane compartment of the KMT1, with military-grade aluminum for a lightweight, yet strong mechanics truck. These trucks are paired with top-notch cranes, compressors, and other equipment to create a turnkey field maintenance solution. We don’t cut corners with our Mechanics Trucks. They come loaded with standard features to maximize the value. Versatile enough to handle virtually any application, the AKMT1 enables technicians and mechanics in agriculture, construction, municipality and more to organize, securely store and transport their tools and equipment. The AKMT1 is designed to handle crane load capacities of up to 8,600 lbs. and is built to last longer and perform stronger than the competition. Rely on Knapheide’s AKMT1 Aluminum Mechanics Truck to maximize your efficiency and safety with mobile service operations.
10 Year Limited Warranty guaranteeing no body rust-through, intact shelving, and fully operable door hinges, latches, and locks when used as directed.
6061 T6 and 5052 aluminum construction for greater payload capability and corrosion resistance.
Hydraulic crane with 30-foot reach, 8,600 lb. lifting capacity, and outriggers included.
All inclusive package with multi-surface bedliner, drawer units, storage containers, work lighting, and more.
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Undercoat
Under side of body receives additional corrosion protection with Knapheide's water-based undercoat.
Crane Support Structure
Torq-isolator crane support system with torsion box understructure transfers force into the torsion box floor, not the side compartments eliminating the risk of damaging your crane body.

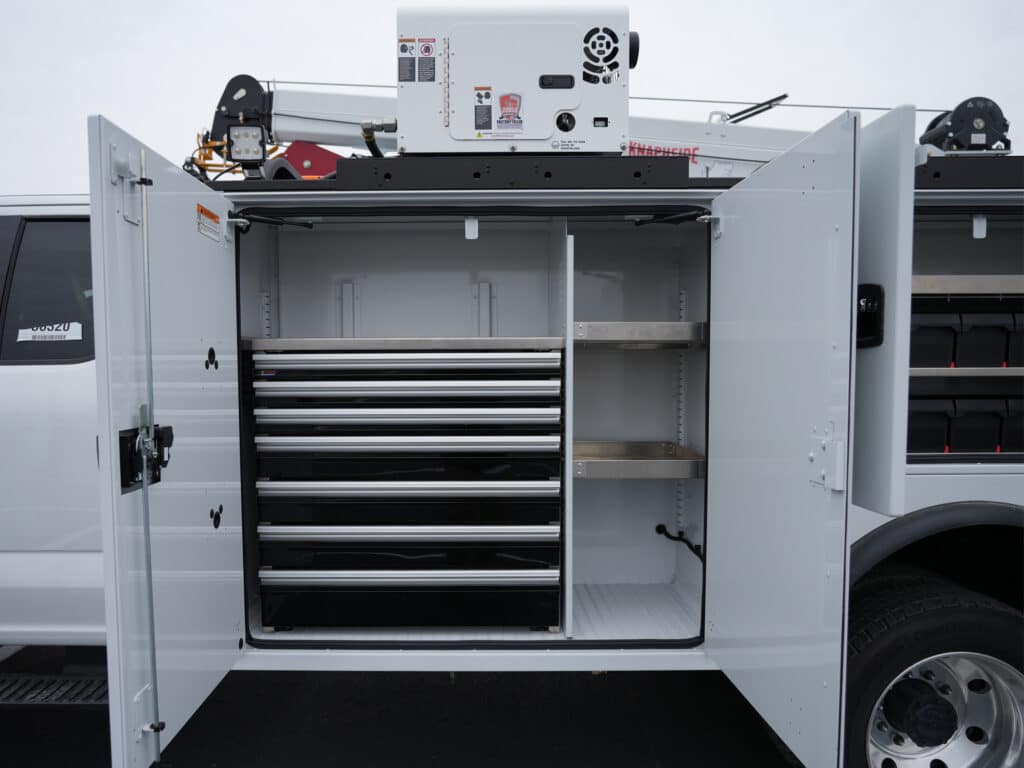

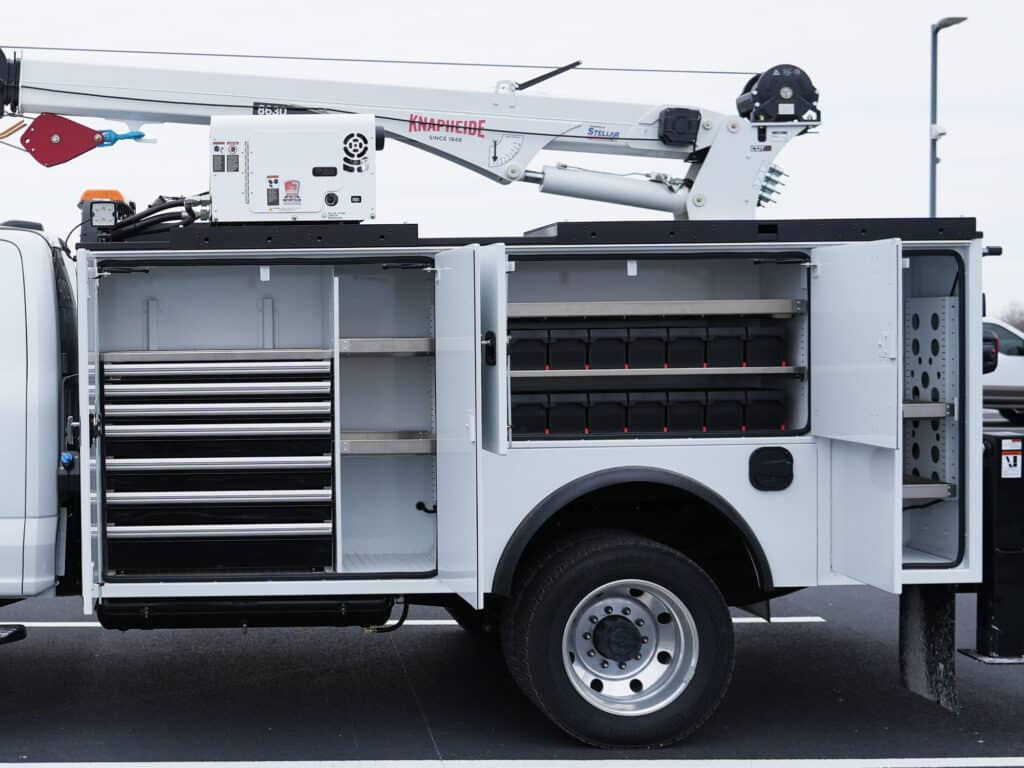

Mechanics Drawers
Street side front vertical compartment has a heavy duty 7 drawer unit with 3-3" high drawers, 3-5" high drawers, and 1-7" high drawer for organization of your tools.
Auxiliary Work Lights
4 halogen work lights installed, 1 on each rear light box, 1 at the base of the crane boom support, and 1 in the middle on top of the street side compartments.
Work Surface Bumper
21" (KMT1), 24" (KMT2), or 28" (KMT3) work surface bumper with lockable through compartment operated by stainless steel T-handles.

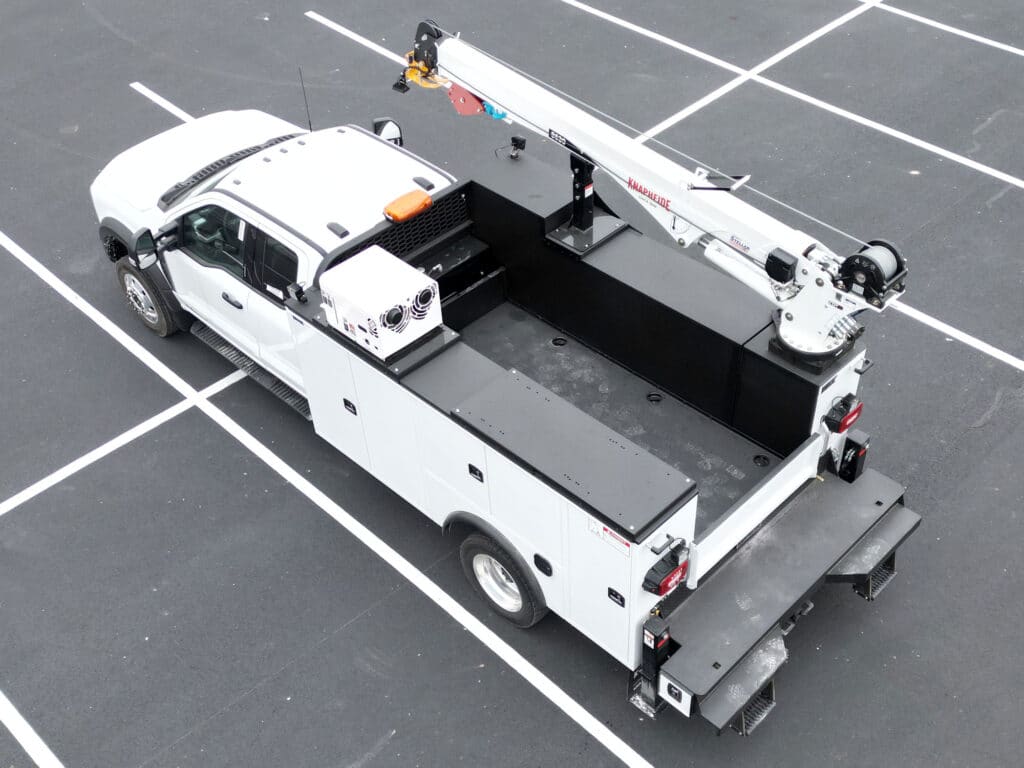

Cargo Area
Oversized cargo area for transporting large tools, equipment, and inventory. Commercial grade Knapliner spray-on bedliner applied to cargo floor, sides, compartment tops, bulkhead, and tailgate for maximum corrosion resistance.
Gas Bottle Retainer Kit
Curb side front vertical compartment has two gas bottle retainers with both the top and bottom panels vented for safe air circulation.

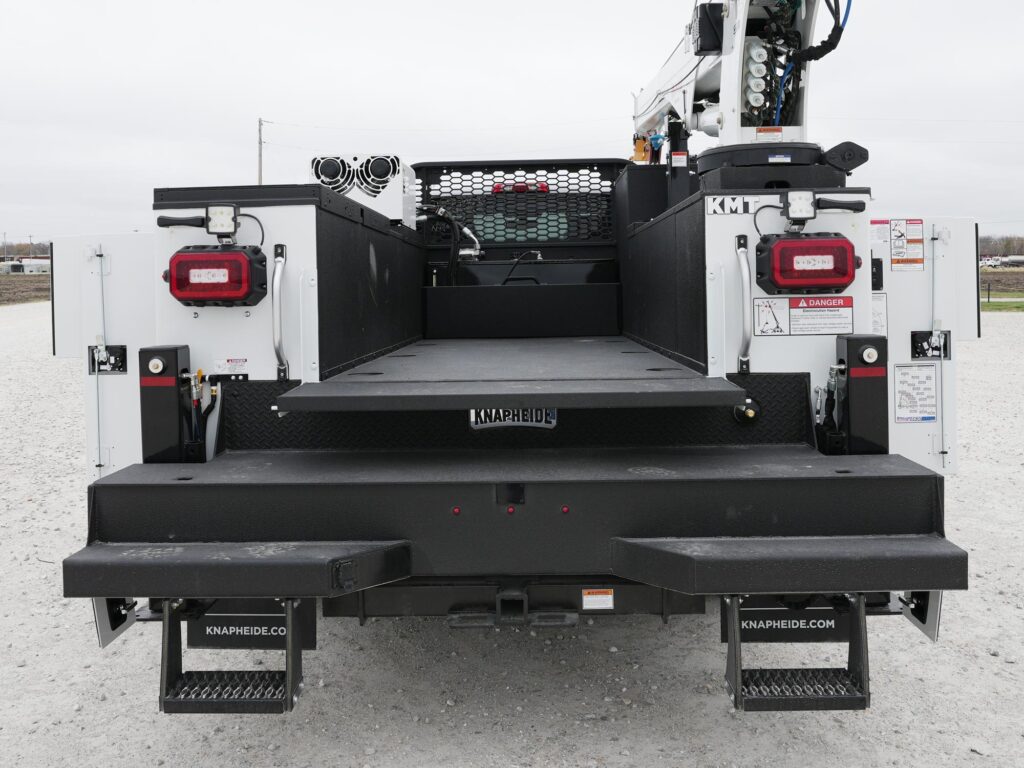

Tailgate
16" high double panel slam latch tailgate with center latch and flat space for displaying company graphics.

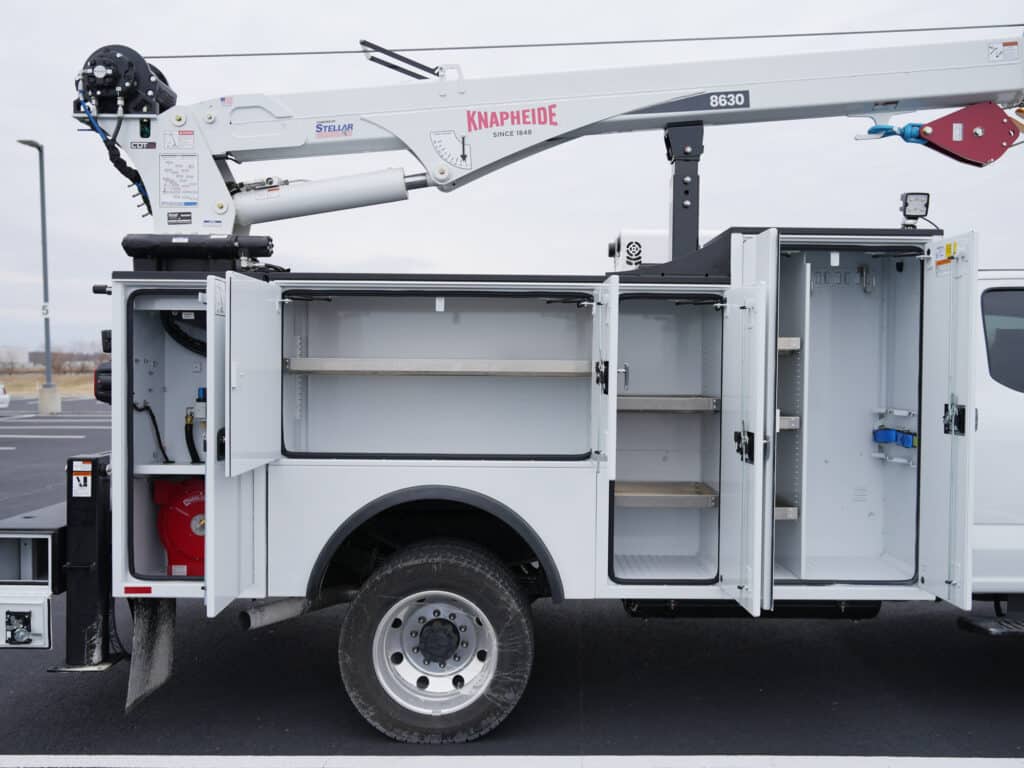

Aluminum Compartment Shelving
Street and curb side front vertical compartments contain two adjustable shelves with dividers. Curb side horizontal and rear vertical compartments include one adjustable shelf with dividers. All shelving has a 250-lb. capacity.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.
Cargo Tie Downs
Six recessed cargo D-ring tie downs installed in the floor of the cargo area with a 6,000 lb. maximum capacity.
Compressor
36 CFM Compressor with 50' x 1/2" hose reel and roller fairlead through the street side rear compartment, FLR system and underbody air tank included.

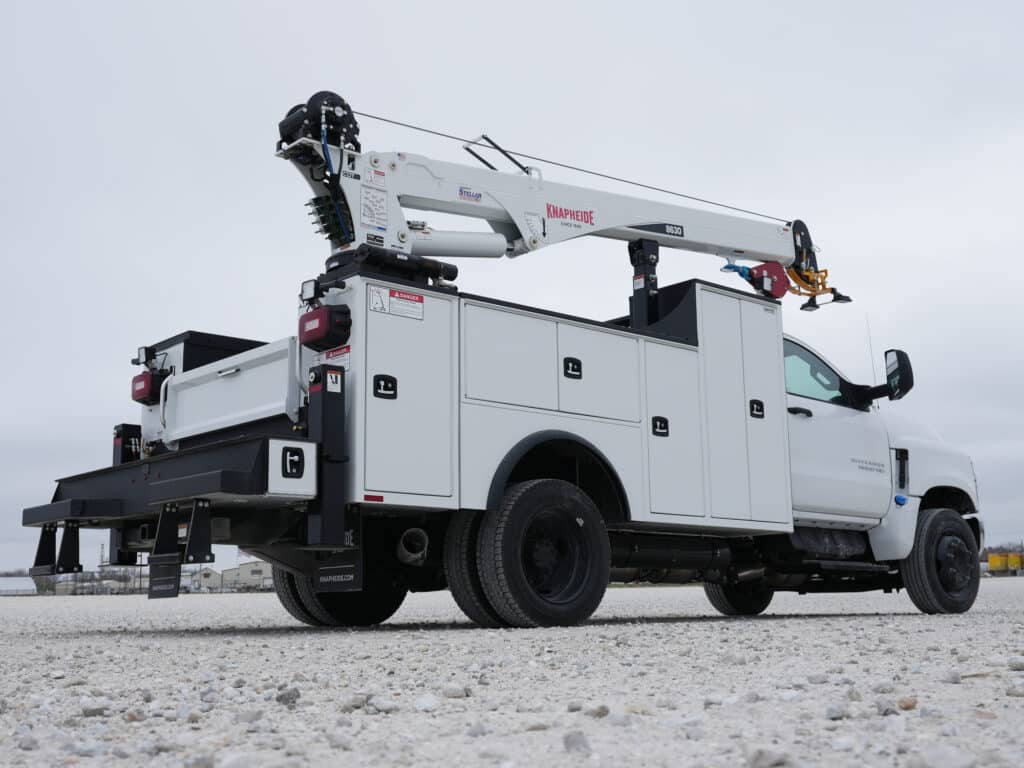

Hydraulic Crane
8,600 maximum lifting capacity and 30' hydraulic reach. Planetary winch speed at 60'/minute with 3/8" cable and double-acting cylinders with integral holding valves and filters. Crane comes with crane hook, snatch block, anti-two block device, boom support, RF wireless remote with back up pendant control, and in cab control panel included.
Strut Flex Steps
Two grip strut flex steps mounted on the bottom of the work surface bumper on both sides, allows for convenient and safe access to the cargo area.
Grab Handles
Two heavy duty aluminum grab handles located on both sides at the rear of the body for easy cargo access.
T-Handles
3 point T-Handles ensure your compartment doors stay closed and are individually lockable. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Master Locking System
Master Locking System locks down all of the side compartments on one side by utilizing a padlock, provides an additional layer of security.
Outriggers
Two hydraulic out and hydraulic down outriggers located at the rear of the crane body for stabilization during crane operations.
Cargo Swivel Hooks
Two swivel hooks located in the curb side front vertical compartment, hooks pivot 180 degrees and can be used to hang equipment.
Small Part Storage Containers
Organizational unit located in the street side horizontal compartment for small parts and tool storage.
LED Tail Lights
These surface mounted rectangular tail lights feature bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices. Guards inside the rear compartments protect interior wiring and other related components. The tail light’s housing, orientation and placement on the body may vary.
Cab Guard
Bolt-on cab guard with fully punched window for increased visibility
Body Options
Compartment Lighting
Rock Guards
Telescopic Sliding Roof
Power Locks
Codeable Padlock
Aluminum Mechanics Drawers
Steel Mechanics Drawers
Vise
Compartment Lighting
LED strip lighting ideal for Service, Utility or Gooseneck body. Controlled and operated via vehicle up fitter switch. Switch kit and door activated switch kits also available. Multiple lengths available.
Rock Guards
Aluminum trim added to front corners of Service Body for increased aesthetic. Aluminum treadplate option available.
Telescopic Sliding Roof
Designed to protect the contents of your cargo area from theft. Available in two or three piece section.
Power Locks
Available option for Service Bodies and KUV models using Ford E-Series or GM Express/Savana cutaway chassis. Standard feature on KUV models using Ford Transit or Ram ProMaster cutaway chassis. Integration with chassis keyless entry system (if equipped) allows for both body and cab to be operated with chassis key fob.
Codeable Padlock
Padlock learns your vehicle ignition key code and eliminates the need to carry both ignition key and padlock key. Pairing these devices with the master locking system is the most popular application.
Aluminum Mechanics Drawers
Aluminum alloy construction manufactured by C-Tech. Available in multiple configurations. Rated for maximum of 250 lbs. Appearance may vary.
Steel Mechanics Drawers
Steel construction, 7-drawer cabinet available in multiple configurations.
Vise
Choose from leading vise brand names and numerous mounting locations.
Add-ons
All-In-One Mobile Power Systems
Power Take Off Units
Power Inverters
Welders
Grill Guards
Steps
Liftgates
Trailer Hitches
Winches
Truck Bed Slides
Backup Alarms
Salt Spreaders and Brine Sprayers
Snow Plows
Fuel Transfer Tanks
Lube Skids
All-In-One Mobile Power Systems
Technicians rely on all-in-one mobile power systems on service trucks to offer a compact solution that combines a generator, air compressor, welder, and occasionally a battery charger into a single unit. This mobile setup takes up less space than individual sets of equipment and ensures dedicated power is delivered for electrical tools, welders, pneumatic devices, and various electronics. This makes the operator capable of performing a range of servicing tasks with greater efficiency on the jobsite.
Power Take Off Units
These transmission, engine or driveline mounted units harness mechanical power from the vehicle's running engine to operate many kinds of onboard equipment a technician may use on the jobsite. A PTO may power hydraulic systems in heavy lifting or pulling equipment like cranes, winches and hoists, air compressors used in pneumatic tools, welders, or produce electricity for generators to operate power tools. They are most popular in applications that demand high power output and efficiency.
Power Inverters
Technicians use power inverters on work vehicles for converting direct current (DC) electricity from the vehicle's battery into alternating current (AC) electricity to charge or operate power tools, laptops, cellphones, lighting, and other electronic devices one may use in field work. A dependable power source is essential for seamless on-the-go customer and business communication, as well as for efficiently executing installation, maintenance, and repair tasks that rely on electricity.
Welders
Fabricate or modify metal on-the-go with portable or mounted, fuel or engine driven welding equipment. This is useful for creating custom or replacing worn components, fixing structural issues, securing loose parts, or addressing damages to equipment and other items, whether for your own needs or as service to others. Knapheide can provide guidance, procure, and install the most suitable welder, factoring in materials frequently worked on, their thickness, and the technician's skill level.
Grill Guards
The primary purpose of grill guards is to provide protection to the vehicle's front end, especially the grill and headlights, from potential damage caused by collisions with animals, debris, or other objects. In rural or off-road settings, work vehicles are more susceptible to encounters with wildlife, and they help minimize the risk of damage. Grill guards also often come with mounting points, allowing work vehicles to be equipped with auxiliary lighting, winches, or other accessories.
Steps
Work vehicles are often large and elevated, making it challenging for individuals to access the cab or cargo area without assistance. Steps play a crucial role in providing a convenient means for drivers and operators to enter and exit while reducing the chances of physical strain or injury due to slipping or falling. The fixed or retractable accessories, available in varying lengths, allow for a more productive work environment for those interacting with these vehicles on a regular basis.
Liftgates
These rear or side mounted platforms assist in the loading and unloading of goods, typically heavy or large items, from ground level to the cargo area of the vehicle or vice versa. The incorporation of liftgates significantly enhances operational efficiency by streamlining these tasks, thereby minimizing the time and labor demands on users. They reduce the inherent risks associated with manual handling, contributing to a safer environment and mitigating the risk of injuries among personnel.
Trailer Hitches
Hitches are rear mounted connectors on commercial vehicles that allow operators to safely tow trailers filled with cargo. These are crucial because they significantly expand a vehicle's hauling capacity, enabling them to transport large quantities of goods, equipment, or materials needed for various business operations. Without hitches, commercial vehicles would be limited to their own bed capacity, hindering efficiency and potentially requiring additional trips.
Winches
Commercial vehicles, especially those engaging in off-road activities, may encounter challenging terrains or obstacles. A winch can be used for self-recovery or to assist other vehicles by providing the necessary pulling power to get them out of difficult situations. They can also be valuable in reaching, lifting or positioning a range of loads including heavy equipment, holding up structures temporarily, or handling large or bulk amounts of materials around the jobsite.
Truck Bed Slides
Truck bed slides are drawers or trays that fit into the bed or cargo area of a vehicle and slide outward to allow users better access to contents inside. The advantages of these accessories extend beyond convenience. They promote safety by mitigating the risks of slips, trips, and falls associated with climbing into the truck bed. Additionally, they enhance efficiency by allowing workers to swiftly access tools and materials, thereby expediting tasks and improving productivity.
Backup Alarms
Backup alarms, also known as reversing alarms, are crucial safety devices for vehicles, especially those with large blind spots or frequently operating in areas with high foot traffic. They emit an audible warning sound when the vehicle is in reverse gear, alerting nearby pedestrians, cyclists, and other drivers of the vehicle's movement and potential danger zone. This helps to prevent collisions and accidents, particularly in situations where the driver might not have a clear view behind them. Knapheide and it's partners upfit many of the heavy equipment, industries and vehicles where backup alarms are an integral piece of safety equipment.
Salt Spreaders and Brine Sprayers
Spreaders and sprayers efficiently distribute dry granular salt or liquid brine onto roads and paved surfaces, preventing the formation of ice and enhancing traction. These specialized devices improve safety by reducing the risk of accidents caused by slipping or sliding and are more efficient than manual spreading methods. They are crucial for those responsible for maintaining roadways during winter weather, ensuring that travel remains safe and efficient even in challenging conditions.
Snow Plows
When others count on you during winter weather conditions, you can count on Knapheide Truck Equipment Center to provide you with the highest quality snow removal products like pushers, plows, and blades that will help you make easy work of the toughest snow removal jobs.
Fuel Transfer Tanks
Adding a transfer tank to your commercial vehicle can transform it into a portable fuel station. These are often mounted in a bed or cargo area and are used to transport extra diesel or other fuels to allow extended operating range, convenient on-site refueling for heavy equipment, and eliminates the need for frequent trips to the gas station--saving time and money.
Lube Skids
Add mobile maintenance and lubrication convenience, portability and versatility to your commercial vehicle with the addition of a lube skid. These units are typically mounted within a commercial vehicle's cargo and are designed for servicing other commercial vehicles in the field with grease, lubricants and other fluids.
