Unbeatable Flatbed Features for Contractors
- 3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
- Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
- Value-Master X Platform Truck Body outfitted with toolboxes, material rack, removable solid sides, and drop down tailgate.
- Models are 95.75-inches wide and available in 9 to 14-foot lengths.
- Designed for Class 3 and above dual rear wheel cab chassis.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!
Contractor Platform Body
Contractor Platform Body
Features
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Bumper
ICC Bumper for under-ride protection and for compliance with FMVSS regulations.

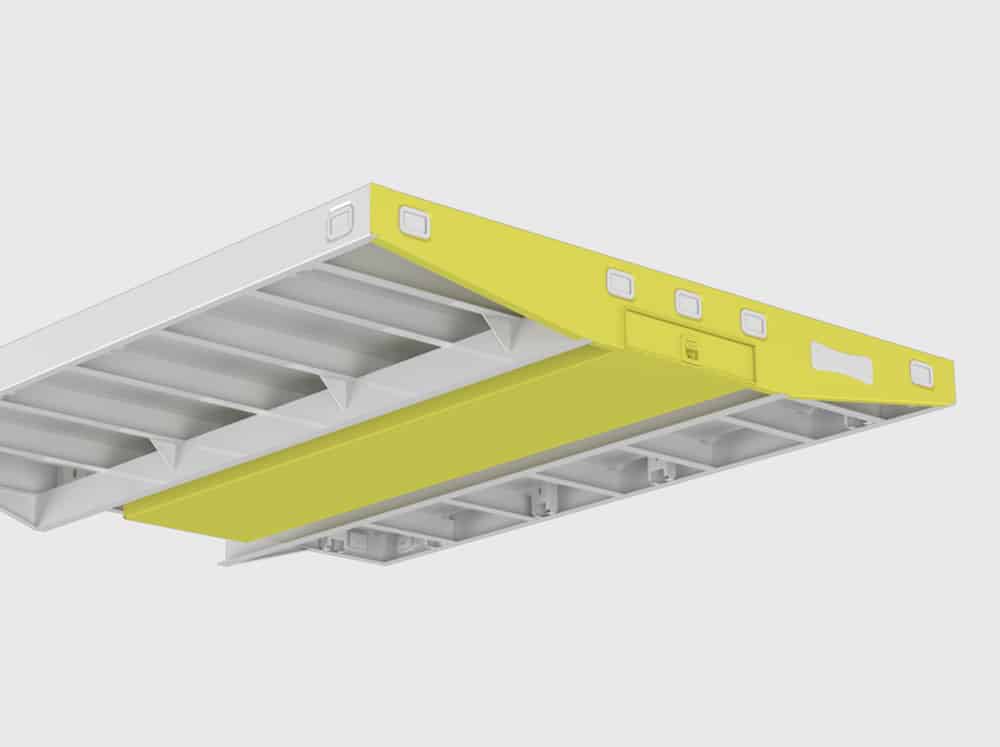

Platform Base
PVMX platform base is comprised of 11-gauge high tensile strength steel cross sills on 18” centers with 5” structural C-Channel long sills
Toolboxes
Above-body and underbody toolboxes on each side of the body. (Toolbox size is dependent on platform length). Toolboxes include double panel door construction and 3-point T-handle latches.
Side and End Rails
Side and end rails constructed of formed 12-gauge, high-strength steel (50,000 psi)
Aluminum Treadplate Rock Guards
Installed on the front of each underbody toolbox for added protection

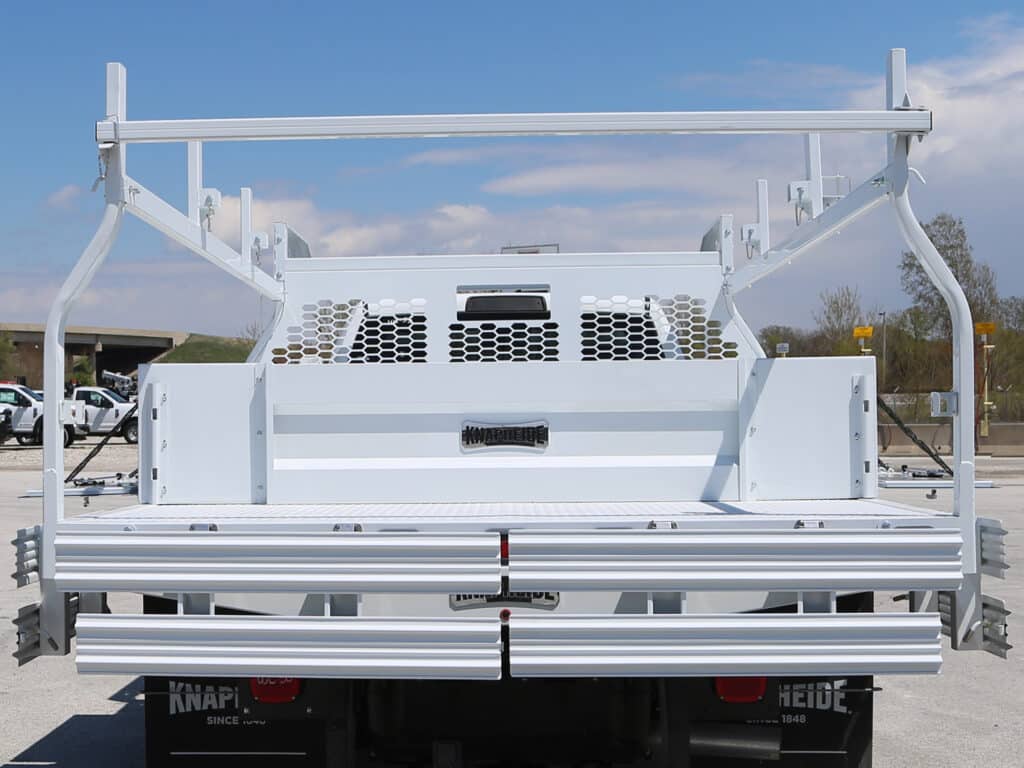

Screened Window Bulkhead
Contoured to conform to the lines of the cab while offering maximum visibility
LED Clearance and Marker Lights
Bright output for increased visibility and additional safety

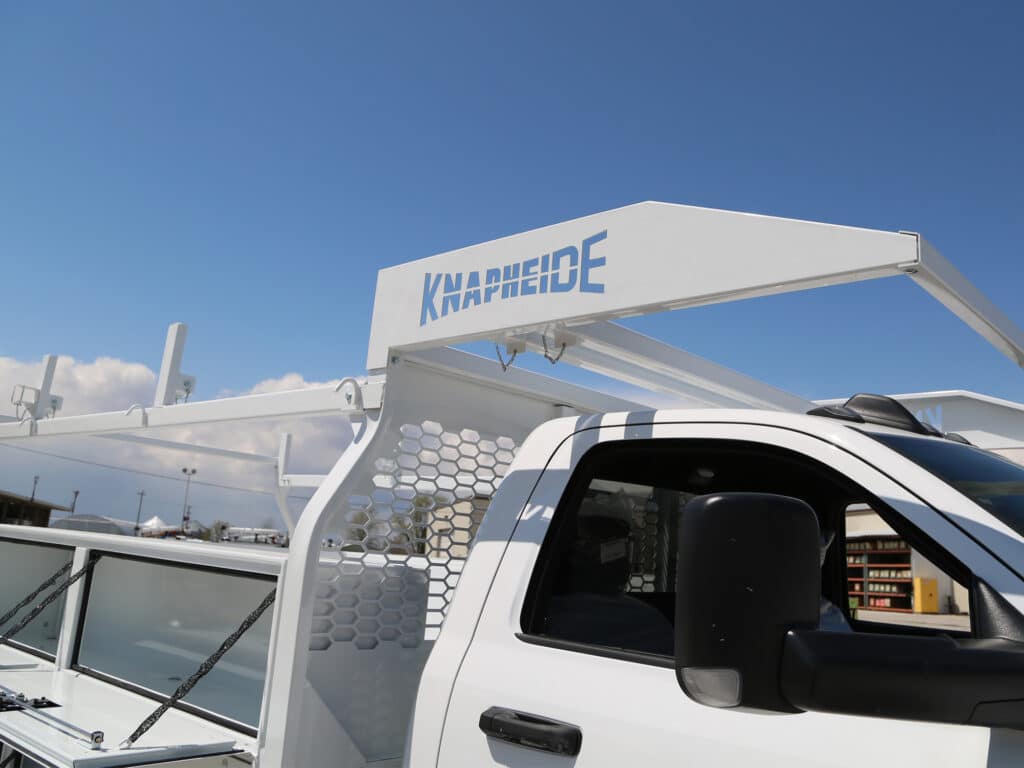

Material Rack
Rated for 1,500 lb., is side forklift loadable, has swing-away rear cross bar and removable intermediate cross bars for loading taller items, and tie down hooks to help secure your items

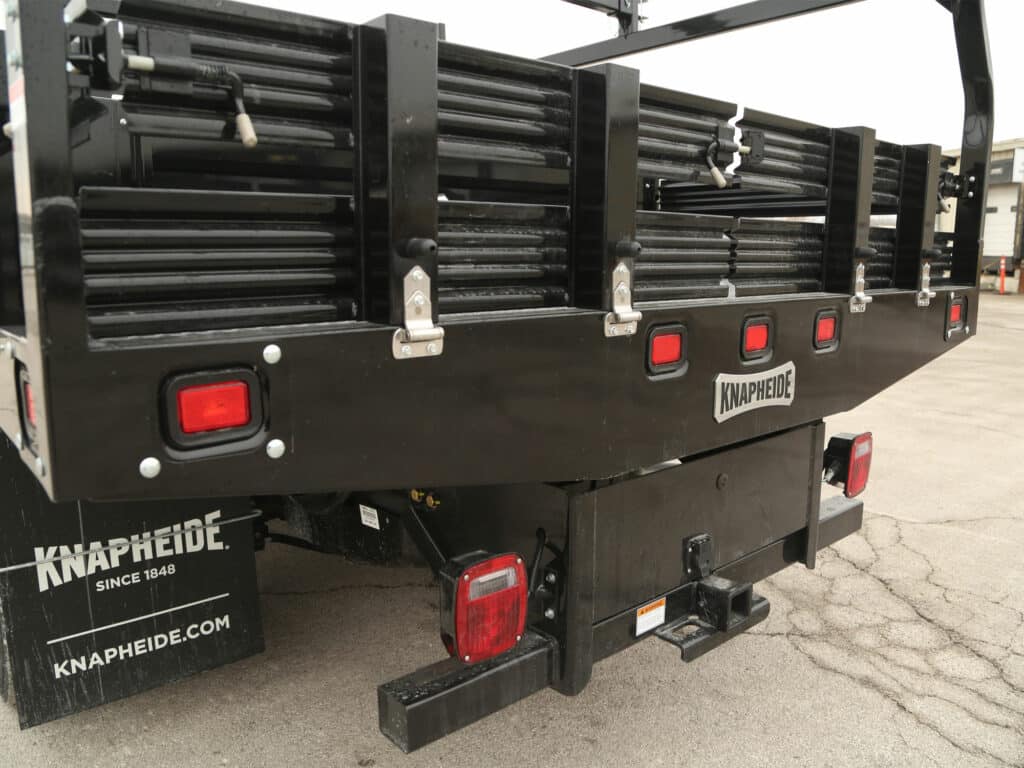

Side and Rear Stake Racks
Hinged to drop down 180 degrees for maximum access. Rear stake rack is separated into two sections for additional functionality
Full Height Tailboard
Located at the rear of the above body toolboxes to separate the bed space
Specifications
Standard Models
Length Treadplate Floor - Model Treadplate Floor - Net Weight (lbs) Polyboard Floor - Model Polyboard Floor - Net Weight (lbs) Dual Rear Wheel 9' PCON-9-B 1875 PCONP-9-B 1972 9' PCON-9-W 1875 PCONP-9-W 1972 9' PCON-9-MD-B 1902 PCONP-9-MD-B 2002 9' PCON-9-MD-W 1902 PCONP-9-MD-W 2002 12' PCON-12-B 2351 PCONP-12-B 2508 12' PCON-12-W 2351 PCONP-12-W 2508 12' PCON-12-MD-B 2380 PCONP-12-MD-B 2537 12' PCON-12-MD-W 2380 PCONP-12-MD-W 2537 14' PCON-14-B 2760 PCONP-14-B 2923 14' PCON-14-W 2760 PCONP-14-W 2923 14' PCON-14-MD-B 2810 PCONP-14-MD-B 2969 14' PCON-14-MD-W 2810 PCONP-14-MD-W 2969 W - Knap White Finish, B - Black Finish, MD - Medium Duty Chassis Application
Gallery
Images are shown for illustrative purposes only and may not be an exact representation of the product.
