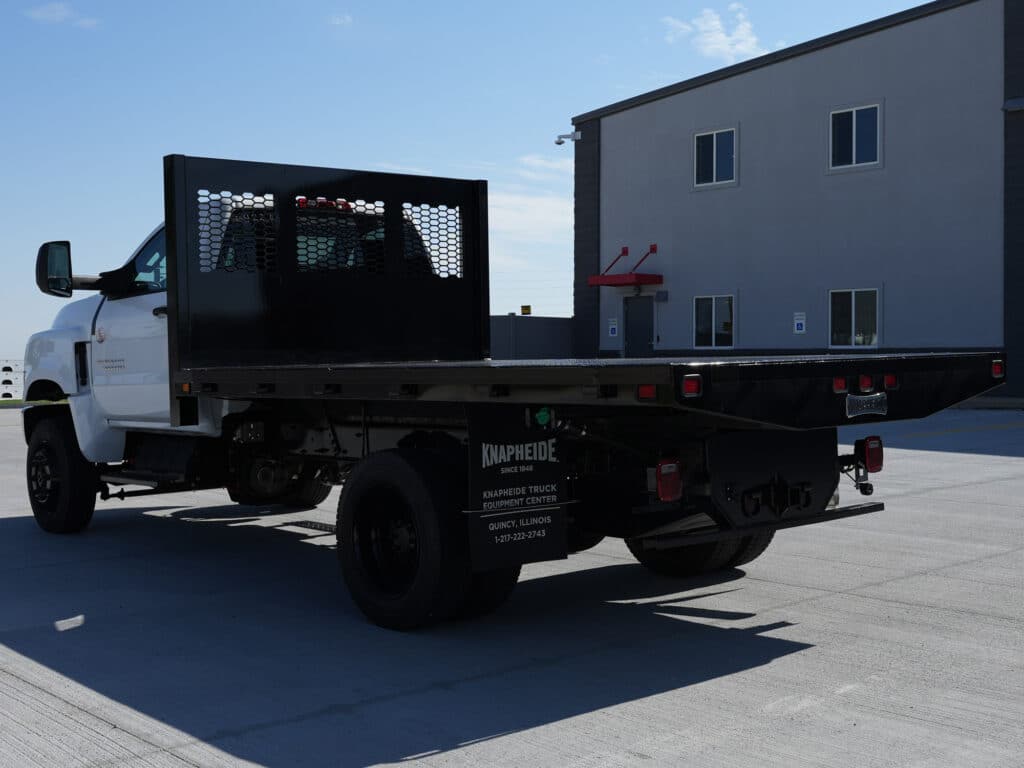

Heavy-Hauler Junior flatbed truck bodies are designed with versatility in mind to meet various vocational needs. The Heavy-Hauler Junior Platform Body is equipped with external rub rails, integrated tie down points and stake pockets, along with a heavy-duty bulkhead and robust flooring options. Add steel stake sides to a Heavy-Hauler Junior Platform Body to transition into a dedicated Stake Body, or choose a hoist for dumping applications. The Heavy-Hauler Junior offers all the features you need to tackle tough jobs without breaking your budget.
“KnapPack” has been added to your cart.
BIG PLATFORM FEATURES IN AN ECONOMICAL FLATBED
3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
Multiple flooring materials, side options, bulkhead styles, storage and cargo restraining solutions offered.
Models are available in 94 and 100-inch widths and 9 to 26-foot lengths.
Designed for Class 2 and above dual rear wheel cab chassis.
Add products, submit your request, and we'll get in touch with more info and a personalized quote!
Heavy-Hauler Junior Platform Body
Body Options
BH Bulkhead
BHR and BHRB Bulkhead
BHRT Bulkhead
BHT Bulkhead
Stake Racks
Landscaper Racks
Refuse Sides
Grain Sides
Swing-Out Rear Gates
Cargo Tie Downs
Rope Hooks
Underbody Sliding Tie Down Channel
Knapheide LED Tail Lights
Knapheide Tool Boxes
KnapPack
ICC Bumper
Receiver Hitch
Add-ons
Power Take Off Units
Grill Guards
Steps
Liftgates
Dump Hoists
Dump Bed Vibrators
Trailer Hitches
Loading Ramps
Winches
Backup Alarms
Salt Spreaders and Brine Sprayers
Snow Plows
Tarp Systems
Heavy-Hauler Junior Platform Body
Features
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Flooring
Choose from either 1/8" treadplate, 10 gauge smooth steel, or 2" pine flooring (shown), whichever best fits your application.
Long Sill Construction
Structural long sills with gusseted cross members | 5” on 12’ and shorter platforms | 7” on 14’ and longer platforms
Cross Member Structure
Formed, 11-gauge high strength (50,000 psi) cross members are spaced on 16” centers for 12’ and shorter platforms and 12” centers on 14’ and longer platforms.
Side and End Rails
Side and end rails constructed of formed 12-gauge high strength steel (50,000 psi).
Stake Pockets
Reinforced heavy duty stake pockets are sized to accept 2x4 lumber as well as a wide array of Knapheide side options.
Rub Rails
External rub rail constructed of 3/8” steel located on both sides and across the rear of the platform.
Undercoat
Under side of body receives additional corrosion protection with Knapheide's water-based undercoat.
Recessed LED Lighting
Recessed LED RID lights located on the front and back corners of the side rails and rear tail skirt for increased visibility.
Finish Paint
Durable oven-cured finish coat paint on top of Knapheide's exclusive electrodeposition prime paint for a clean overall appearance.
Body Options
BH Bulkhead
BHR and BHRB Bulkhead
BHRT Bulkhead
BHT Bulkhead
Stake Racks
Landscaper Racks
Refuse Sides
Grain Sides
Swing-Out Rear Gates
Cargo Tie Downs
Rope Hooks
Underbody Sliding Tie Down Channel
Knapheide LED Tail Lights
Knapheide Tool Boxes
KnapPack
ICC Bumper
Receiver Hitch
BH Bulkhead
Rectangular drop-in style bulkhead for pairing with stake racks. Compatible with all platforms.
BHR and BHRB Bulkhead
Rectangular bulkhead, heavy duty reinforced. Weld-on (BHR) and bolt-on (BHRB) style with punched window. Compatible with all platforms.
Bulkhead material: 11-gauge high strength steel (102 Series 56” models are 10-gauge)
Vertical post material: 11-gauge high strength steel outer post, 3” structural channel inner post
BHRT Bulkhead
Rectangular, weld-on style bulkhead with tapered corners and reinforced design. Compatible with all Knapheide Platforms.
BHT Bulkhead
Tapered, drop-in style bulkhead with punched window. Compatible with platforms without racks or grain sides.
Stake Racks
Steel construction available in 28" or 40" heights. Choose from interlocking clip style or simple quiet latch connection systems.
Landscaper Racks
Turn a Value-Master X or Cargo-Hauler Platform Body (96 Series) into a Landscaper Body. Easily remove side and rear section to utilize as flatbed. Multiple lengths available.
Refuse Sides
Available in multiple lengths. Used in variety of applications.
Grain Sides
Grain sides include solid sides, fronts, and 3 piece rears with integrated tarp rail. Metering chute, tailgate and rear gate options available upon request.
Swing-Out Rear Gates
Swing-out, stake rack style rear gates with heavy duty hinges. Gates swing 270 degrees, and are lockable in open position.
Cargo Tie Downs
Swivel-style, D-ring tie-downs rated at 2,000 lbs. Ideal for securing large or heavy cargo during transit.
Rope Hooks
Constructed of 1/2" diameter steel rod and welded on the front side of cross sills.
Underbody Sliding Tie Down Channel
Perfect for securing large or heavy cargo. Steel construction. Designed for use with Buyers Products 4" sliding winch.
Knapheide LED Tail Lights
Upgrade the factory tail lights of your OEM chassis to the Knapheide alternative with bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices.
Knapheide Tool Boxes
Knapheide tool boxes are a great supplement to many types of truck bodies. They are lockable and come in multiple sizes for mounting above and under the body to fulfill additional storage needs.
KnapPack
Practical storage solution seated between body and cab for Dump or Platform bodies. Choose from straight or tapered design.
ICC Bumper
ICC style under-ride prevention bumper constructed of 4" channel to dimensions shown. Intended to be welded to truck frame or platform long sills. Dimensions dependent upon chassis manufacturer.
Receiver Hitch
Combination Class IV or Class V hitch and ICC bumper for platform or dump applications. Trailer weight rating, tongue weight and appearance will differ depending on body or chassis.
Add-ons
Power Take Off Units
Grill Guards
Steps
Liftgates
Dump Hoists
Dump Bed Vibrators
Trailer Hitches
Loading Ramps
Winches
Backup Alarms
Salt Spreaders and Brine Sprayers
Snow Plows
Tarp Systems
Power Take Off Units
Transfer your engine's mechanical power to auxiliary hydraulic driven equipment such as generators, air compressors, pumps operating cranes and dump beds, and other job essential machinery.
Grill Guards
Safeguard the front end of your vehicle's body and other components from impact damage or provide mounting points for fastening additional accessories such as auxiliary lights and winches.
Steps
Make climbing in and out of your vehicle's cab easier or roof mounted cargo more accessible with fixed or retractable solutions of varying styles, material construction and lengths to suit your needs.
Liftgates
Efficiently and safely elevate heavy or oversized items via a platform from ground level to the cargo area of a vehicle, eliminating the necessity for manual lifting or forklift use.
Dump Hoists
Hydraulic cylinders power the tilting of a truck's bed to unload loose or bulk materials such as construction debris, vegetative waste, and aggregate used on job sites or taken to disposal locations.
Dump Bed Vibrators
Dislodge clumped or stuck snow, ice or loose bulk materials like gravel, dirt, or mulch via a mechanism that shakes and facilitates the flow of contents from a truck bed without manual intervention.
Trailer Hitches
Establish a reliable and secure connection between your vehicle and the trailers it will tow by selecting a solution tailored to your specific application and the weight you intend to haul.
Loading Ramps
Load and unload items by utilizing an inclined platform that spans from the ground to your vehicle's cargo area, creating a treaded pathway for walking and smooth rolling of carts and dollies.
Winches
Recover stuck or immobilized vehicles, traverse off-road obstacles, and pull or hoist heavy objects using a front or rear-mounted, electric or hydraulic-driven hook and pulley system.
Backup Alarms
Backup alarms provide an added layer of safety while maneuvering heavy vehicles and equipment. Not only are backup alarms a good idea, in some areas and instances, they're a mandatory piece of safety equipment.
Salt Spreaders and Brine Sprayers
Distribute salt or de-icing agents to melt ice or sand to add traction on surfaces using models equipped with the spreading pattern and material holding capacity for accurate and uniform application.
Snow Plows
Clear accumulated snow from roads, driveways, parking lots, or other surfaces with the blade type, size, material, and other features most suitable for your vehicle and usage.
Tarp Systems
These manually or automatically deployed and retracted truck bed coverings shield contents from weather conditions and prevent the ejection of loose materials like rocks or mulch during transit.
