BIG PLATFORM FEATURES IN AN ECONOMICAL FLATBED

  • 3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
  • Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.

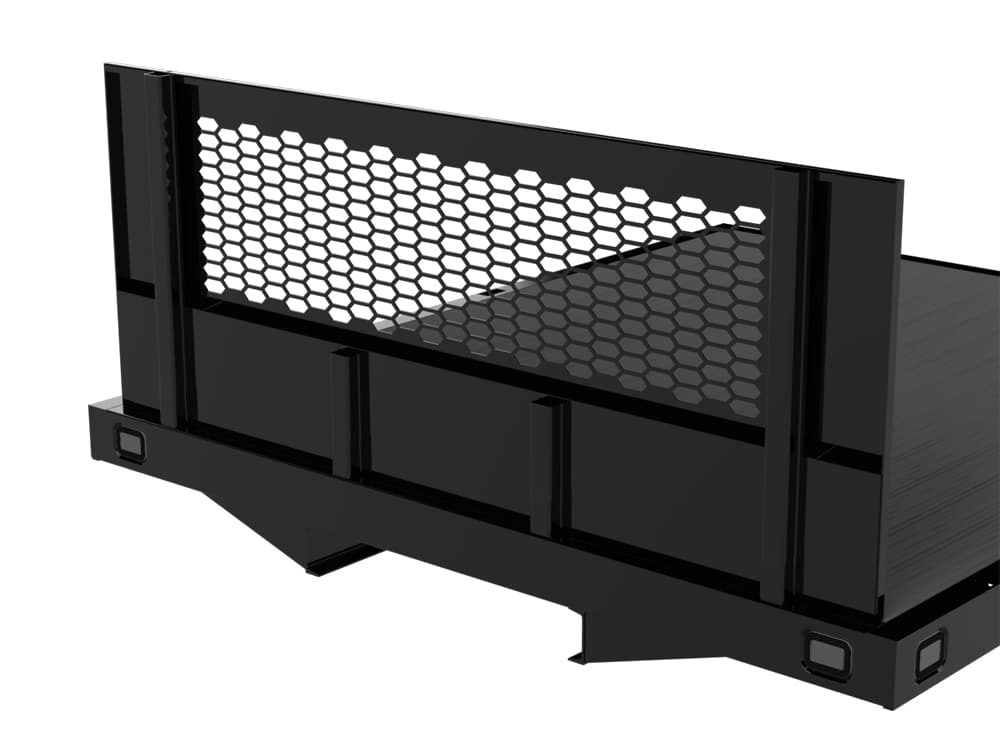

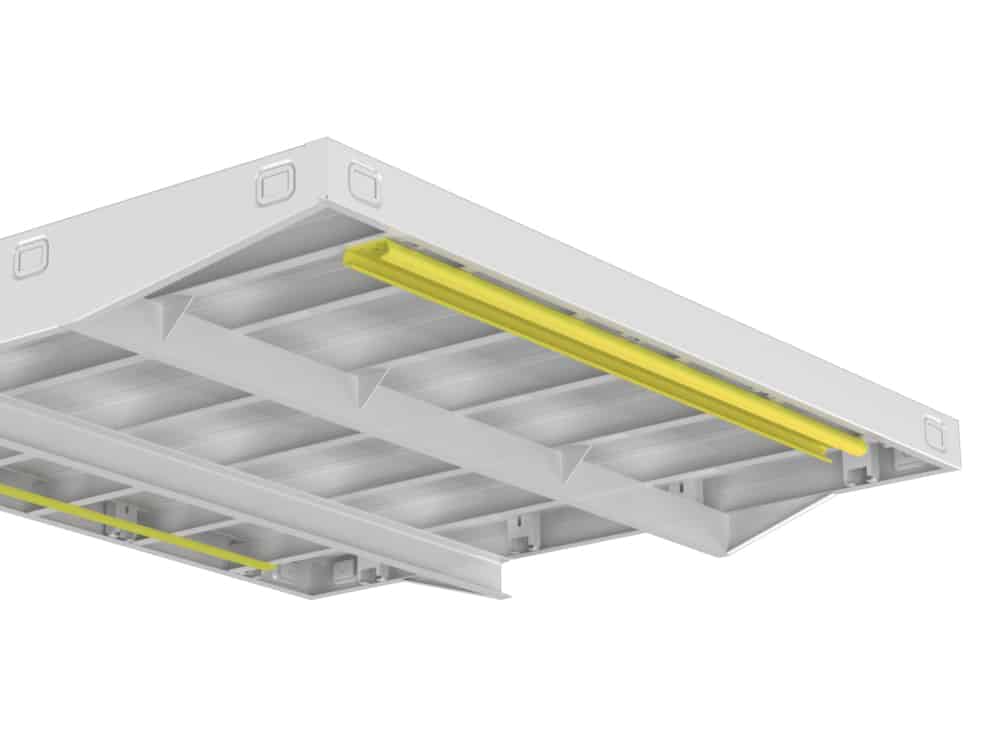

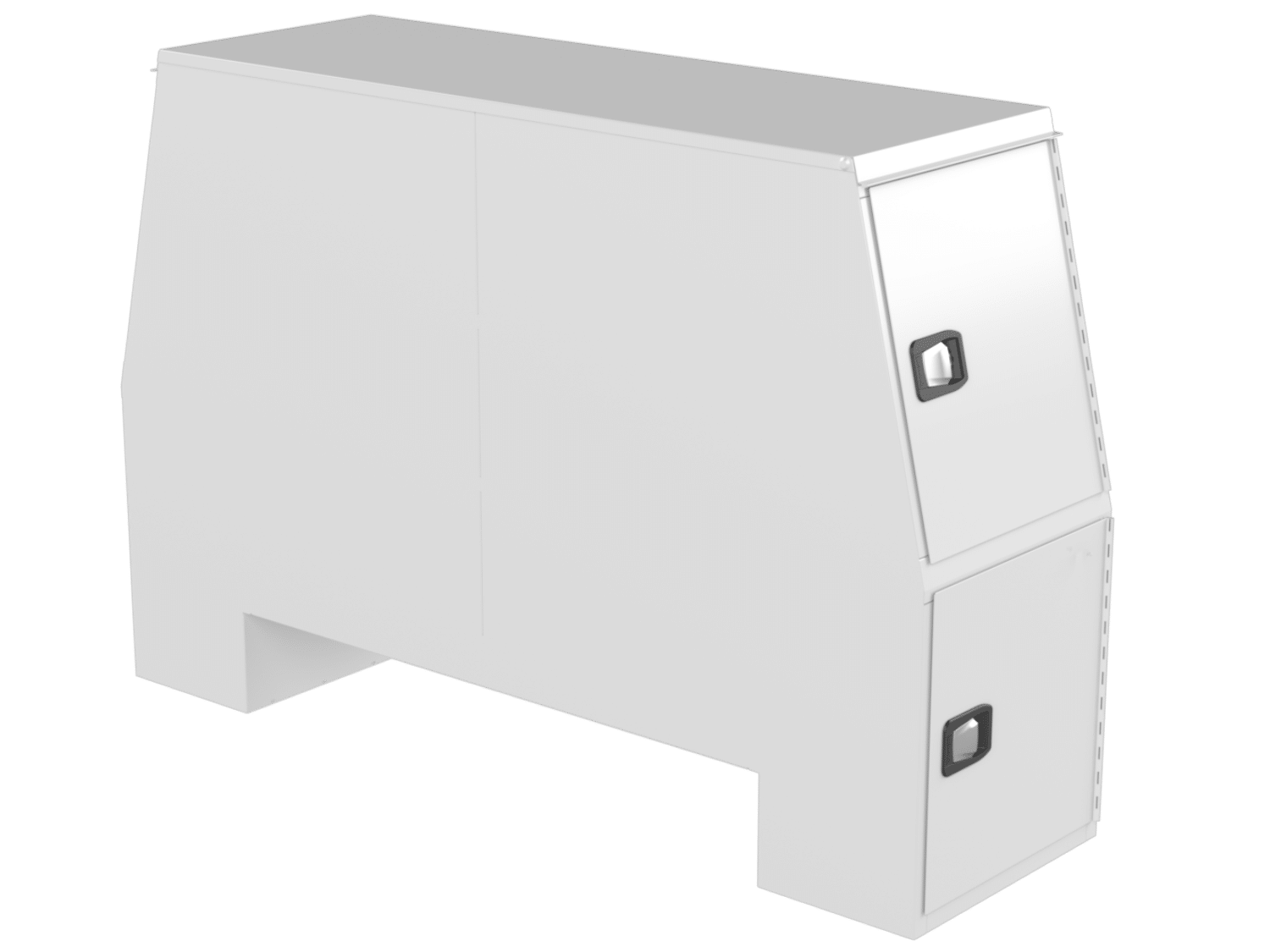

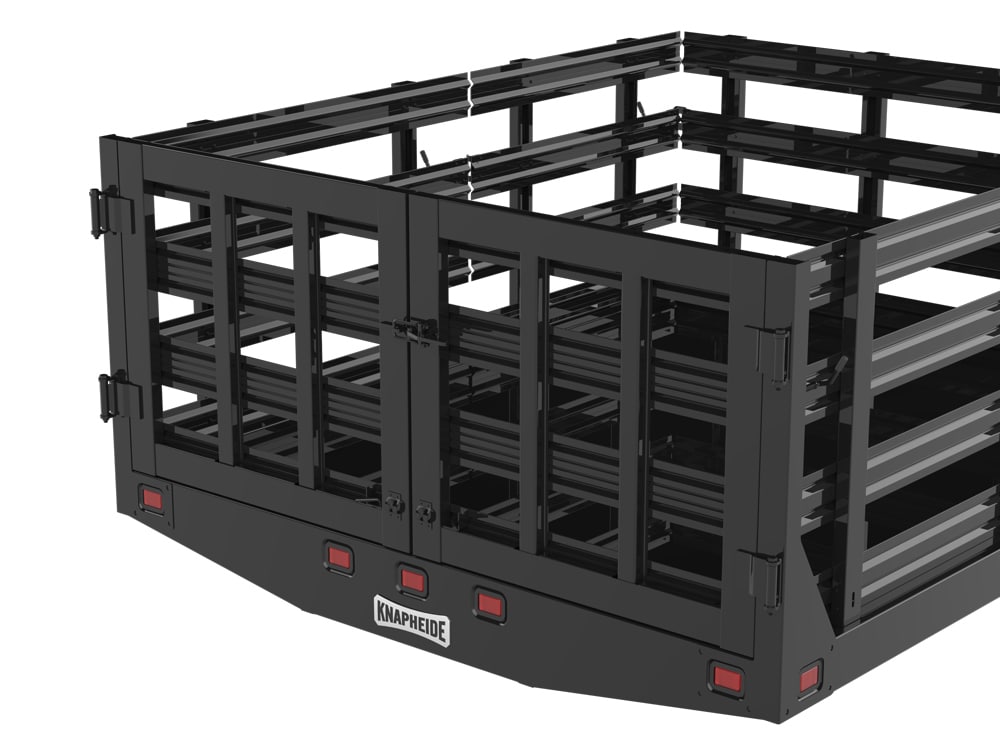

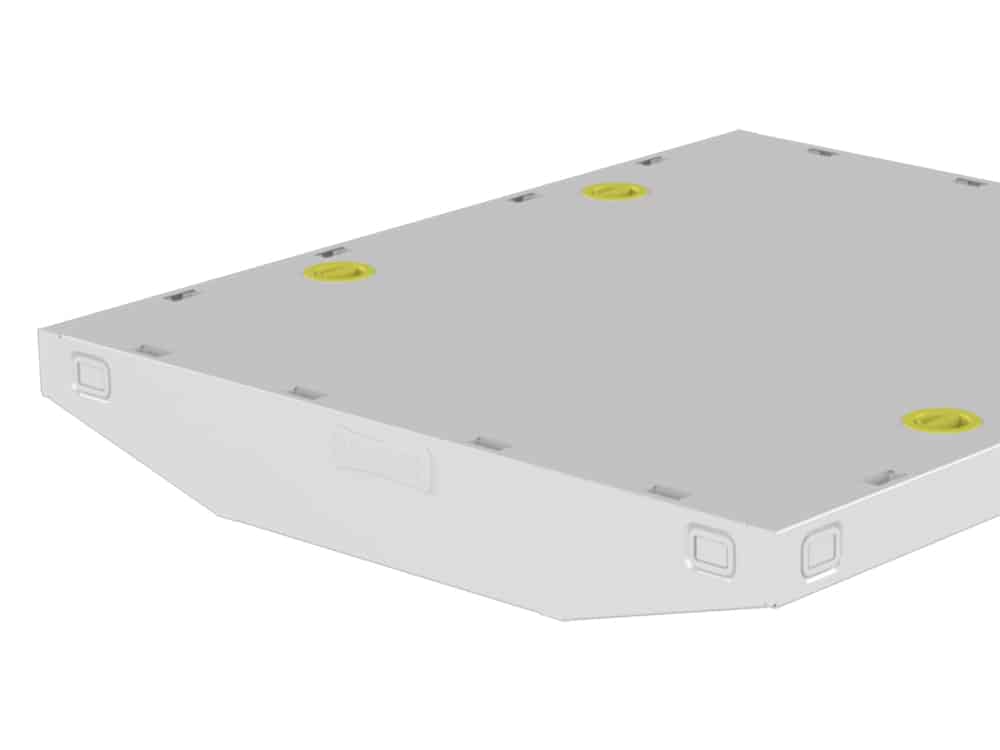

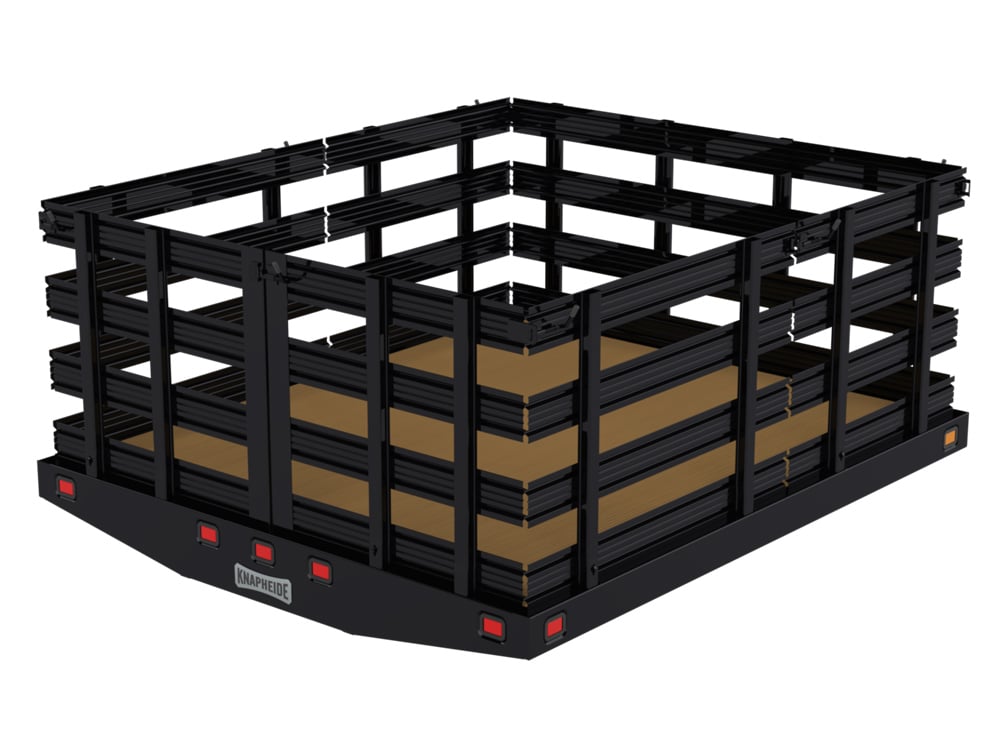

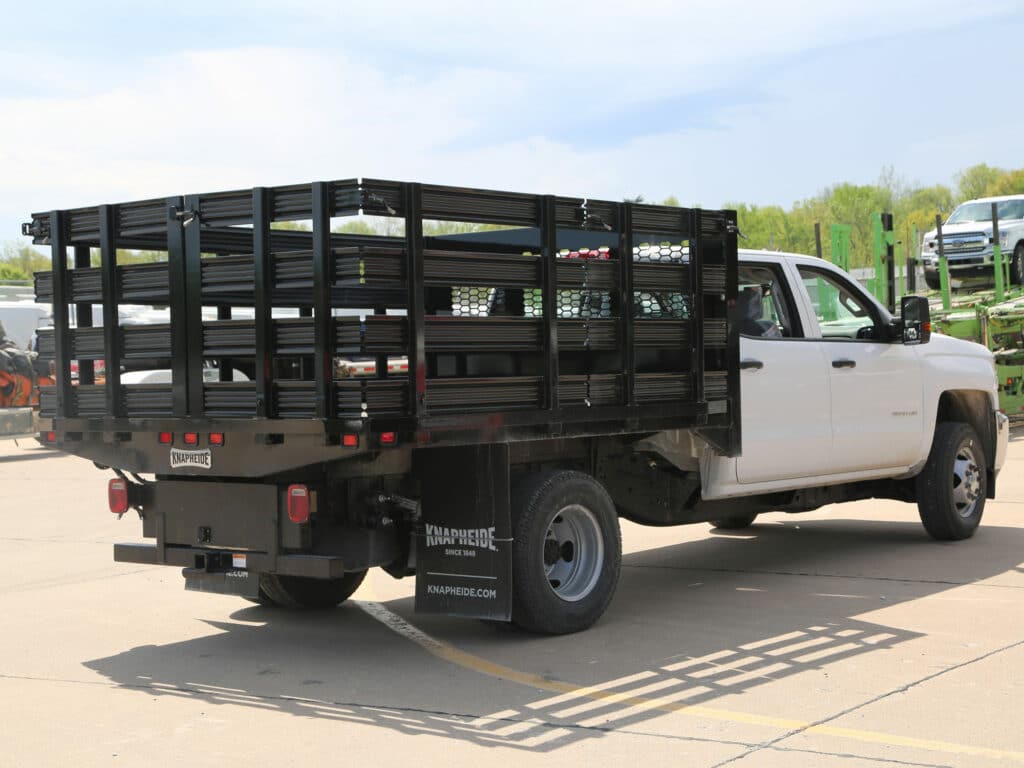

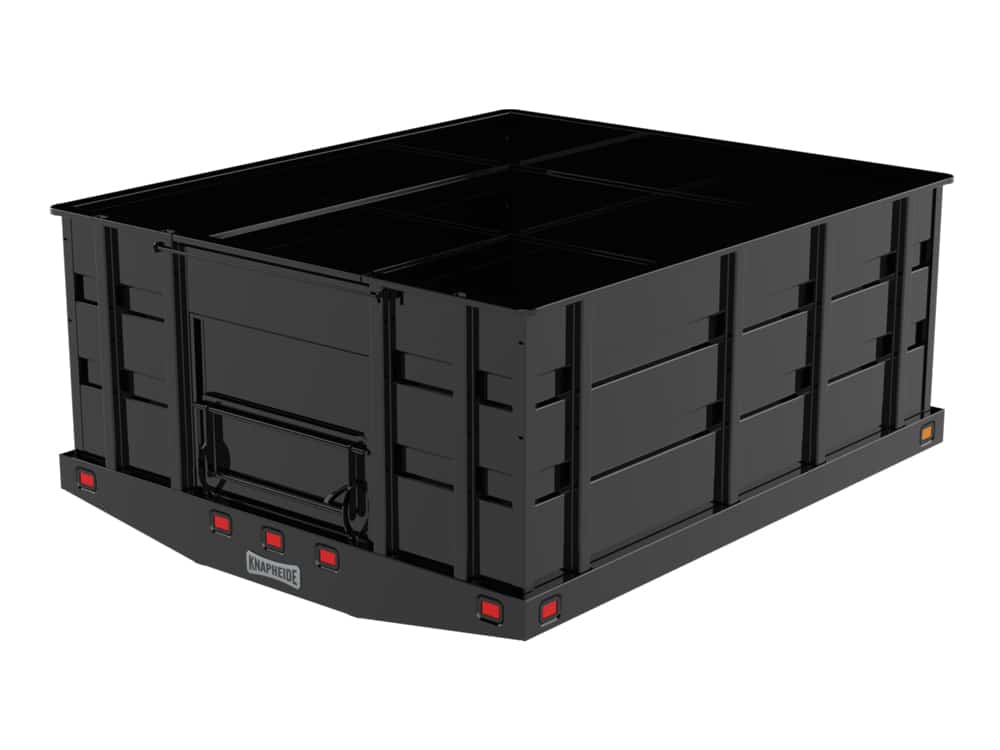

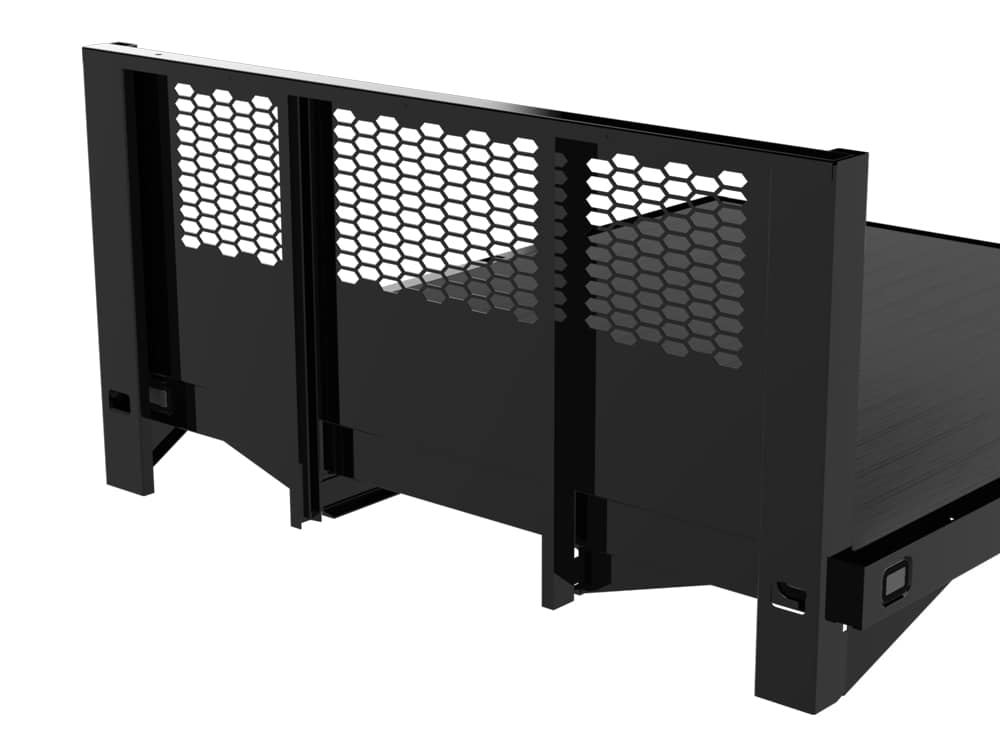

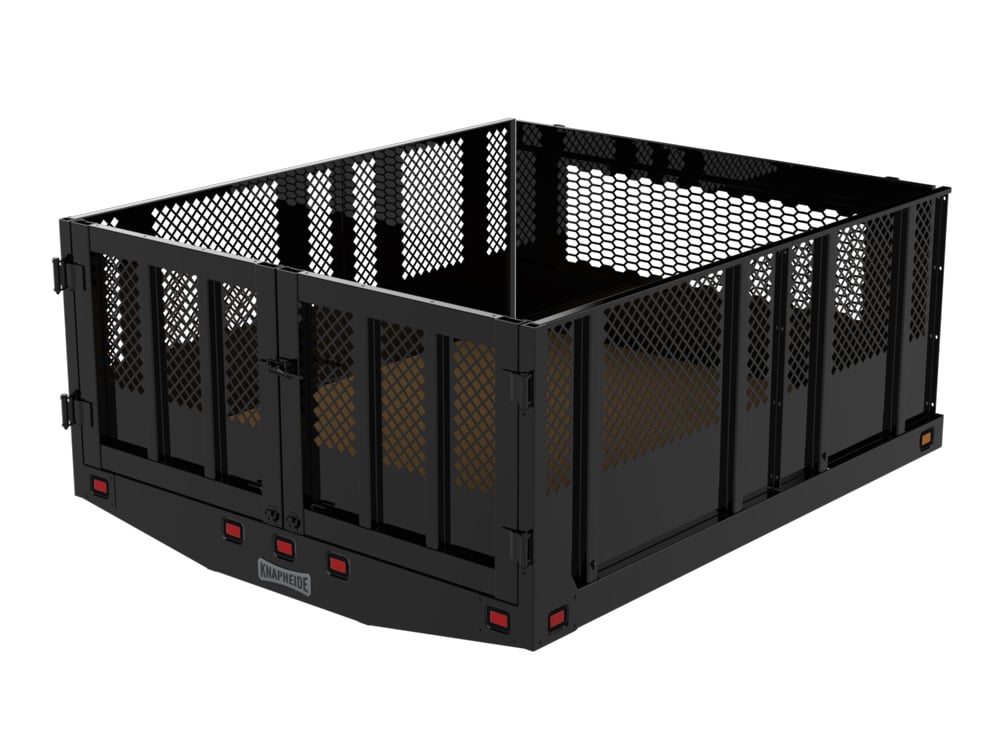

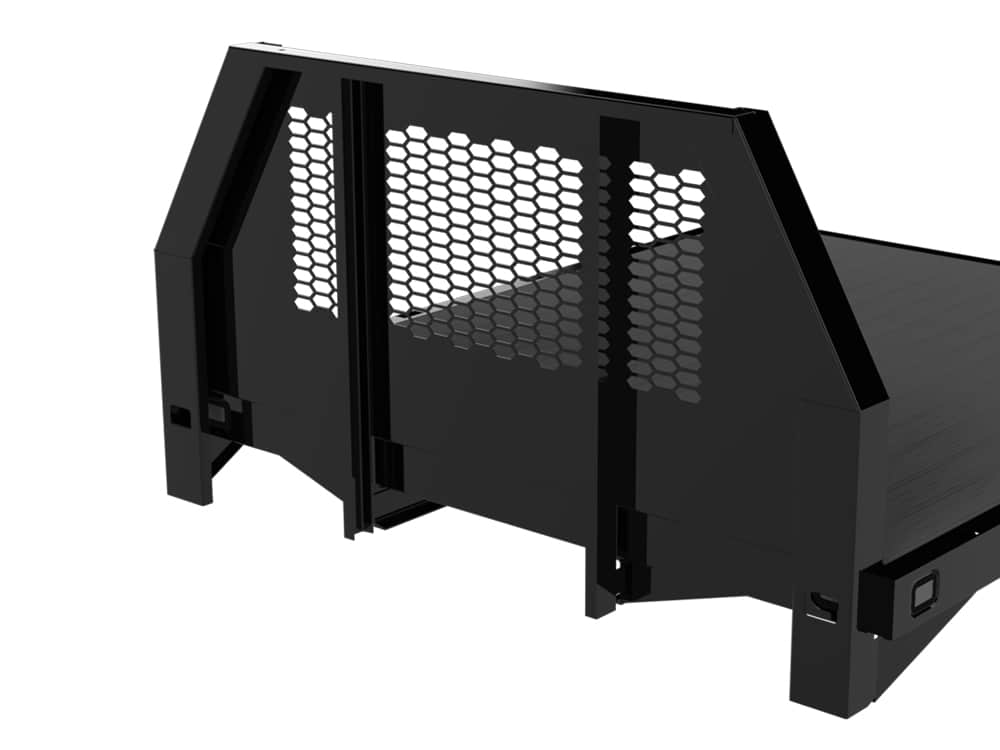

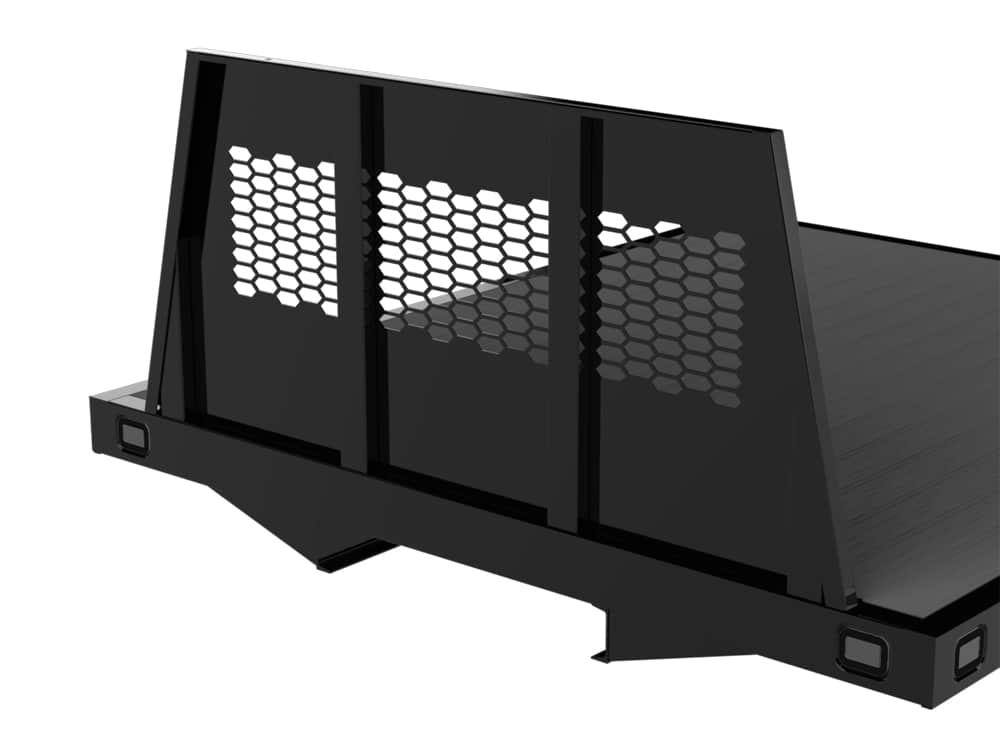

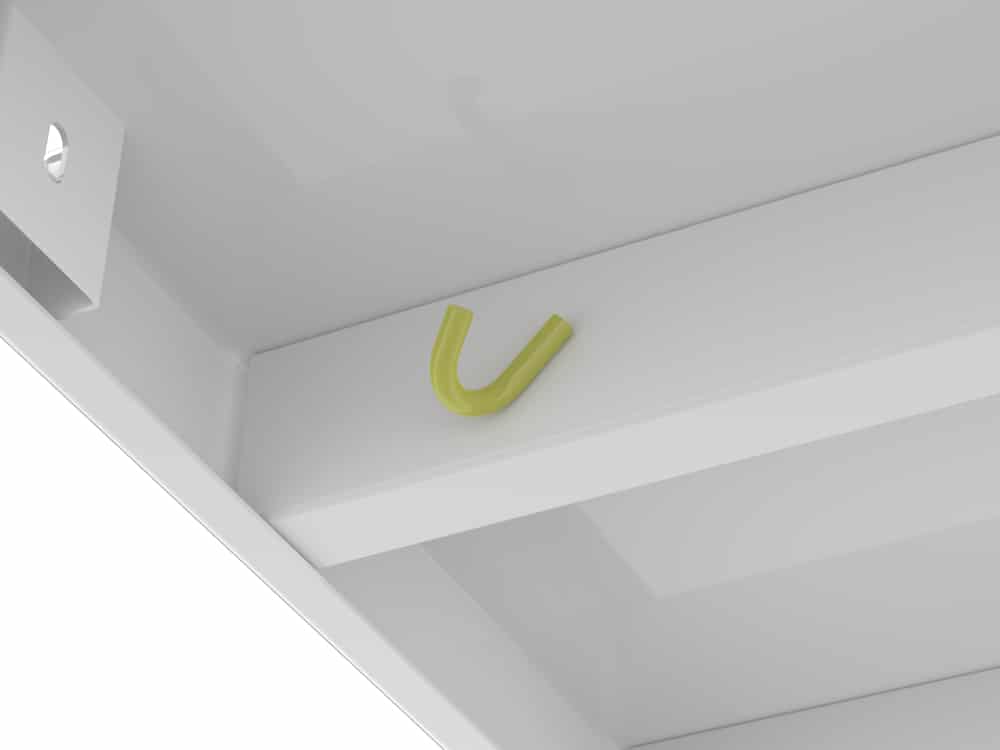

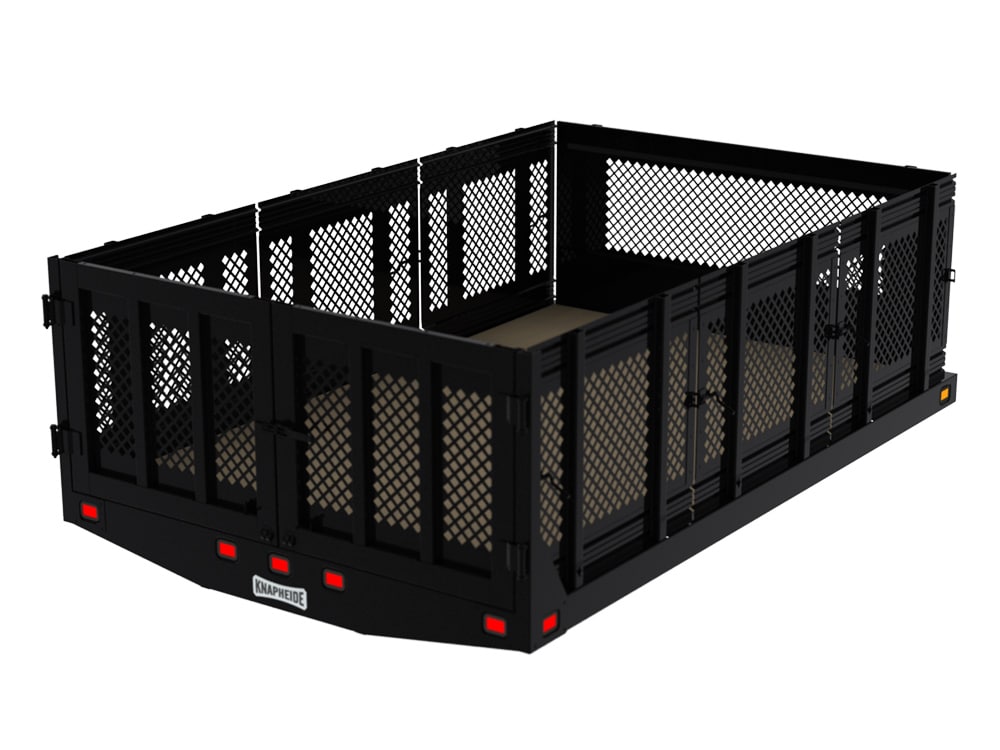

  • Multiple flooring materials, side options, bulkhead styles, storage and cargo restraining solutions offered.
  • Models are available in 94 and 100-inch widths and 9 to 26-foot lengths.
  • Designed for Class 2 and above dual rear wheel cab chassis.

Build & Quote

Add products, submit your request, and we'll get in touch with more info and a personalized quote!

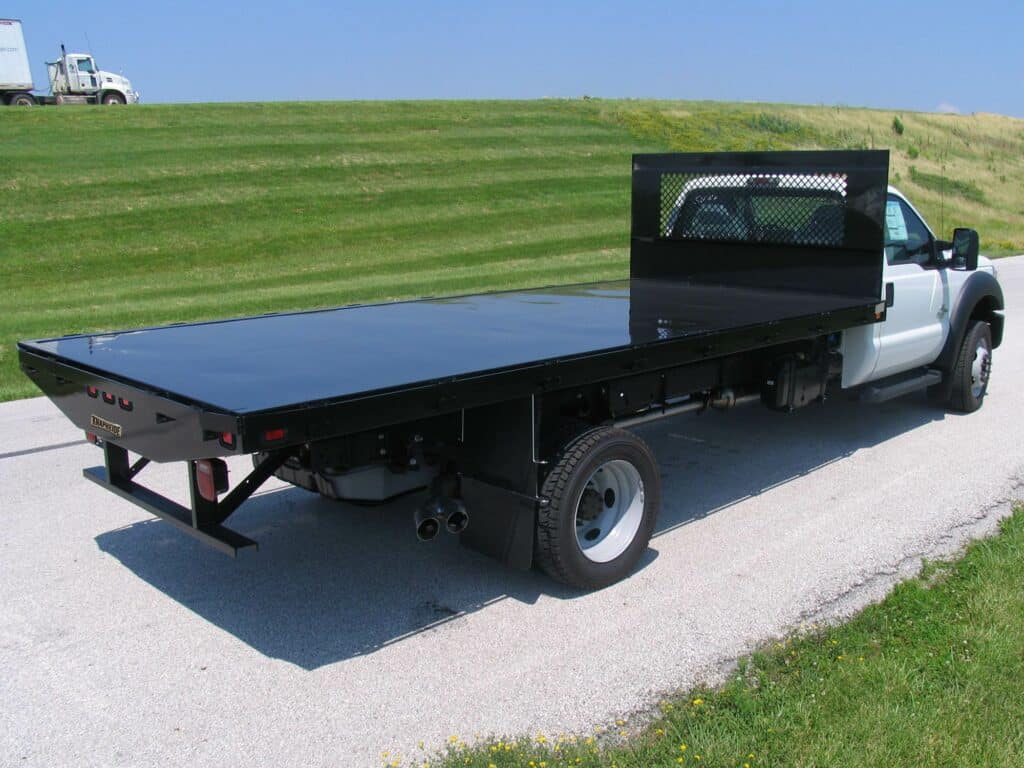

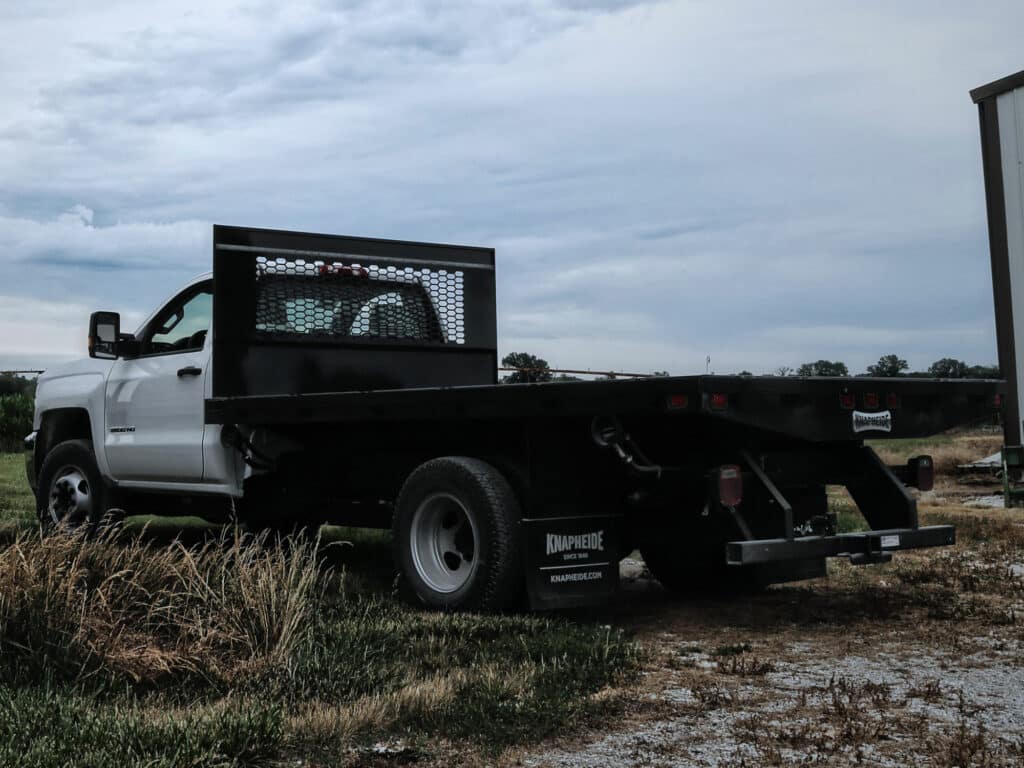

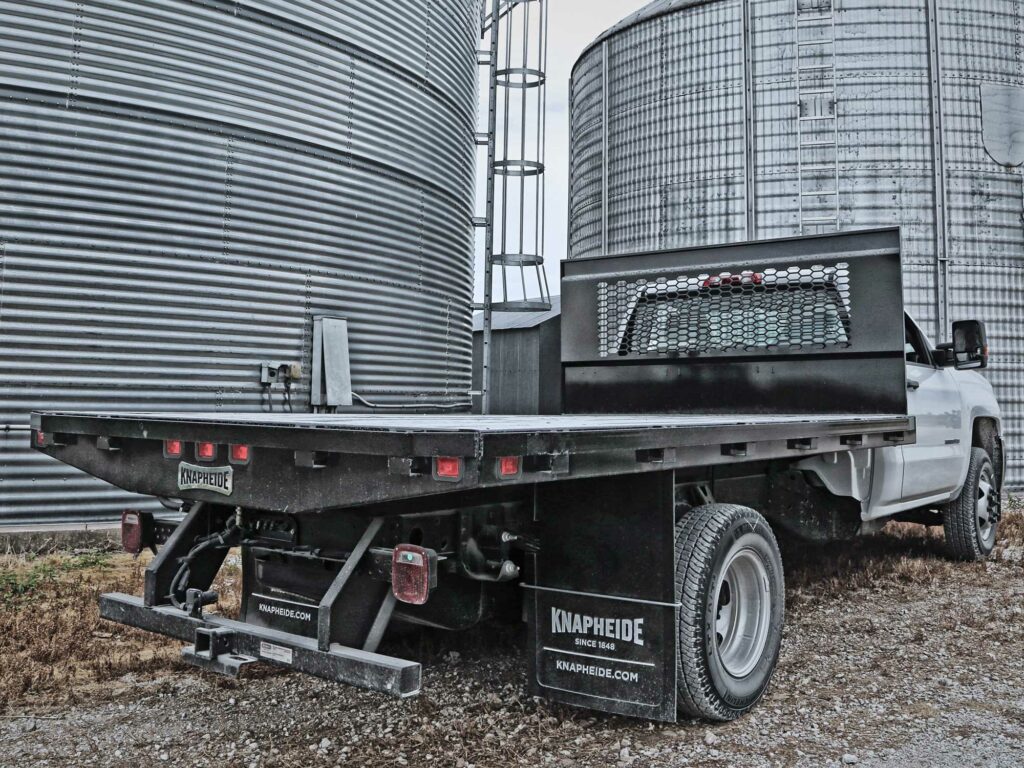

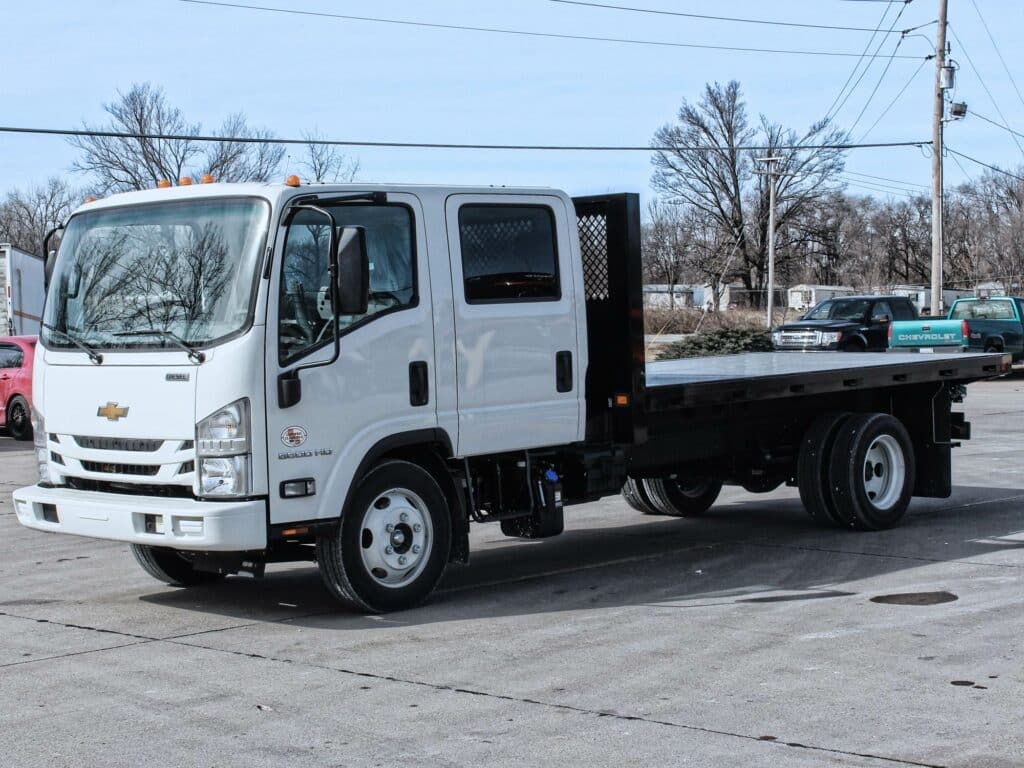

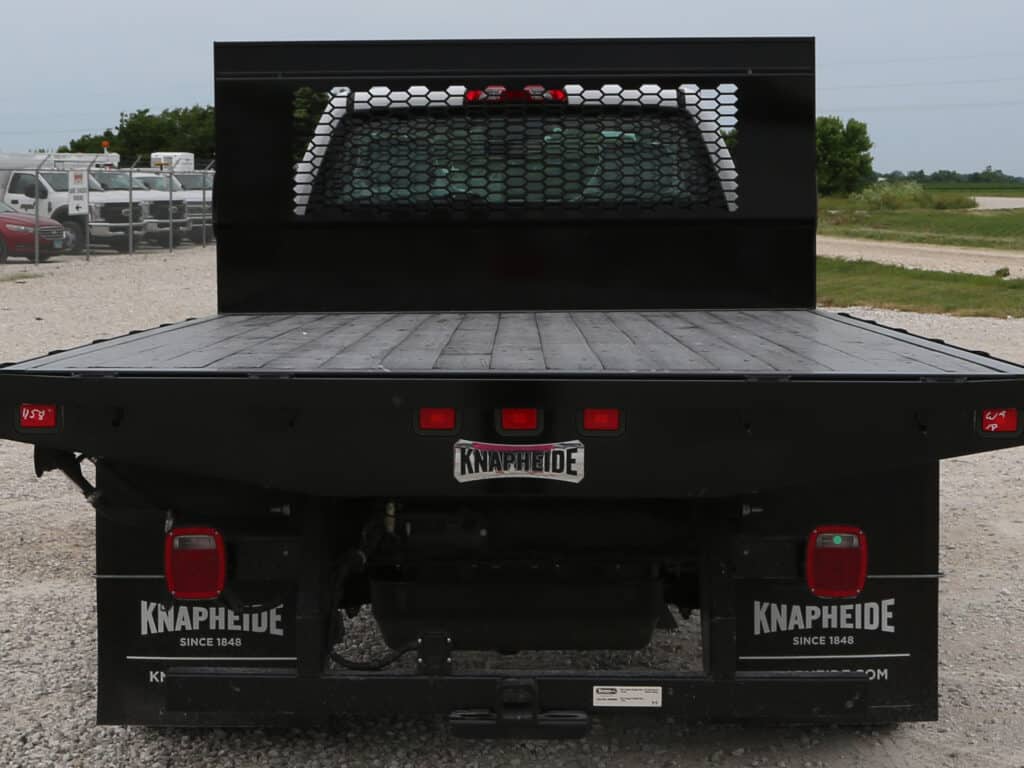

Heavy-Hauler Junior Platform Body

Specifications

  • Standard Models

    Actual LengthActual WidthChassis CAPine Wood Floor - ModelPine Wood Floor - Net Weight (lbs)Smooth Steel Floor - ModelSmooth Steel Floor - Net Weight (lbs)Treadplate Floor - ModelTreadplate Floor - Net Weight (lbs)
    Dual Rear Wheel
    9'-5"94.77"60"PHHJ-95704PHHJS-95883PHHJT-95880
    11'-5"94.77"72-84"PHHJ-115826PHHJS-1151042PHHJT-1151039
    12'-5"94.77"84-102"PHHJ-125901PHHJS-1251136PHHJT-1251132
    14'-5"94.77"102-124"PHHJ-1451221PHHJS-1451493PHHJT-1451488
    16'-5"94.77"108-138"PHHJ-1651380PHHJS-1651690PHHJT-1651684
    18'-5"94.77"120-152"PHHJ-1851467PHHJS-1851887PHHJT-1851881
    20'-5"94.77"136-168"PHHJ-2051700PHHJS-2052084PHHJT-2052077
    22'-5"94.77"144-192"PHHJ-2251863PHHJS-2252291PHHJT-2252273
    24'-5"94.77"158-196"PHHJ-2452023PHHJS-2452478PHHJT-2452469
    26'-5"94.77"196-270"PHHJ-2652182PHHJS-2652675PHHJT-2652666
    Wide Applications
    14'-5"100.77"102-124"PHHJW-1451332PHHJWS-1451556PHHJWT-1451551
    16'-5"100.77"108-138"PHHJW-1651606PHHJWS-1651761PHHJWT-1651756
    18'-5"100.77"120-152"PHHJW-1851779PHHJWS-1851967PHHJWT-1851967
    20'-5"100.77"136-168"PHHJW-2051909PHHJWS-2052173PHHJWT-2052173
    22'-5"100.77"144-192"PHHJW-2252155PHHJWS-2252346PHHJWT-2252346
    24'-5"100.77"158-196"PHHJW-2452341PHHJWS-2452584PHHJWT-2452584
    26'-5"100.77"196-270"PHHJW-2652527PHHJWS-2652789PHHJWT-2652789

Images are shown for illustrative purposes only and may not be an exact representation of the product.
