A Flatbed Designed With Landscapers In Mind
Knapheide’s landscape flatbed truck bed isn’t your normal Landscaper Body. It includes optimized standard features to take your landscaping or lawn care operation to a new level. Need the ability to transfer, dump and distribute bulk materials like mulch, dirt, rock and more? The integrated dump hoist provides effortless operation while an optional metering gate enables the landscaper to easily control filling wheelbarrows. Load and haul palletized materials? A 50″ side access swing out door accommodates for quick forklift loading. Add additional functionality with an optional storage pack or underbody toolbox. If you want to upgrade your landscaping vehicle, check out the Knapheide Landscaper Body.
3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
Tall sides, rear and curb side accessible bed with optional storage, hoists, and tarp systems offered.
Models are 94.4-inches wide and available in 9 to 12-foot lengths.
Designed for Class 2 and above dual rear wheel cab chassis.
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Undercoat
Under side of body receives additional corrosion protection with Knapheide's water-based undercoat.
Side Access Door
Side access door on curb side has. 50” wide opening for pallets, balled trees, shrubs, bagged materials, etc. Side access door can be locked in the open position.
Swing-Out Punched Rear Gates
Swing-out rear gates with heavy duty hinges swing 270 degrees. Lockable in the open position. Rear gates are punched for proper airflow. Heavy-duty cam lock on rear gates for load security and long-term durability.
Body Options
Cab Protector
Knapheide LED Tail Lights
Knapheide Tool Boxes
Rear Gates With Drop Down Tailgate
Rear Gates with Drop Down Tailgate and Metering Chute
Receiver Hitch
Subframe Hoists
Landscaper KnapPack
Cab Protector
Guards cab from debris in Landscaper bodies and allows storage of oversized items.
Knapheide LED Tail Lights
Upgrade the factory tail lights of your OEM chassis to the Knapheide alternative with bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices.
Knapheide Tool Boxes
Knapheide tool boxes are a great supplement to many types of truck bodies. They are lockable and come in multiple sizes for mounting above and under the body to fulfill additional storage needs.
Rear Gates With Drop Down Tailgate
Punched upper rear gates swing out 270 degrees and secures in the open or closed position. Tailgate drops down for dumping application.
Rear Gates with Drop Down Tailgate and Metering Chute
Punched upper rear gates swing out 270 degrees and secures in the open or closed position. Tailgate drops down for dumping application. Rear tailgate includes integrated metering chute for controlling the spread of material.

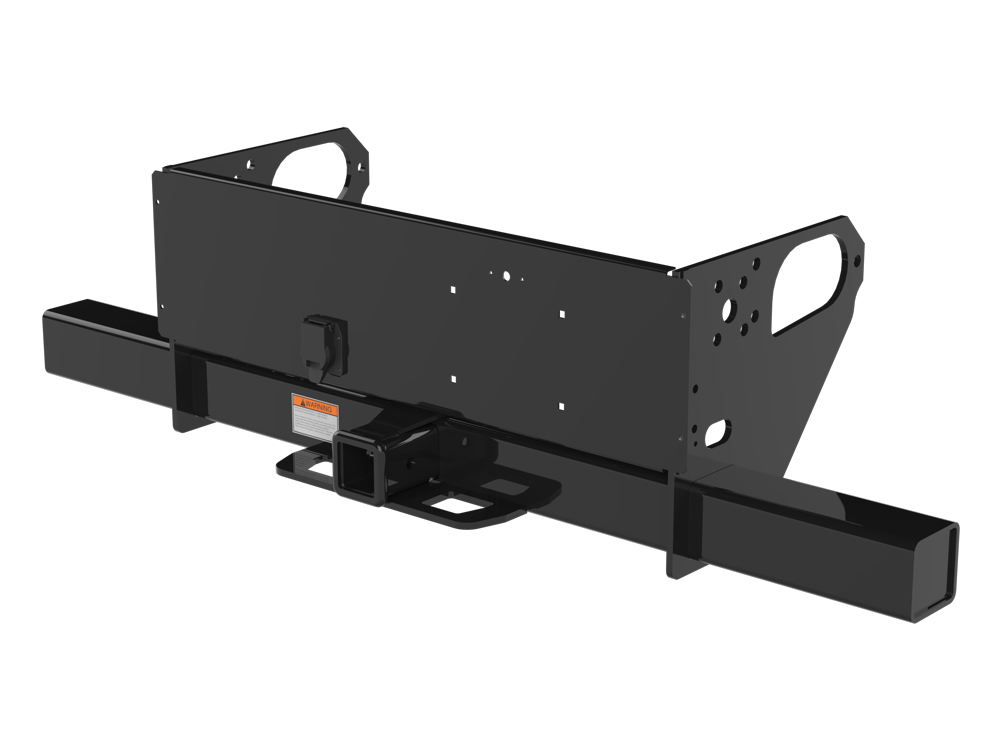

Receiver Hitch
Bolt-on, Class IV and V hitches with up to 21,000 lb. max trailer weight and 4,200 lb. max tongue weight. Hitches have 2.5” square shank and are compliant with SAE J3352 performance standards.
Subframe Hoists
Double acting power up – power down for total load control. Body Brace ensures operator safety while servicing the hoist. All hoist and dump body combinations set at a 50 degree dump angle.
Landscaper KnapPack
Ideal storage solution for landscaping professionals. Street side features storage area including four swivel hooks and lockable compartment door. Curb side features two fixed shelves and lockable tool storage bin that extends out 48" for easy retrieving and storing of longer tools and equipment.
Add-ons
Power Take Off Units
Grill Guards
Steps
Liftgates
Dump Hoists
Dump Bed Vibrators
Trailer Hitches
Loading Ramps
Winches
Backup Alarms
Salt Spreaders and Brine Sprayers
Snow Plows
Tarp Systems
Power Take Off Units
These transmission, engine or driveline mounted units harness mechanical power from the vehicle's running engine to operate many kinds of onboard equipment a technician may use on the jobsite. A PTO may power hydraulic systems in heavy lifting or pulling equipment like cranes, winches and hoists, air compressors used in pneumatic tools, welders, or produce electricity for generators to operate power tools. They are most popular in applications that demand high power output and efficiency.
Grill Guards
The primary purpose of grill guards is to provide protection to the vehicle's front end, especially the grill and headlights, from potential damage caused by collisions with animals, debris, or other objects. In rural or off-road settings, work vehicles are more susceptible to encounters with wildlife, and they help minimize the risk of damage. Grill guards also often come with mounting points, allowing work vehicles to be equipped with auxiliary lighting, winches, or other accessories.
Steps
Work vehicles are often large and elevated, making it challenging for individuals to access the cab or cargo area without assistance. Steps play a crucial role in providing a convenient means for drivers and operators to enter and exit while reducing the chances of physical strain or injury due to slipping or falling. The fixed or retractable accessories, available in varying lengths, allow for a more productive work environment for those interacting with these vehicles on a regular basis.
Liftgates
These rear or side mounted platforms assist in the loading and unloading of goods, typically heavy or large items, from ground level to the cargo area of the vehicle or vice versa. The incorporation of liftgates significantly enhances operational efficiency by streamlining these tasks, thereby minimizing the time and labor demands on users. They reduce the inherent risks associated with manual handling, contributing to a safer environment and mitigating the risk of injuries among personnel.
Dump Hoists
Dump hoists play a critical role in transforming work trucks into efficient material movers. These systems raise the cargo bed to facilitate the quick offloading of loose materials like soil, sand, rock, mulch or debris. The truck would essentially be a flatbed without this accessory, unable to perform its core function of efficiently depositing contents. This contributes significantly to the productivity of various industries, including construction, landscaping, and waste management.
Dump Bed Vibrators
Dislodge clumped or stuck snow, ice or loose bulk materials like gravel, dirt, or mulch via a mechanism that shakes and facilitates the flow of contents from a truck bed without manual intervention.
Trailer Hitches
Hitches are rear mounted connectors on commercial vehicles that allow operators to safely tow trailers filled with cargo. These are crucial because they significantly expand a vehicle's hauling capacity, enabling them to transport large quantities of goods, equipment, or materials needed for various business operations. Without hitches, commercial vehicles would be limited to their own bed capacity, hindering efficiency and potentially requiring additional trips.
Loading Ramps
Ramps provide better accessibility by bridging the gap between the ground and cargo area of the vehicle, ensuring efficient loading and unloading of cargo. Their versatility accommodates various goods, enhancing overall efficiency and minimizing time spent on these processes. They also help to alleviate physical strain on workers engaged in moving goods by reducing the manpower needed for manual lifting, thus preventing injuries and fostering a safer working environment.
Winches
Commercial vehicles, especially those engaging in off-road activities, may encounter challenging terrains or obstacles. A winch can be used for self-recovery or to assist other vehicles by providing the necessary pulling power to get them out of difficult situations. They can also be valuable in reaching, lifting or positioning a range of loads including heavy equipment, holding up structures temporarily, or handling large or bulk amounts of materials around the jobsite.
Backup Alarms
Backup alarms, also known as reversing alarms, are crucial safety devices for vehicles, especially those with large blind spots or frequently operating in areas with high foot traffic. They emit an audible warning sound when the vehicle is in reverse gear, alerting nearby pedestrians, cyclists, and other drivers of the vehicle's movement and potential danger zone. This helps to prevent collisions and accidents, particularly in situations where the driver might not have a clear view behind them. Knapheide and it's partners upfit many of the heavy equipment, industries and vehicles where backup alarms are an integral piece of safety equipment.
Salt Spreaders and Brine Sprayers
Spreaders and sprayers efficiently distribute dry granular salt or liquid brine onto roads and paved surfaces, preventing the formation of ice and enhancing traction. These specialized devices improve safety by reducing the risk of accidents caused by slipping or sliding and are more efficient than manual spreading methods. They are crucial for those responsible for maintaining roadways during winter weather, ensuring that travel remains safe and efficient even in challenging conditions.
Snow Plows
When others count on you during winter weather conditions, you can count on Knapheide Truck Equipment Center to provide you with the highest quality snow removal products like pushers, plows, and blades that will help you make easy work of the toughest snow removal jobs.
Tarp Systems
Tarp systems are commonly used on dump trucks, trailers, and roll-off containers, ensuring safe and secure transportation of various materials like sand, gravel, scrap metal, and agricultural products. These protective shields keep your cargo secure and safe from the elements with durable tarp material and manual or power operation for opening and closing.
Specifications
Standard Models
Model
Chassis CA
Nominal Length
Width
Net Weight
Description
PLB-09
60"
9'
94.40"
1703
Includes BHRB4096A bulkhead and swing out 270 rear gates
PLB-11
84"
11'
94.40"
1966
Includes BHRB4096A bulkhead and swing out 270 rear gates
PLB-12
84"
12'
94.40"
2106
Includes BHRB4096A bulkhead and swing out 270 rear gates
PLBTG-09
60"
9'
94.40"
1765
Includes BHRB4096A bulkhead with rear cargo gates with tailgate
PLBTG-11
84"
11'
94.40"
2029
Includes BHRB4096A bulkhead with rear cargo gates with tailgate
PLBTG-12
84"
12'
94.40"
2169
Includes BHRB4096A bulkhead with rear cargo gates with tailgate
PLBTGC-09
60"
9'
94.40"
1777
Includes BHRB4096A bulkhead with rear cargo gates and tailgate with metering chute
PLBTGC-11
84"
11'
94.40"
2041
Includes BHRB4096A bulkhead with rear cargo gates and tailgate with metering chute
PLBTGC-12
84"
12'
94.40"
2181
Includes BHRB4096A bulkhead with rear cargo gates and tailgate with metering chute
PLB-11-LCF-B
86.5"
11'
94.40"
2019
Includes BHRB5096A bulkhead and swing out 270 rear gates
PLB-12-LCF-B
110"
12'
94.40"
2159
Includes BHRB5096A bulkhead and swing out 270 rear gates
PLBTG-11-LCF-B
86.5"
11'
94.40"
2082
Includes BHRB5096A bulkhead with rear cargo gates with tailgate
PLBTG-12-LCF-B
110"
12'
94.40"
2222
Includes BHRB5096A bulkhead with rear cargo gates with tailgate
PLBTGC-11-LCF-B
86.5"
11'
94.40"
2094
Includes BHRB5096A bulkhead with rear cargo gates and tailgate with metering chute
PLBTGC-12-LCF-B
110"
12'
94.40"
2234
Includes BHRB5096A bulkhead with rear cargo gates and tailgate with metering chute
PLB-12-SP-B
85.2"
12'
94.40"
2092
Includes BHRB5686A bulkhead and swing out 270 rear gates
