A Winning Work Truck and Flatbed Fusion
- 6 Year Limited Warranty guaranteeing no body rust-through, intact shelving, and fully operable door hinges, latches, and locks when used as directed.
- Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
- Open bed design with integrated storage compartments, 36-inch rear flatbed, and over cab material rack.
- Models available in 10 and 12-foot lengths and 40 to 60-inch heights.
- Designed for Class 2 and above dual rear wheel cab chassis.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!
Combo Body
Combo Body
Features
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Body Shell
Rugged 14-gauge, two-sided A-40 galvanneal steel body shell with a six year warranty. Complete undercoating provides an additional layer of corrosion protection.
LED Tail Lights
These surface mounted rectangular tail lights feature bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices. Guards inside the rear compartments protect interior wiring and other related components. The tail light’s housing, orientation and placement on the body may vary.
Automotive Latches
Our 6-year warranty backed automotive quality, paddle activated rotary latches make opening and closing compartment doors easy. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside the compartments. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.

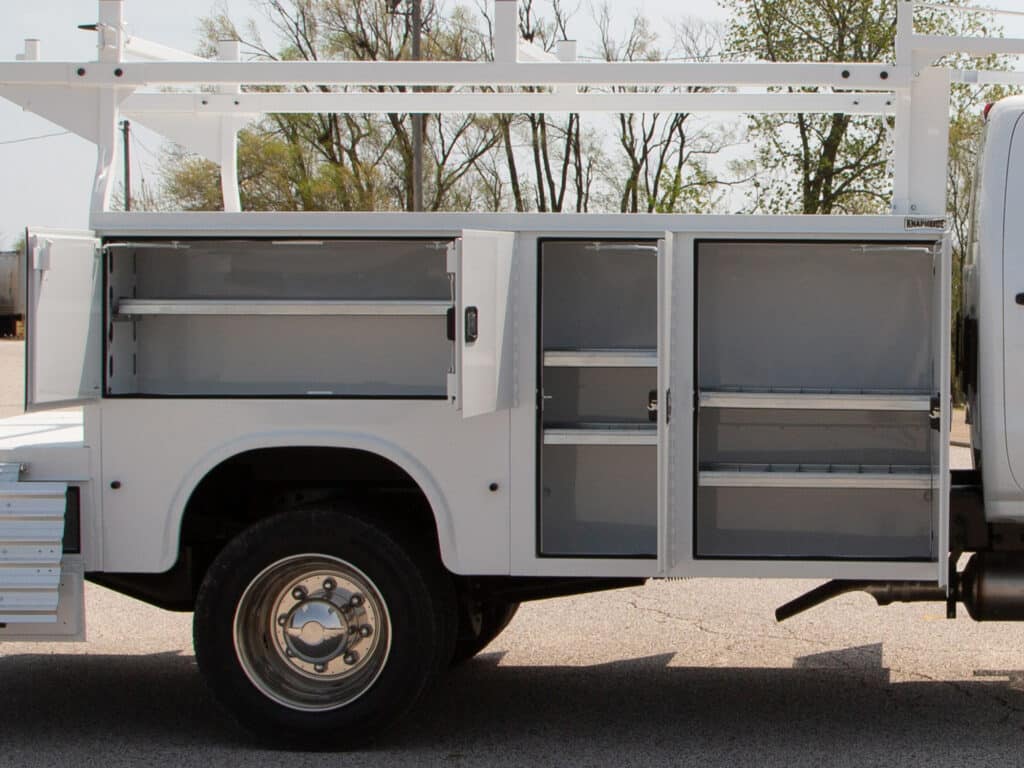

External Compartments
The size of compartments is influenced by the cab-to-axle length of the vehicle chassis or cutaway and the body height you plan to choose. Consult our specifications table for further guidance. Front vertical compartments have two shelves while full height rear vertical and curb side horizontal compartments have one shelf. Each adjustable shelf is rated to hold 250-lbs. with removable dividers every 4-inches.
Return Flange Floor
Exclusive "Return Flange" floor design provides support for side compartments, adds floor strength, and eliminates rust-prone exposed seam between floor and side compartments.
Receiver Hitch
Integrated Class V receiver hitch at rear of platform with safety chain attachment points and 7 way trailer plug, receiver hitch rated at 18,000 lbs.
Body Options
Specifications
Standard Models
Model Body Model Total Length (Nominal) Body Height Body Width Compartment Depth Cargo Floor Width Net Weight (lbs) 60" and 84" CA, Dual Rear Wheel CB117D54 117" 40" 94" 20" 54" 1402 CB117D54F40 117" 40" 94" 20" 54" 1514 CB117D54H46 117" 46" 94" 20" 54" 1488 CB117D54H60 117" 60" 94" 20" 54" 1744 CB145D54 145" 40" 94" 20" 54" 1712 CB145D54F40 145" 40" 94" 20" 54" 1857 CB145D54H46 145" 46" 94" 20" 54" 1821 CB145D54H60 145" 60" 94" 20" 54" 2128
Gallery
Images are shown for illustrative purposes only and may not be an exact representation of the product.
