The Ideal Work Truck Bed for Heavy Lifting
- 6 Year Limited Warranty guaranteeing no body rust-through, intact shelving, and fully operable door hinges, latches, and locks when used as directed.
- Constructed from 12, 14 and 20-gauge, A-40 galvanneal steel for unmatched strength and durability.

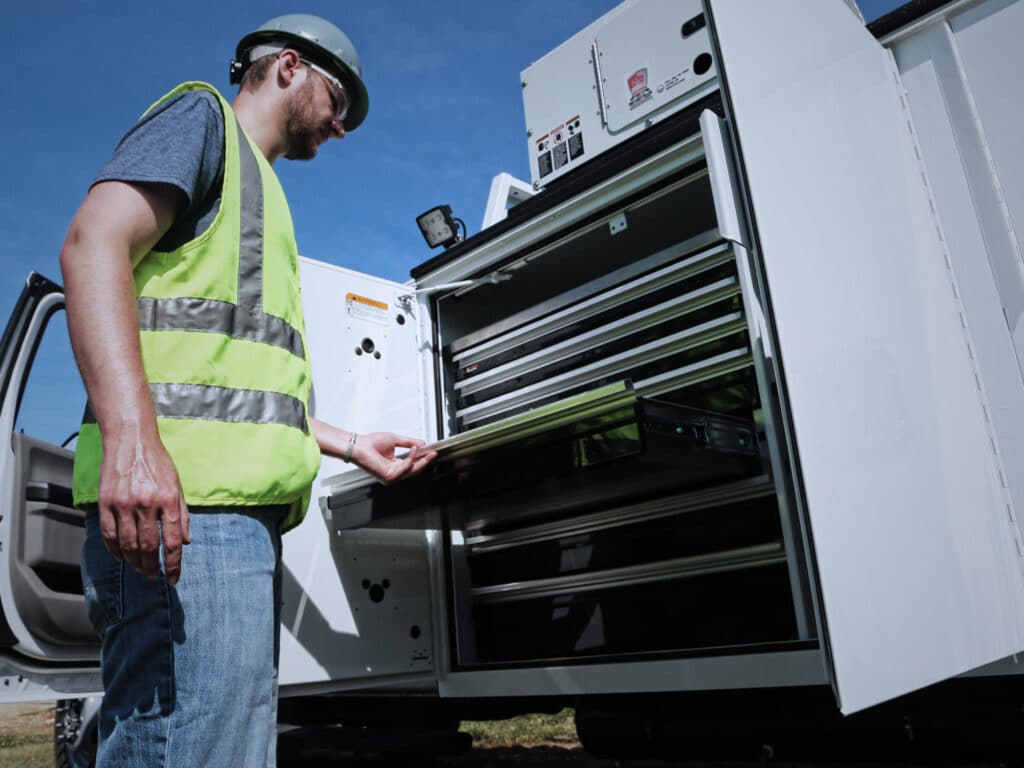

- Open bed design with external storage compartments, crane reinforced structure, and optional shelving, drawer, and bumper packages.
- Models are available in 9 and 11-foot lengths with accepted crane ratings up to 60,000 ft-lb.
- Designed for Class 2 and above dual rear wheel cab chassis.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!

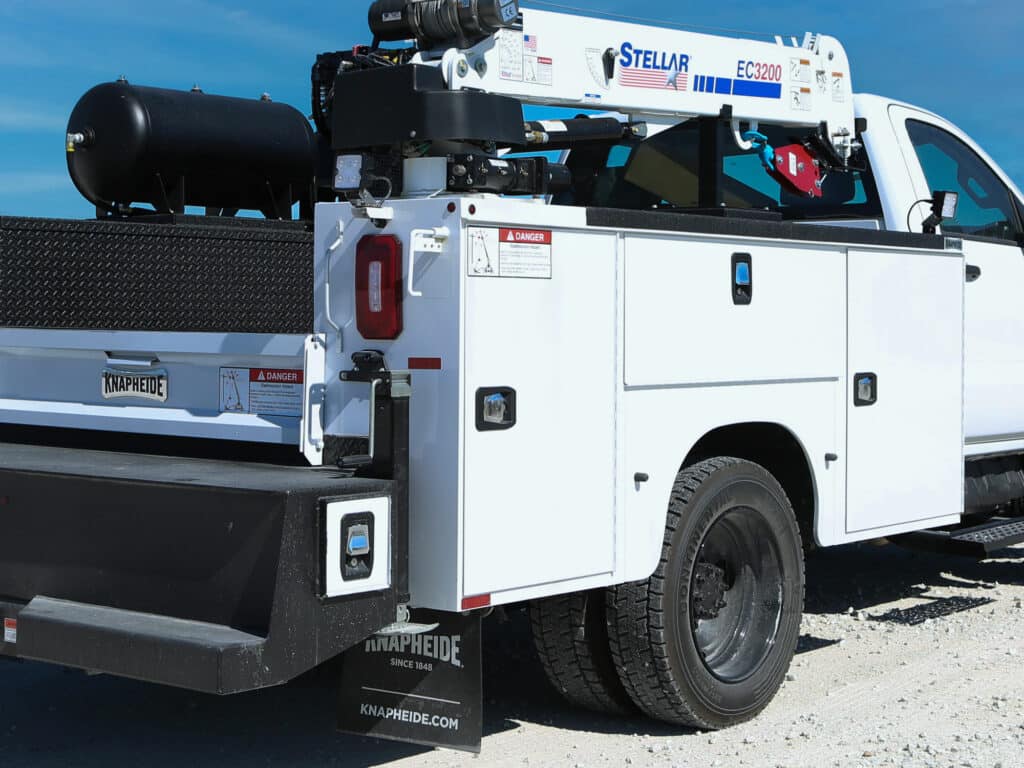

Crane Service Body
Crane Service Body
Features
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Body Shell
Rugged 12 or 14-gauge, two-sided A-40 galvanneal steel body shell with a six year warranty. Complete undercoating provides an additional layer of corrosion protection.
LED Tail Lights
These surface mounted rectangular tail lights feature bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices. Guards inside the rear compartments protect interior wiring and other related components. The tail light’s housing, orientation and placement on the body may vary.
Automotive Latches
Our 6-year warranty backed automotive quality, paddle activated rotary latches make opening and closing compartment doors easy. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside the compartments. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.

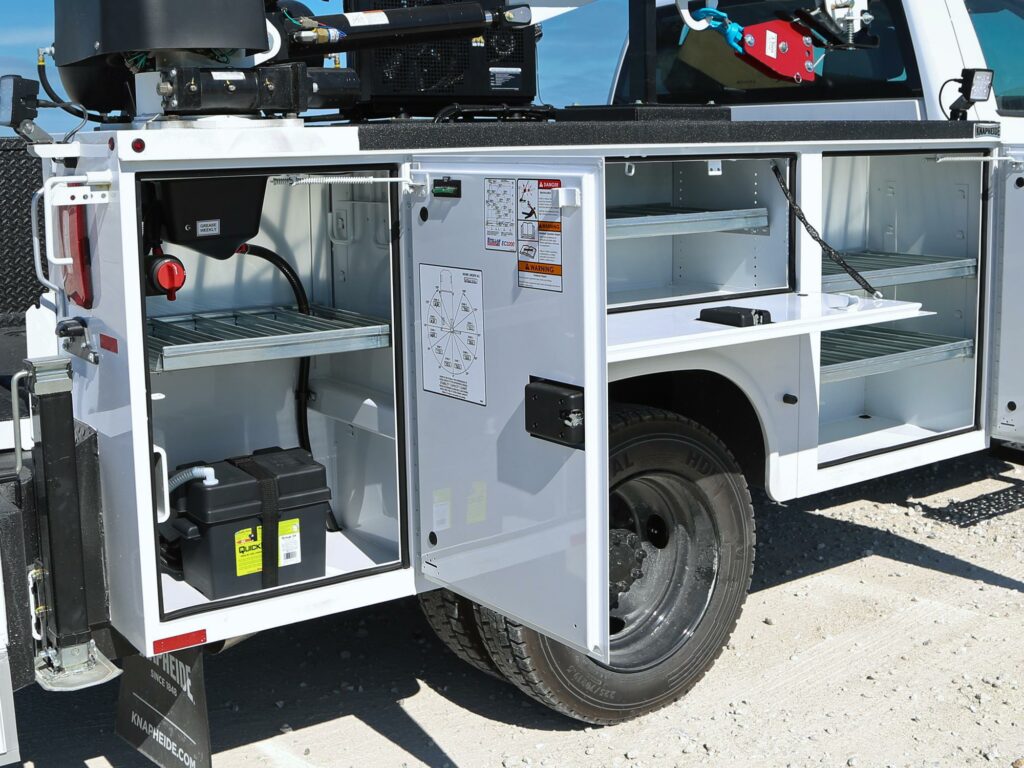

External Compartments
The size of compartments is influenced by the cab-to-axle length of the vehicle chassis or cutaway and the body height you plan to choose. Consult our specifications table for further guidance. Front vertical compartments have two shelves while full height rear vertical and curb side horizontal compartments have one shelf. Each adjustable shelf is rated to hold 250-lbs. with removable dividers every 4-inches.
Return Flange Floor
Exclusive "Return Flange" floor design provides support for side compartments, adds floor strength, and eliminates rust-prone exposed seam between floor and side compartments.

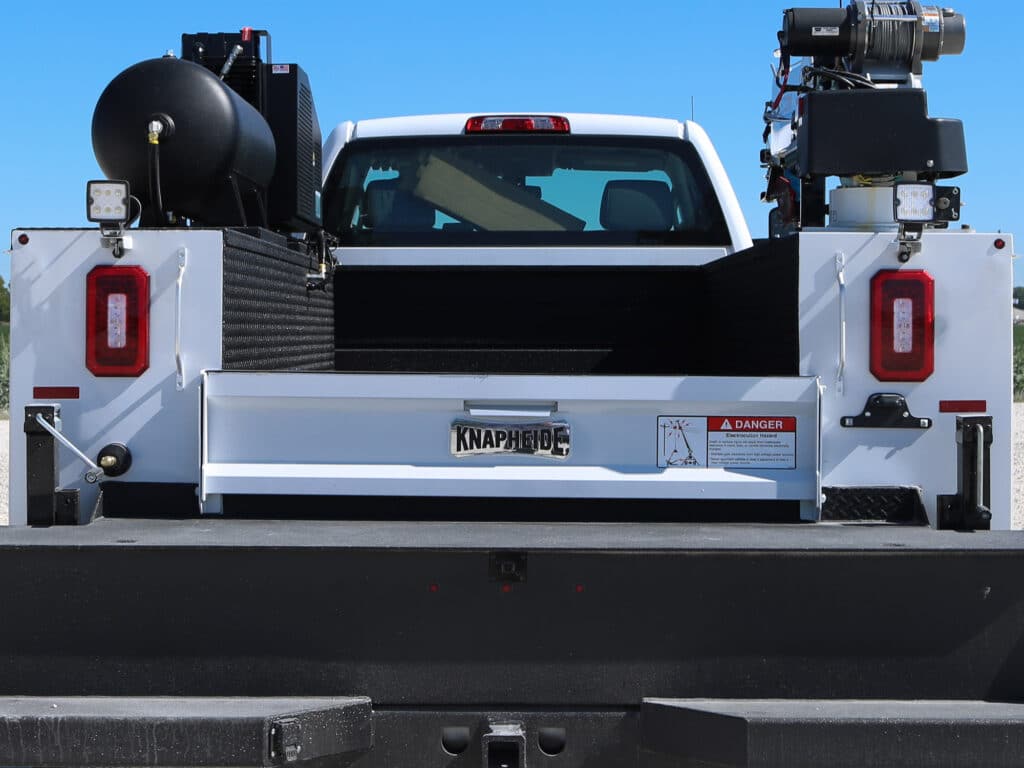

Slam Lock Tailgate
Slam lock tailgate with one hand center release for convenience. Durable double panel construction has flat interior surface for work bench use.
Body Options
Add-ons
Specifications
Standard Models
Model Applicable Models Max. Crane Rating Chassis CA Body Length Body Height Body Width Compartment Depth Floor Width Net Weight (lbs) 44 & 60 Crane Bodies 6108DL-44 15,000 GVWR chassis up to 19,500 GVWR with 19.5" dia. rims (max. 34" tire dia.) 44,000 60" 108" 44" 94" 22" 50" 2629 6108DLR-44 15,000 GVWR chassis up to 19,500 GVWR with 19.5" dia. rims (max. 34" tire dia.) 44,000 60" 108" 44" 94" 22" 50" 2689 6132DL-44 15,000 GVWR chassis up to 19,500 GVWR with 19.5" dia. rims (max. 34" tire dia.) 44,000 84" 132" 44" 94" 22" 50" 3037 6132DLR-44 15,000 GVWR chassis up to 19,500 GVWR with 19.5" dia. rims (max. 34" tire dia.) 44,000 84" 132" 44" 94" 22" 50" 3095 6132DLHR-60 Medium duty chassis 19,000 GVWR and up with 22.5" dia. rims (max. 46" tire dia.) 60,000 FT-LBS 84" 132" 52" 94" 22" 50" 3186 30 Crane Bodies 6108DL-30 15,000 GVWR chassis up to 19,500 GVWR with 19.5" dia. rims (max. 34" tire dia.) 30,000 FT-LBS 60" 108" 40" 94" 20" 54" 2306 6132DL-30 15,000 GVWR chassis up to 19,500 GVWR with 19.5" dia. rims (max. 34" tire dia.) 30,000 FT-LBS 84" 132" 40" 94" 20" 54" 2721 6132DLR-30 15,000 GVWR chassis up to 19,500 GVWR with 19.5" dia. rims (max. 34" tire dia.) 30,000 FT-LBS 84" 132" 40" 94" 20" 54" 2757
