A Power and Telecommunications Workhorse
- 6 Year Limited Warranty guaranteeing no body rust-through, intact shelving, and fully operable door hinges, latches, and locks when used as directed.
- Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
- Conventional or bobtail design with an open or enclosed bed, external storage compartments, and reinforced understructure.
- Models available in 10 to 14-foot lengths for aerial, non-aerial, and digger derrick use.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!
Line Service Body
Line Service Body
Features
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Body Shell
Rugged 14-gauge, two-sided A-40 galvanneal steel body shell with a six year warranty. Complete undercoating provides an additional layer of corrosion protection.
C-Channel Understructure
Superior understructure strength from 6” formed C-Channel cross sills
Automotive Latches
Our 6-year warranty backed automotive quality, paddle activated rotary latches make opening and closing compartment doors easy. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside the compartments. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.

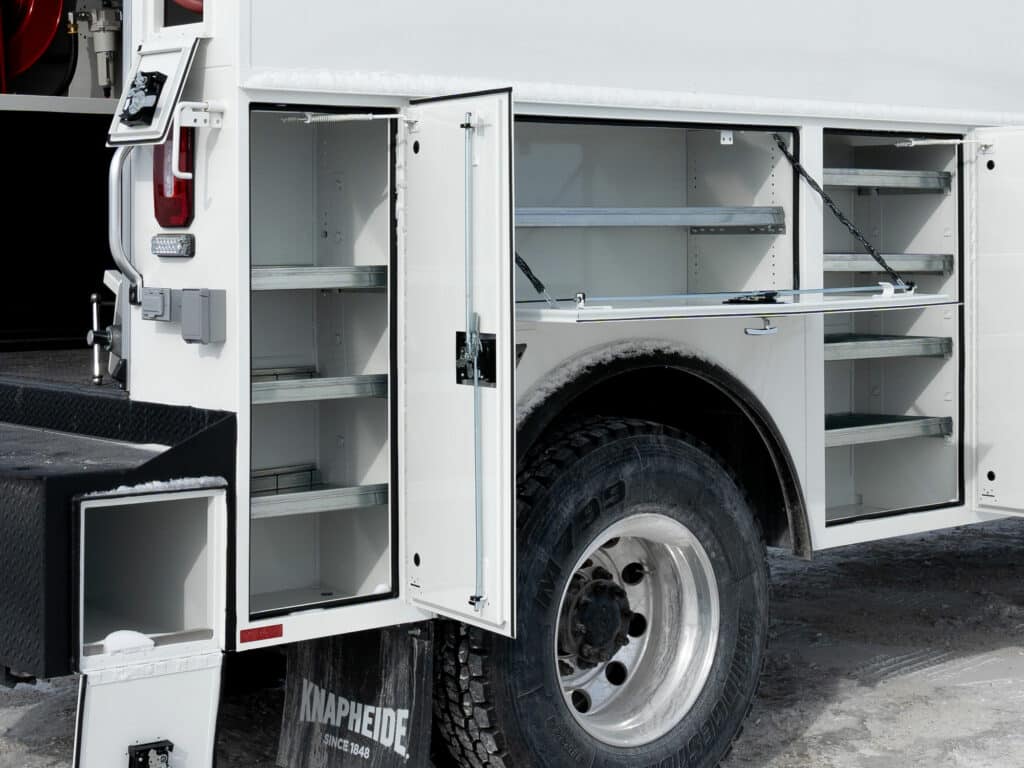

External Compartments
The size of compartments is influenced by the cab-to-axle length of the vehicle chassis or cutaway and the body height you plan to choose. Consult our specifications table for further guidance. Line service bodies do not come with shelving as a standard feature and must be a requested body option.
Return Flange Floor
Exclusive "Return Flange" floor design provides support for side compartments, adds floor strength, and eliminates rust-prone exposed seam between floor and side compartments.
Body Options
Specifications
Standard Models
Model Chassis CA Body Length Body Height Body Width Floor Width Compartment Depth Net Weight (lbs) Conventional Models 6121H 72" 121.25" 50" 94" 58" 18" 1777 6133H 84" 133.25" 50" 94" 58" 18" 1894 6147H 102" 147.25" 50" 94" 58" 18" 2126 6155H 108" 155.25" 50" 94" 58" 18" 2233 6165H 120" 165.25" 50" 94" 58" 18" 2332 6169H 124" 169" 50" 94" 58" 18" 2377 Bobtail Models (Excludes rear compartments; for use with aerial buckets and digger derricks.) 6133BH 108" 133.25" 50" 94" 58" 18" 1895 6145BH 120" 145.25" 50" 94" 58" 18" 2014

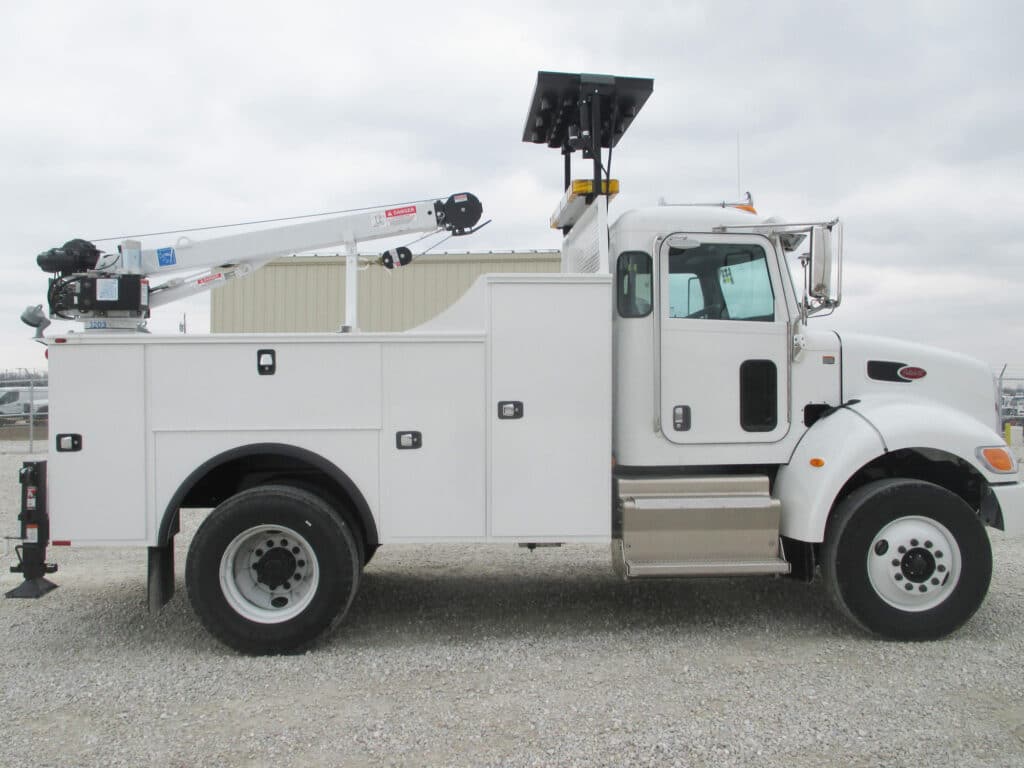

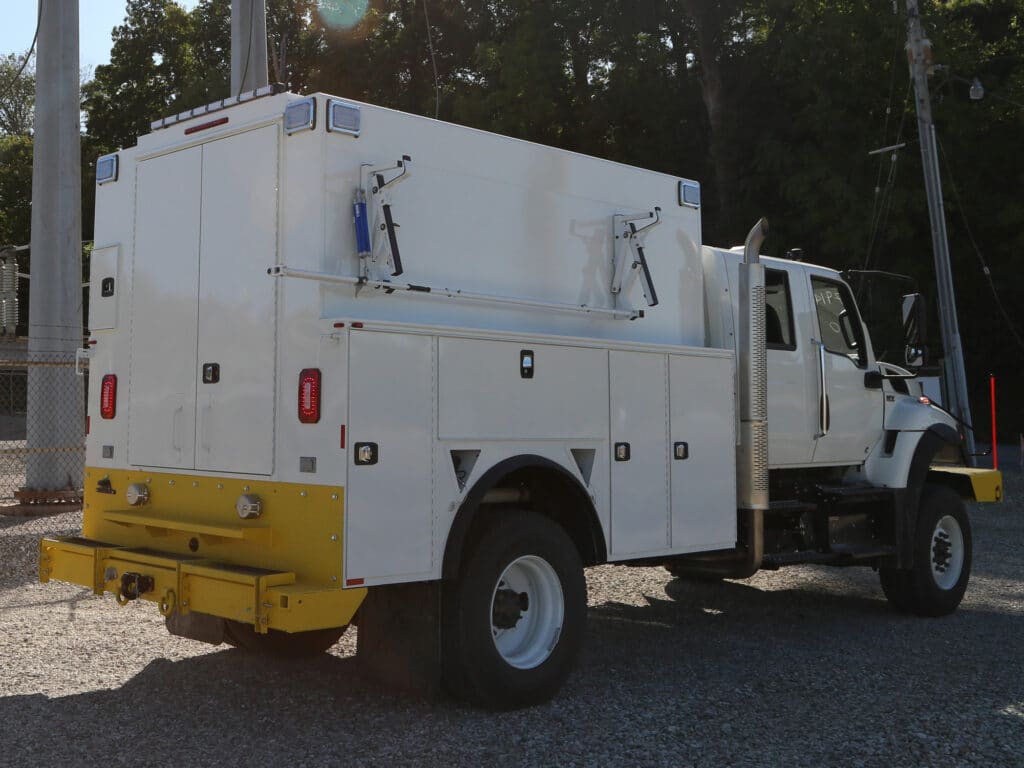

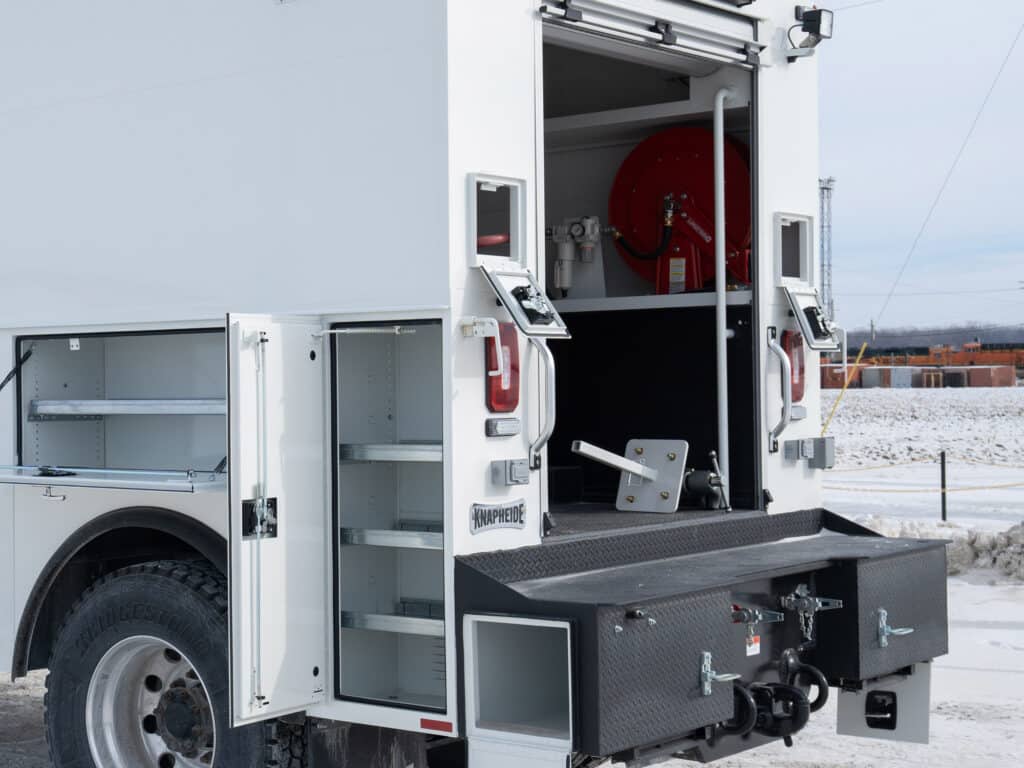

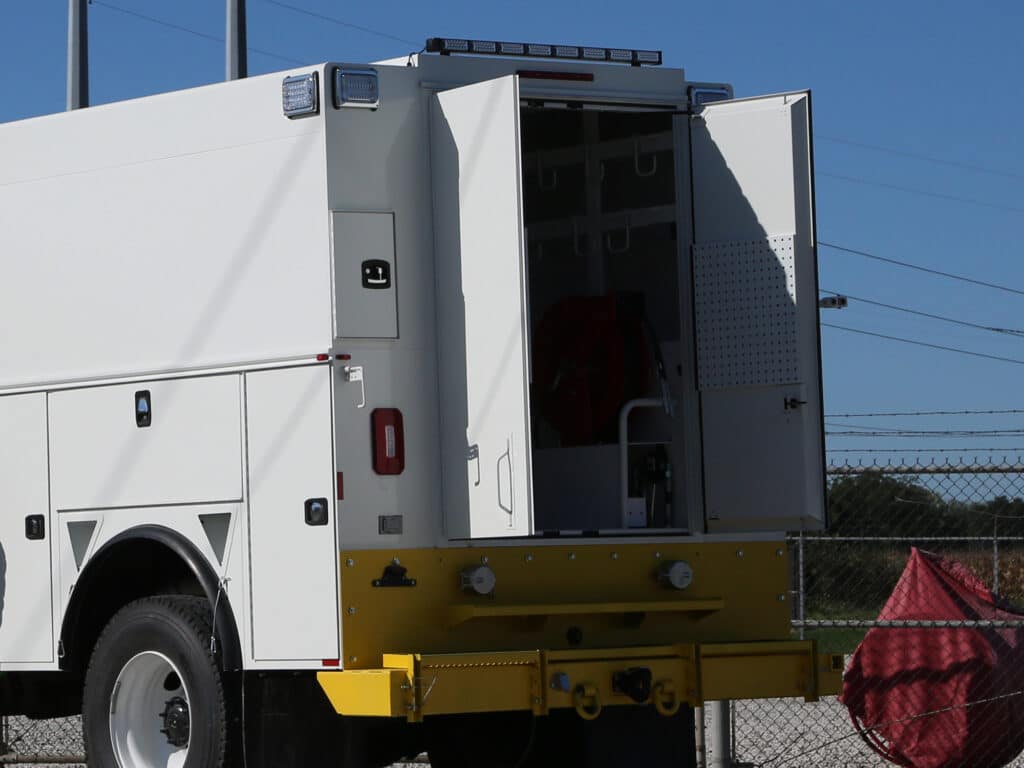

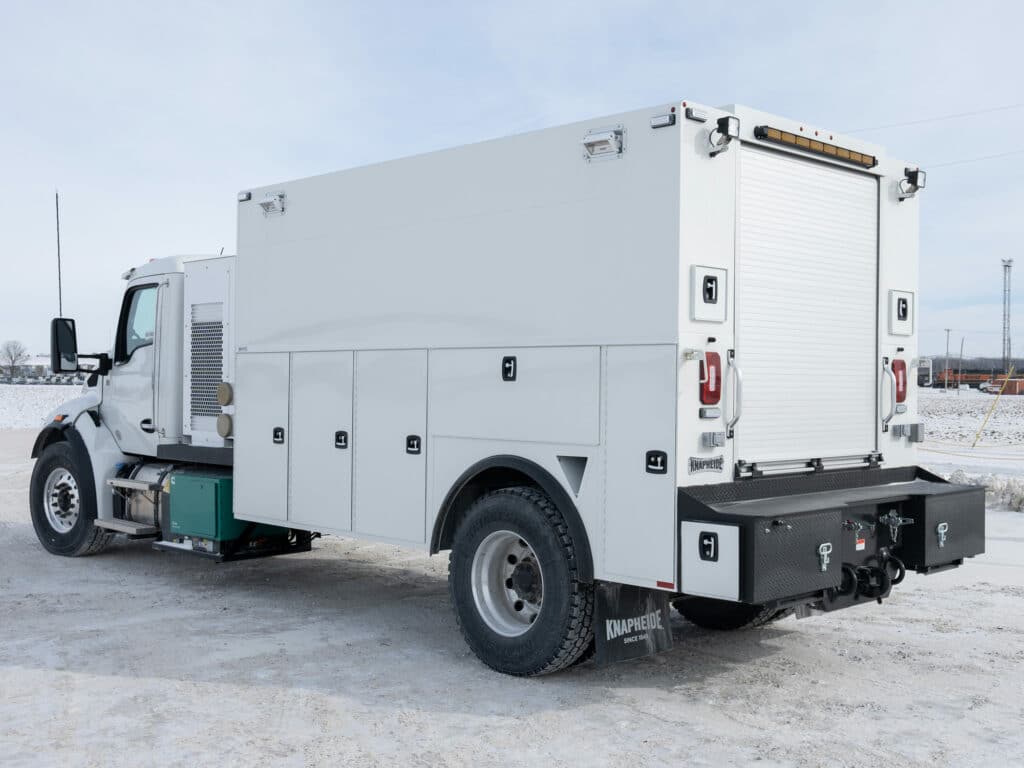

Gallery
Images are shown for illustrative purposes only and may not be an exact representation of the product.
