America's Most Popular Work Truck Bed
Field technicians across many industries and professions can tackle tasks on-site because Knapheide steel service truck bodies allow them to carry the necessary tools, equipment and supplies they use along with them. Users appreciate the versatile utility of this model’s open bed combined with integrated storage in the sidewalls. It gives operators greater efficiency in their installation, inspection, maintenance and repair services and even more so when additional body equipment is applied.
Double-shell, 20-gauge, two-sided A-40 galvanneal steel construction for strength and durability.
12-step, SST cathodic electrodeposition finishing (E-Coat) means corrosion won’t be a concern.
Available in multiple standard compartment configurations, heights and depths.
External compartment doors mean increased jobsite storage and efficiency.
Designed for Class-2-and-above cab chassis or pick-ups with bed removal.
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Body Shell
Rugged 14-gauge, two-sided A-40 galvanneal steel body shell with a six year warranty. Complete undercoating provides an additional layer of corrosion protection.
LED Tail Lights
These surface mounted rectangular tail lights feature bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices. Guards inside the rear compartments protect interior wiring and other related components. The tail light’s housing, orientation and placement on the body may vary.
Automotive Latches
Our 6-year warranty backed automotive quality, paddle activated rotary latches make opening and closing compartment doors easy. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside the compartments. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.
External Compartments
The size of compartments is influenced by the cab-to-axle length of the vehicle chassis or cutaway and the body height you plan to choose. Consult our specifications table for further guidance. Front vertical compartments have two shelves while full height rear vertical and curb side horizontal compartments have one shelf. Each adjustable shelf is rated to hold 250-lbs. with removable dividers every 4-inches.
Return Flange Floor
Exclusive "Return Flange" floor design provides support for side compartments, adds floor strength, and eliminates rust-prone exposed seam between floor and side compartments.
Slam Lock Tailgate
Slam lock tailgate with one hand center release for convenience. Durable double panel construction has flat interior surface for work bench use.
Body Options
500 Series Compartments
600 Series Compartments
700 Series Compartments
Tall Compartments
Low Profile Body
Raised Front Compartments
Flip Top Compartments
Plus 50 Compartments
Aluminum Treadplate Trim
Utility Rack
Overhead Ladder Rack
Side Mount Ladder Rack
Telescopic Sliding Roof
Canopy Roof
Straight Bumper
Step Bumper
Hitch Recess Bumper
Workbench Bumper
Liftgate Bumper
Receiver Hitch
Modular Cab Guard
Cargo Tie Downs
E-Track
Rear Access Door
Grab Handles
Compartment Lighting
Rock Guards
T-Handles
Master Locking System
Codeable Padlock
Power Locks
Aluminum Mechanics Drawers
Steel Mechanics Drawers
Pull-Out Shelves
Pull-Out Tray
Flex Steps
Cable Steps
Wheel Chock Holders
Spare Tire Retainer
Bottle Gas Retainer
Mechanics Vise Bracket
Meter Tray with Holes
Crane Reinforcement Kit
Torsion Box Floor
500 Series Compartments
The 500 Series configuration features one full height vertical compartment in the front of the body, one compartment in the lower rear of the body, and a horizontal compartment spanning from above the wheel well to the rear of the body.
600 Series Compartments
The 600 Series configuration features full-height vertical compartments in front and rear of the body with a horizontal compartment running between them.
700 Series Compartments
The 700 Series configuration features a combination of the 500 (curb side) and 600 (street side) series bodies.
Tall Compartments
These 600 Series tall compartments feature 46" or 60" height vertical compartments in front and rear of the body with a horizontal compartment running between them. Standard compartment height is 40" unless otherwise requested.
Low Profile Body
Low Profile Bodies, denoted by “LP”, offer greater visibility from the cab while only sacrificing 4” of the body height compared to a standard Service Body.
Raised Front Compartments
Raised front vertical compartment configuration raises the curb side front vertical compartment to 60” tall.
Flip Top Compartments
Flip Tops, denoted by “F”, allow for greater internal storage, organization and flexibility. Knapheide Flip Tops have a slammable top lid door and a convenient one-hand release located in the horizontal compartment.

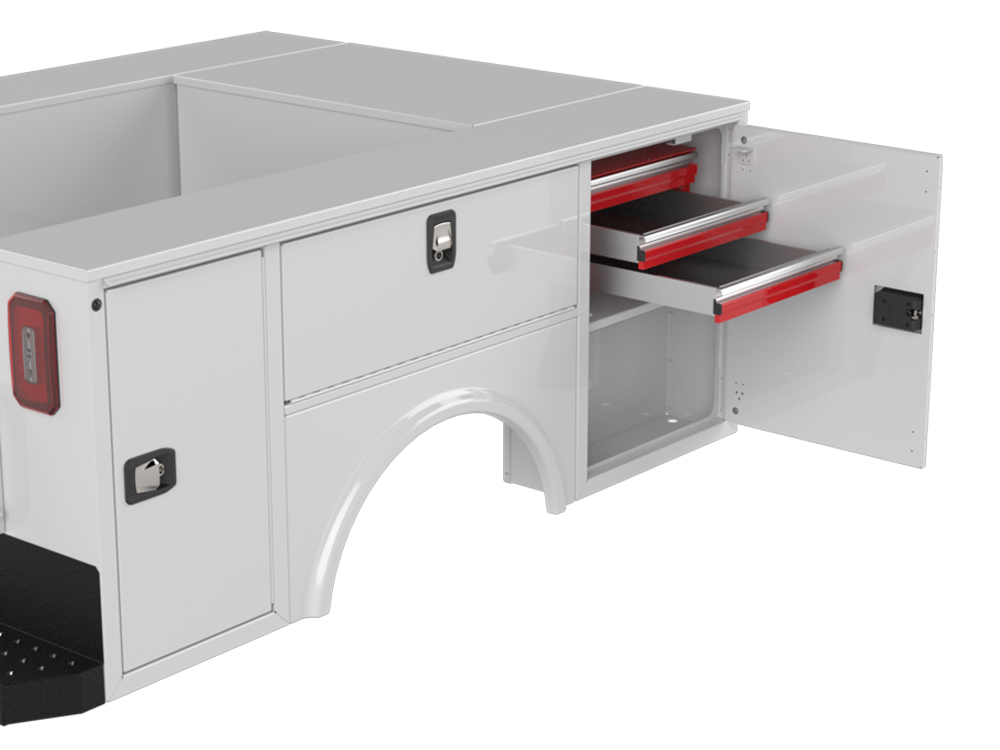

Plus 50 Compartments
A transverse compartment in the curb side front vertical extending to the street side compartment back. Aluminum drawers are featured with a variety of options or drawer delete. Plus 50 models have 50 percent more effective storage capacity. Drawers are rated 250-lb. and have dividers every 4”.
Aluminum Treadplate Trim
1/8" treadplate overlay can be added to top of compartments, compartment backs, bulkhead or top of slam tailgate. Compatibility may vary depending on body or other options.
Utility Rack
Compatible with the J, FJ, FJ40 and LPJ models in 96, 108 and 132 series service bodies. Steel construction with 1,000 lb. load capacity. Powder-coated for durability. Available in black or white.
Overhead Ladder Rack
Designed to accommodate many different body lengths and widths. Maximum load capacity 300 lbs.
Side Mount Ladder Rack
Constructed of 1" structural pipe. Includes rubberized nylon belts for securing ladder in stowed position. Maximum carrying capacity is 150 lbs.
Telescopic Sliding Roof
Designed to protect the contents of your cargo area from theft. Available in two or three piece section.
Canopy Roof
Fully enclose your cargo area to protect contents against the elements, theft and vandalism. They come in three heights and straight sides with stationary or telescopic roof options available. Side ladder racks and access doors on the rear and sides can be applied upon request as well.
Straight Bumper
Straight bumpers are a no-frills standard steel bumper. These bumpers feature galva-grip tread and are available painted or with a black KnapLiner coating (as seen in image).
KnapLiner required on aluminum body applications.
Step Bumper
Step bumpers feature an inset step for easier entry into cargo areas. These bumpers feature galva-grip tread and are available painted or with a black KnapLiner coating (as seen in image).
KnapLiner required on aluminum body applications.
Hitch Recess Bumper
Recess bumpers allow for hitch towing and are offered in galva-grip or grip strut (Combo Body excluded) tread material. Paint or black KnapLiner coating (as seen in image) finishes available. KnapLiner required on aluminum body applications.
Workbench Bumper
Heavy duty bumper that provides a 21”x94” work surface. Contains a through compartment with access doors on both sides. Bumper includes vice stand kit and grip tape strips. Available with and without Class V, 18,000 lb. rated receiver hitch.
Liftgate Bumper
Liftgate bumpers are designed to be paired with specific liftgate models. These bumpers feature galva-grip tread and are available painted or with a black KnapLiner coating (as seen in image).
Receiver Hitch
Bolt-on, Class V hitches with up to 21,000 lb. max trailer weight and 4,200 lb. max tongue weight. Hitches have either 2” or 2.5” (depending on model) square shank and are compliant with SAE J3352 performance standards.
Modular Cab Guard
Protects cab and serves as additional platform for working accessories. Designed and pre-configured to match height of your chassis. Additional options available. Powder-coated for durability.
Cargo Tie Downs
Ideal for safely securing heavy equipment in your cargo area. Zinc-plated. Rated at 2,000 lbs. Number of tie downs and layout may depend on body type and length.
E-Track
Secure large items in open or enclosed cargo area. Available as factory install with one row or two rows of E-track. Multiple add-on accessories available. Appearance may vary depending on body.
Rear Access Door
Rear access door with full-length shelf for convenient storage and access to tools. Available with or without full length shelf cutout. Availability may vary depending upon body options.
Grab Handles
Steel construction. Zinc or chrome plating. Available for most Knapheide Service Bodies.
Compartment Lighting
LED strip lighting ideal for Service, Utility or Gooseneck body. Controlled and operated via vehicle up fitter switch. Switch kit and door activated switch kits also available. Multiple lengths available.
Rock Guards
Aluminum trim added to front corners of Service Body for increased aesthetic. Aluminum treadplate option available.
T-Handles
3 point T-Handles ensure your compartment doors stay closed and are individually lockable.
Master Locking System
Lock all compartments on one side with one device/action. Operates independent of your key locks for added security.
Codeable Padlock
Padlock learns your vehicle ignition key code and eliminates the need to carry both ignition key and padlock key. Pairing these devices with the master locking system is the most popular application.
Power Locks
Available option for Service Bodies and KUV models using Ford E-Series or GM Express/Savana cutaway chassis. Standard feature on KUV models using Ford Transit or Ram ProMaster cutaway chassis. Integration with chassis keyless entry system (if equipped) allows for both body and cab to be operated with chassis key fob.
Aluminum Mechanics Drawers
Aluminum alloy construction manufactured by C-Tech. Available in multiple configurations. Rated for maximum of 250 lbs. Appearance may vary.
Steel Mechanics Drawers
Steel construction, 7-drawer cabinet available in multiple configurations.
Pull-Out Shelves
Provides easy access and storage for tools
Pull-Out Tray
Heavy duty pull-out tray rated at 500 lb. capacity.
Flex Steps
These bumper or tailshelf mounted accessories with grip strut tread provide easier access to the cargo area.
Cable Steps
Available in various lengths for bodies with higher bumpers. Safely access the cargo bed area of the body without need to jump up or down, improving ease-of-use and safety. Decorative covers optionally available.
Wheel Chock Holders
Single or double chock holders located around the wheel well for convenient access and storage
Spare Tire Retainer
Accepts tires as small as 14" up to 22.5", with up to 6" of vertical adjustment. Can be mounted on the street side of the cargo positioned close to the front.
Bottle Gas Retainer
Added protection and security for transport of bottled materials. Compatibility may depend on body type and other selected options.
Mechanics Vise Bracket
Compatible with most Service, Utility and Line bodies. Steel construction. Mounting surface pre-punched to accommodate multiple sizes of Wilton vise.
Meter Tray with Holes
Keep meters stored and organized separately from other tools for quick and easy access
Crane Reinforcement Kit
The crane reinforcement kit option allows you to incorporate a crane up to 4,000 lb. capacity (16,000 ft-lb. max.) onto the rear curb side corner of your body. Compatibility may vary based on body or options selected.
Torsion Box Floor
Minimize torsional stress to the body. Ideal for severe off-road environments where chassis torsional forces could be severe.
Add-ons
Air Compressors
All-In-One Mobile Power Systems
Power Inverters
Power Take Off Units
Welders
Grill Guards
Steps
Cranes and Outriggers
Liftgates
Trailer Hitches
Winches
Truck Bed Slides
Truck Bed Liners
Backup Alarms
Snow Plows
Salt Spreaders and Brine Sprayers
Fuel Transfer Tanks
Lube Skids
Air Compressors
Field technicians use air compressors for diverse tasks, including powering pneumatic tools such as impact wrenches and drills, inflating tires, cleaning equipment with air blow guns, spray painting, conducting emergency repairs, and performing testing and diagnostics. The versatility of compressed air allows the operator to address a wide range of maintenance and repair tasks on-site, enhancing efficiency and enabling roadside assistance for vehicles, machinery and other equipment.
All-In-One Mobile Power Systems
Technicians rely on all-in-one mobile power systems on service trucks to offer a compact solution that combines a generator, air compressor, welder, and occasionally a battery charger into a single unit. This mobile setup takes up less space than individual sets of equipment and ensures dedicated power is delivered for electrical tools, welders, pneumatic devices, and various electronics. This makes the operator capable of performing a range of servicing tasks with greater efficiency on the jobsite.
Power Inverters
Technicians use power inverters on work vehicles for converting direct current (DC) electricity from the vehicle's battery into alternating current (AC) electricity to charge or operate power tools, laptops, cellphones, lighting, and other electronic devices one may use in field work. A dependable power source is essential for seamless on-the-go customer and business communication, as well as for efficiently executing installation, maintenance, and repair tasks that rely on electricity.
Power Take Off Units
These transmission, engine or driveline mounted units harness mechanical power from the vehicle's running engine to operate many kinds of onboard equipment a technician may use on the jobsite. A PTO may power hydraulic systems in heavy lifting or pulling equipment like cranes, winches and hoists, air compressors used in pneumatic tools, welders, or produce electricity for generators to operate power tools. They are most popular in applications that demand high power output and efficiency.
Welders
Fabricate or modify metal on-the-go with portable or mounted, fuel or engine driven welding equipment. This is useful for creating custom or replacing worn components, fixing structural issues, securing loose parts, or addressing damages to equipment and other items, whether for your own needs or as service to others. Knapheide can provide guidance, procure, and install the most suitable welder, factoring in materials frequently worked on, their thickness, and the technician's skill level.
Grill Guards
The primary purpose of grill guards is to provide protection to the vehicle's front end, especially the grill and headlights, from potential damage caused by collisions with animals, debris, or other objects. In rural or off-road settings, work vehicles are more susceptible to encounters with wildlife, and they help minimize the risk of damage. Grill guards also often come with mounting points, allowing work vehicles to be equipped with auxiliary lighting, winches, or other accessories.
Steps
Work vehicles are often large and elevated, making it challenging for individuals to access the cab or cargo area without assistance. Steps play a crucial role in providing a convenient means for drivers and operators to enter and exit while reducing the chances of physical strain or injury due to slipping or falling. The fixed or retractable accessories, available in varying lengths, allow for a more productive work environment for those interacting with these vehicles on a regular basis.
Cranes and Outriggers
Cranes are mechanical arms mounted on commercial vehicles for lifting and maneuvering large or heavy objects around the jobsite. They come in various sizes and capacities and are often accompanied by outriggers, extendable supports that prevent potential tip-overs. This empowers commercial vehicles to facilitate equipment or component hoisting, holding of items at substantial heights, and more. These capabilities would be significantly hampered, or even rendered impossible otherwise.
Liftgates
These rear or side mounted platforms assist in the loading and unloading of goods, typically heavy or large items, from ground level to the cargo area of the vehicle or vice versa. The incorporation of liftgates significantly enhances operational efficiency by streamlining these tasks, thereby minimizing the time and labor demands on users. They reduce the inherent risks associated with manual handling, contributing to a safer environment and mitigating the risk of injuries among personnel.
Trailer Hitches
Hitches are rear mounted connectors on commercial vehicles that allow operators to safely tow trailers filled with cargo. These are crucial because they significantly expand a vehicle's hauling capacity, enabling them to transport large quantities of goods, equipment, or materials needed for various business operations. Without hitches, commercial vehicles would be limited to their own bed capacity, hindering efficiency and potentially requiring additional trips.
Winches
Commercial vehicles, especially those engaging in off-road activities, may encounter challenging terrains or obstacles. A winch can be used for self-recovery or to assist other vehicles by providing the necessary pulling power to get them out of difficult situations. They can also be valuable in reaching, lifting or positioning a range of loads including heavy equipment, holding up structures temporarily, or handling large or bulk amounts of materials around the jobsite.
Truck Bed Slides
Truck bed slides are drawers or trays that fit into the bed or cargo area of a vehicle and slide outward to allow users better access to contents inside. The advantages of these accessories extend beyond convenience. They promote safety by mitigating the risks of slips, trips, and falls associated with climbing into the truck bed. Additionally, they enhance efficiency by allowing workers to swiftly access tools and materials, thereby expediting tasks and improving productivity.
Truck Bed Liners
Truck bed liners are protective layers installed in the truck bed to shield it from scratches, dents, and corrosion. They are crucial for commercial vehicles because they constantly haul cargo, making them more prone to wear and tear. These spray-on or drop-in surfaces, which can be made from various materials, prevent shifting cargo from potentially damaging the bed during transit or loading. Additionally, their easy-to-clean nature offers protection against debris and chemical spills.
Backup Alarms
Backup alarms, also known as reversing alarms, are crucial safety devices for vehicles, especially those with large blind spots or frequently operating in areas with high foot traffic. They emit an audible warning sound when the vehicle is in reverse gear, alerting nearby pedestrians, cyclists, and other drivers of the vehicle's movement and potential danger zone. This helps to prevent collisions and accidents, particularly in situations where the driver might not have a clear view behind them. Knapheide and it's partners upfit many of the heavy equipment, industries and vehicles where backup alarms are an integral piece of safety equipment.
Snow Plows
When others count on you during winter weather conditions, you can count on Knapheide Truck Equipment Center to provide you with the highest quality snow removal products like pushers, plows, and blades that will help you make easy work of the toughest snow removal jobs.
Salt Spreaders and Brine Sprayers
Spreaders and sprayers efficiently distribute dry granular salt or liquid brine onto roads and paved surfaces, preventing the formation of ice and enhancing traction. These specialized devices improve safety by reducing the risk of accidents caused by slipping or sliding and are more efficient than manual spreading methods. They are crucial for those responsible for maintaining roadways during winter weather, ensuring that travel remains safe and efficient even in challenging conditions.
Fuel Transfer Tanks
Adding a transfer tank to your commercial vehicle can transform it into a portable fuel station. These are often mounted in a bed or cargo area and are used to transport extra diesel or other fuels to allow extended operating range, convenient on-site refueling for heavy equipment, and eliminates the need for frequent trips to the gas station--saving time and money.
Lube Skids
Add mobile maintenance and lubrication convenience, portability and versatility to your commercial vehicle with the addition of a lube skid. These units are typically mounted within a commercial vehicle's cargo and are designed for servicing other commercial vehicles in the field with grease, lubricants and other fluids.
Specifications
Standard Models
Model 500 Series
Model 600 Series
Model 700 Series
Body Length (Nominal)
Body Height
Body Width
Compartment Depth
Floor Width
Net Weight (lbs)
40" CA, Single Wheel - 1999 or later Ford Extended or Crew Cab with pickup box removal only
580
680
780
80"
40"
78"
14.5"
49"
875
680LP
780LP
80"
36"
78"
14.5"
49"
827
680F
780F
80"
37.25"
78"
14.5"
49"
942
680F40
780F40
80"
41.25"
78"
14.5"
49"
989
42" CA, Single Wheel - 2001 or later GM Extended or Crew Cab with pickup box removal only
582
682
782
82"
40"
78"
14.5"
49"
924
682LP
782LP
82"
36"
78"
14.5"
49"
876
682F
782F
82"
37.25"
78"
14.5"
49"
990
682F40
82"
41.25"
78"
14.5"
49"
1040
56" CA, Single Wheel - GM C/K series, Ford and Ram chassis cab or pickup box removal
596
696
796
96"
40"
78"
14.5"
49"
1048
596LP
696LP
796LP
96"
36"
78"
14.5"
49"
992
596F
696F
796F
96"
37.25"
78"
14.5"
49"
1125
596F40
696F40
796F40
96"
41.25"
78"
14.5"
49"
1181
596D38
696D38
796D38
96"
40"
78"
20"
38"
1064
696D38LP
96"
36"
78"
20"
38"
1005
696D38F
796D38F
96"
37.25"
78"
20"
38"
1142
56" CA, Dual Wheel - GM C/K series, Ford and Ram with pickup box removal
596D54
696D54
796D54
96"
40"
94"
20"
54"
1205
696D54LP
96"
36"
94"
20"
54"
1146
596D54F
696D54F
796D54F
96"
37.25"
94"
20"
54"
1279
696D54F40
96"
41.25"
94"
20"
54"
1339
60" CA, Single Wheel
5108
6108
7108
108"
40"
78"
14.5"
49"
1147
5108LP
6108LP
7108LP
108"
36"
78"
14.5"
49"
1094
6108F
7108F
108"
37.25"
78"
14.5"
49"
1239
6108F40
108"
41.25"
78"
14.5"
49"
1295
60" CA, Dual Wheel
6108D
7108D
108"
40"
89"
20"
49"
1273
6108DF
108"
37.25"
89"
20"
49"
1363
6108DF40
108"
41.25"
89"
20"
49"
1417
5108D54
6108D54
7108D54
108"
40"
94"
20"
54"
1306
6108D54H46
108"
46"
94"
20"
54"
1411
6108D54H60
108"
60"
94"
20"
54"
1647
6108D54LP
108"
36"
94"
20"
54"
1243
6108D54F
7108D54F
108"
37.25"
94"
20"
54"
1391
5108D54F40
6108D54F40
7108D54F40
108"
41.25"
94"
20"
54"
1452
84" CA, Dual Wheel
6132D
7132D
132"
40"
89"
20"
49"
1552
6132DF
132"
37.25"
89"
20"
49"
1671
6132DF40
132"
41.25"
89"
20"
49"
1744
6132D54
7132D54
132"
40"
94"
20"
54"
1590
6132D54H46
132"
46"
94"
20"
54"
1709
6132D54H60
132"
60"
94"
20"
54"
1790
6132D54LP
132"
36"
94"
20"
54"
1518
6132D54F
7132D54F
132"
37.25"
94"
20"
54"
1710
6132D54F40
132"
41.25"
94"
20"
54"
1785
108" CA, Dual Wheel
6157D54
157"
40"
94"
20"
54"
1920
81" CA Ram Promaster
6129-RP
129.25"
43"
83"
14.5"
54"
1505
82.5" CA Ford Transit
6129-FT
129.25"
43"
83"
14.5"
54"
1503
85.2" CA Dual Wheel Sprinter
613249-SP
133.25"
40"
78"
14.5"
49"
1523
86.5" CA (Reg Cab) / 88.5" CA (Crew Cab) Isuzu NPR, GM-W
