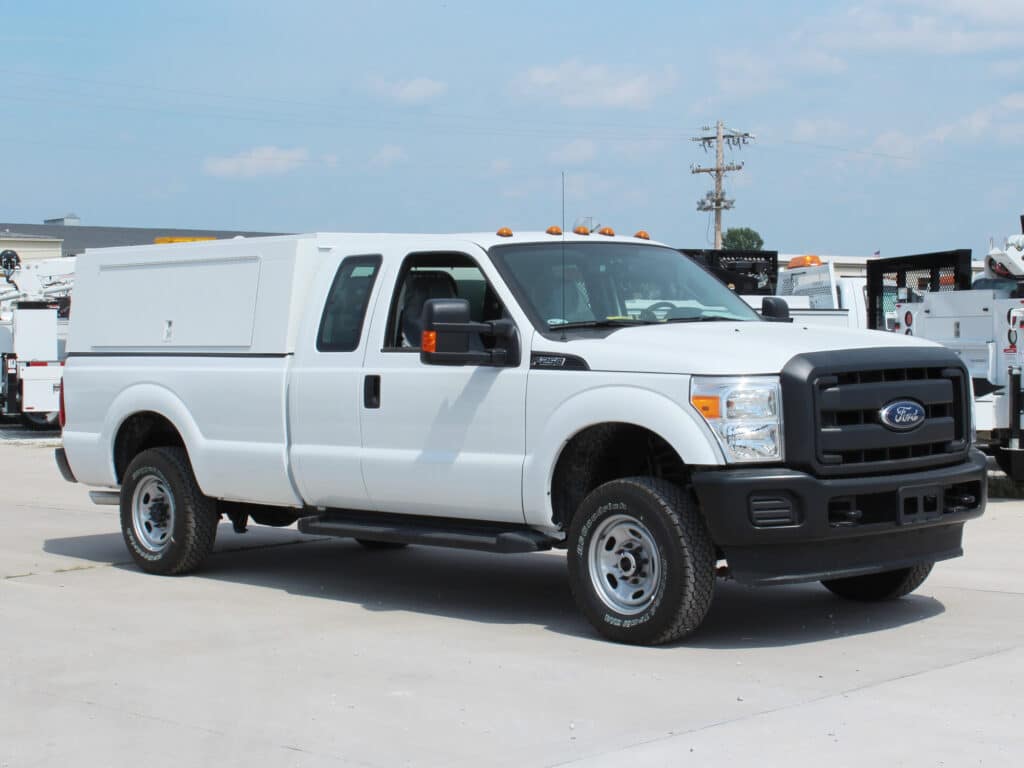

The Toughest Truck Topper Available
- Constructed from fully welded galvanneal steel.

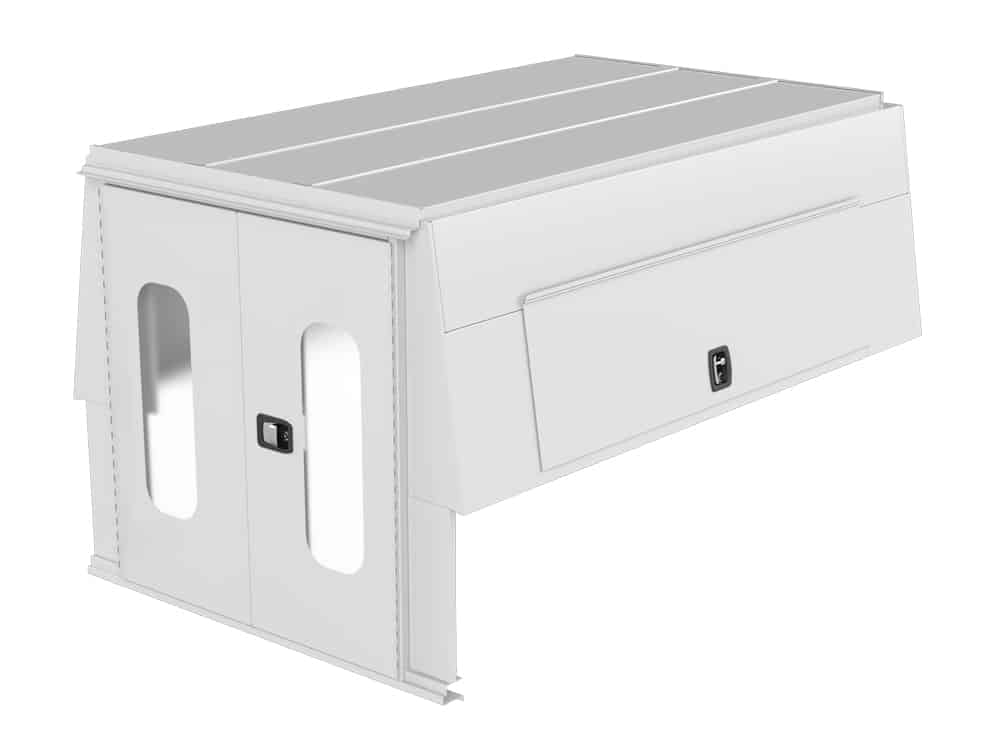

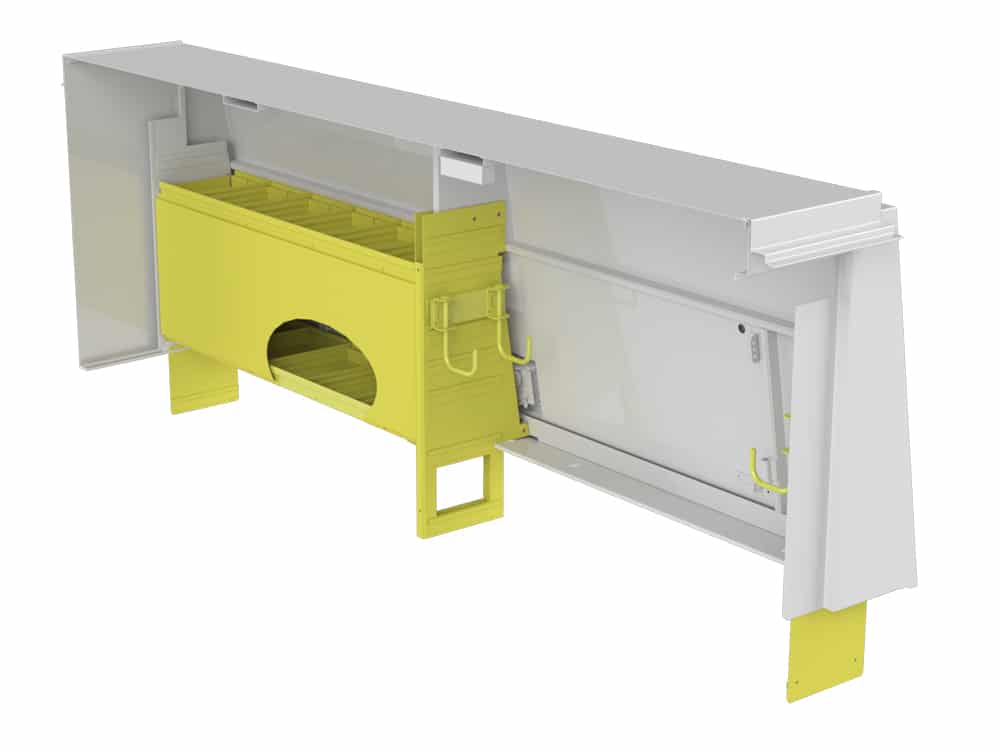

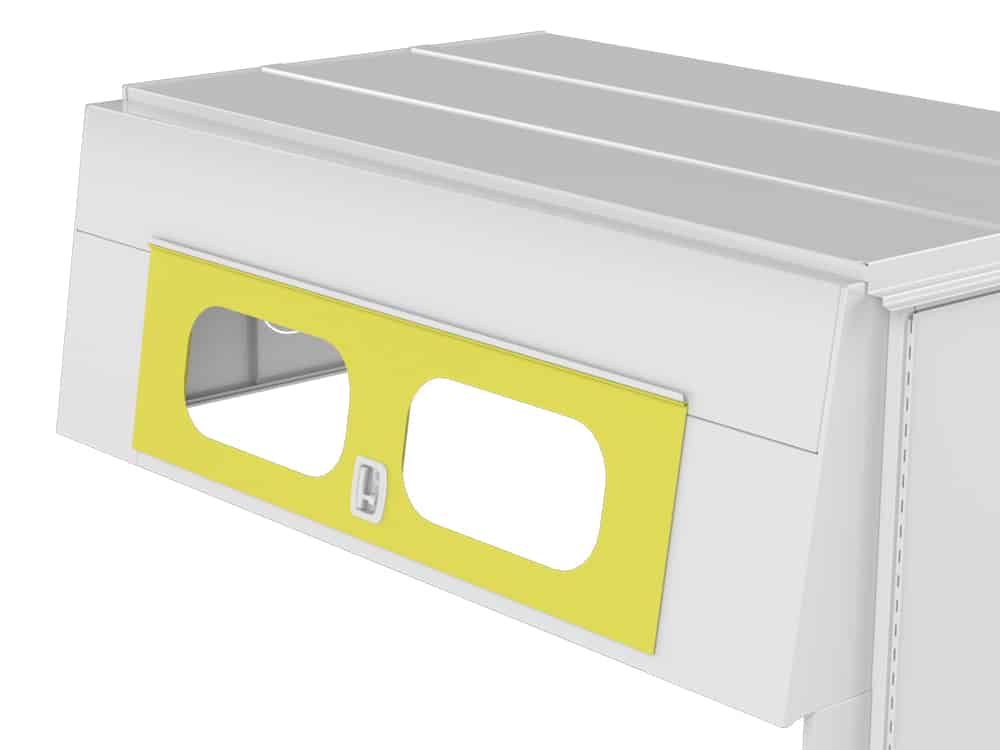

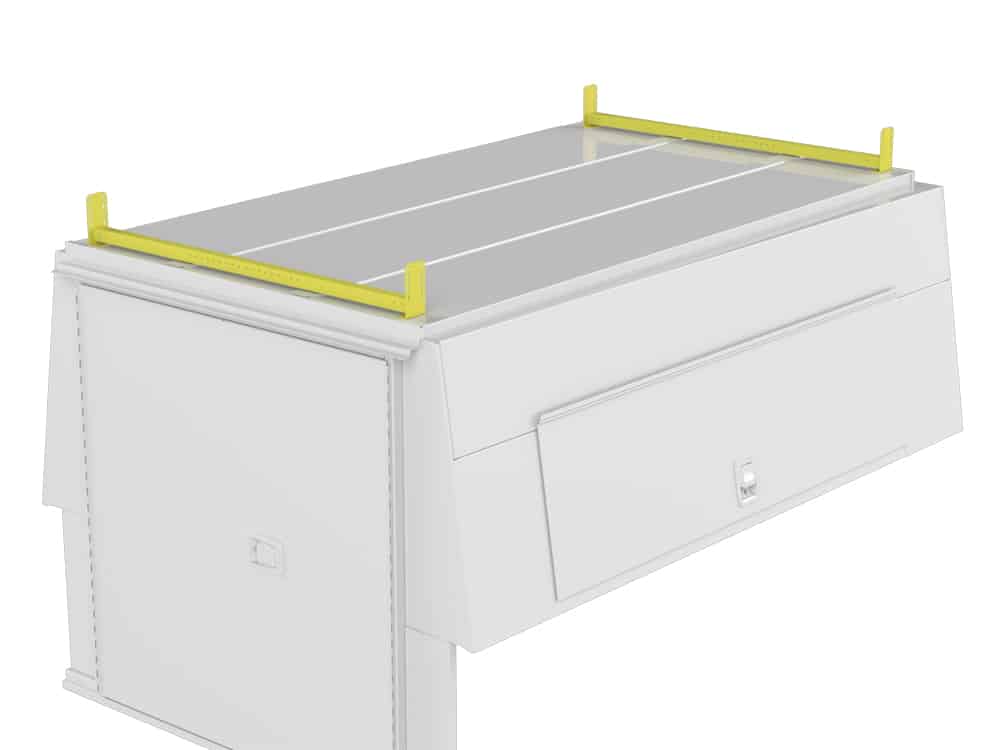

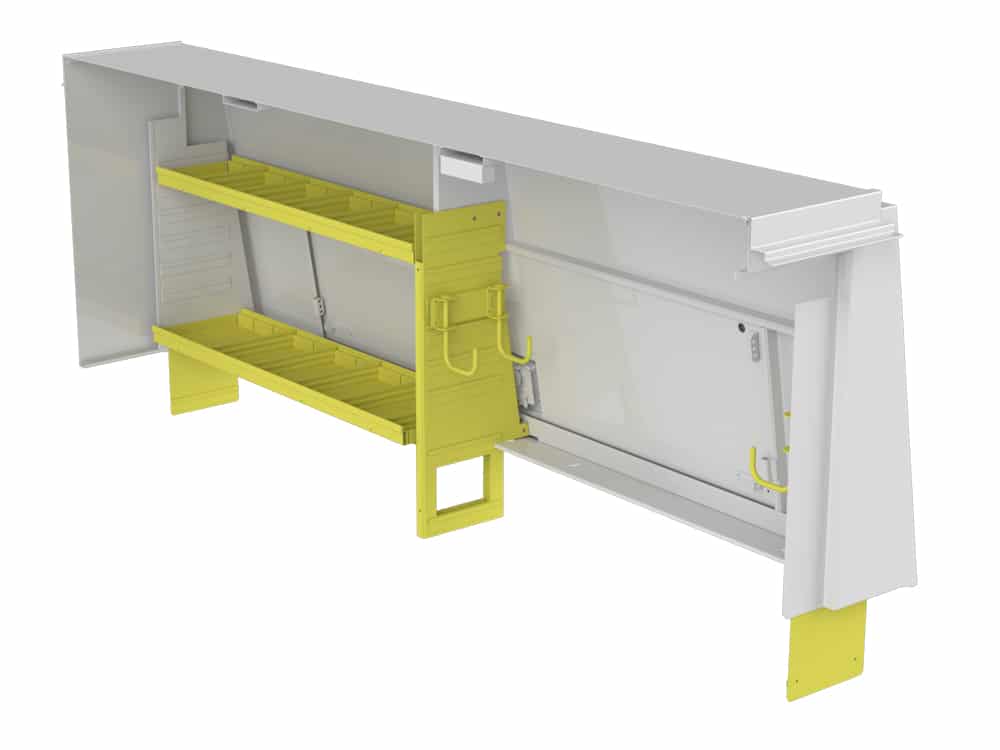

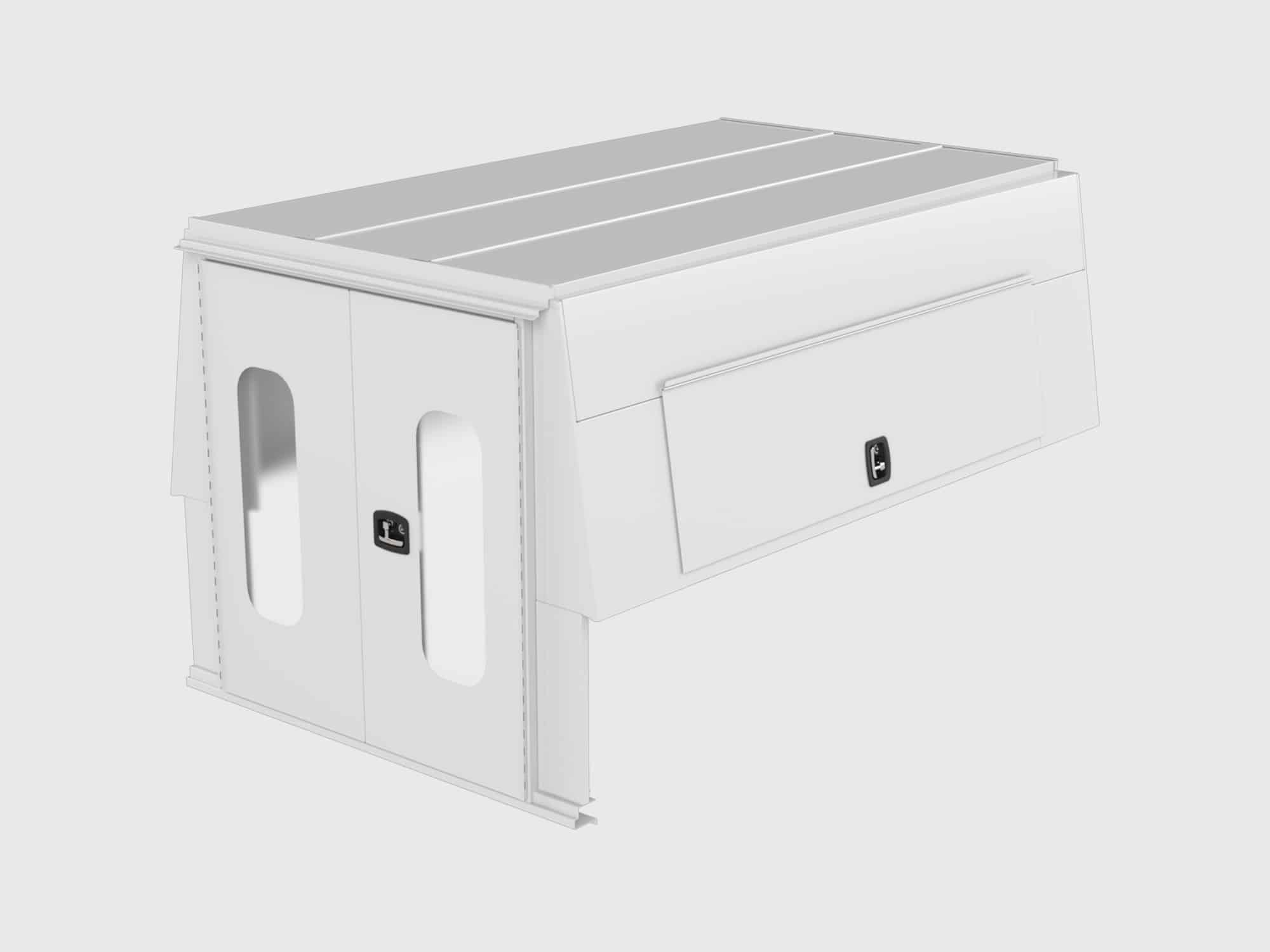

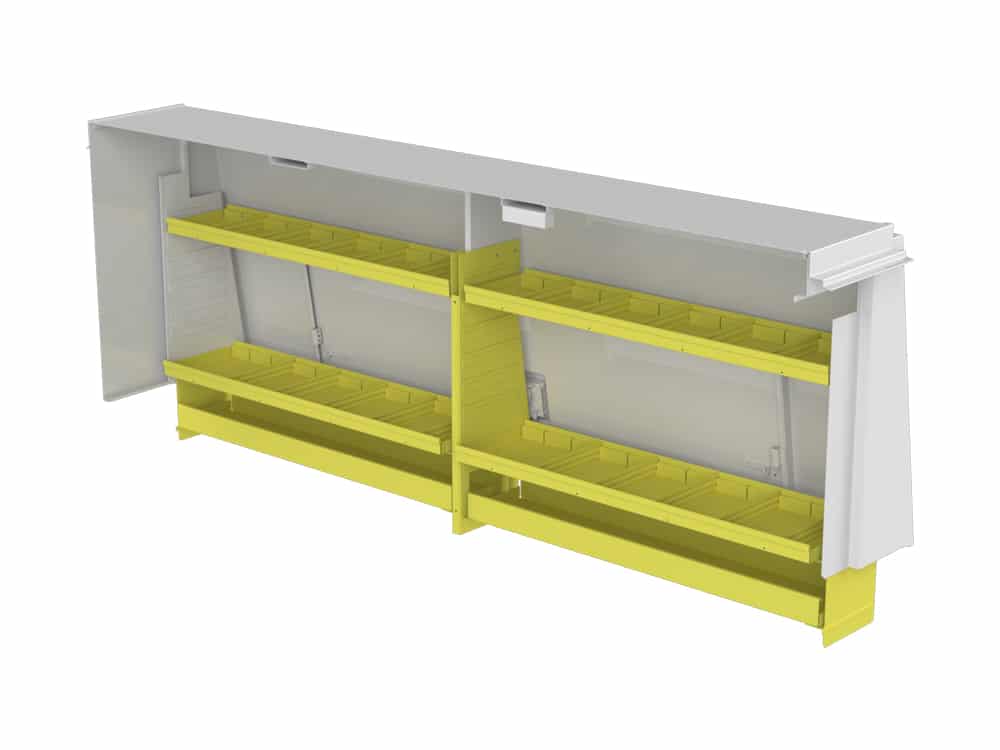

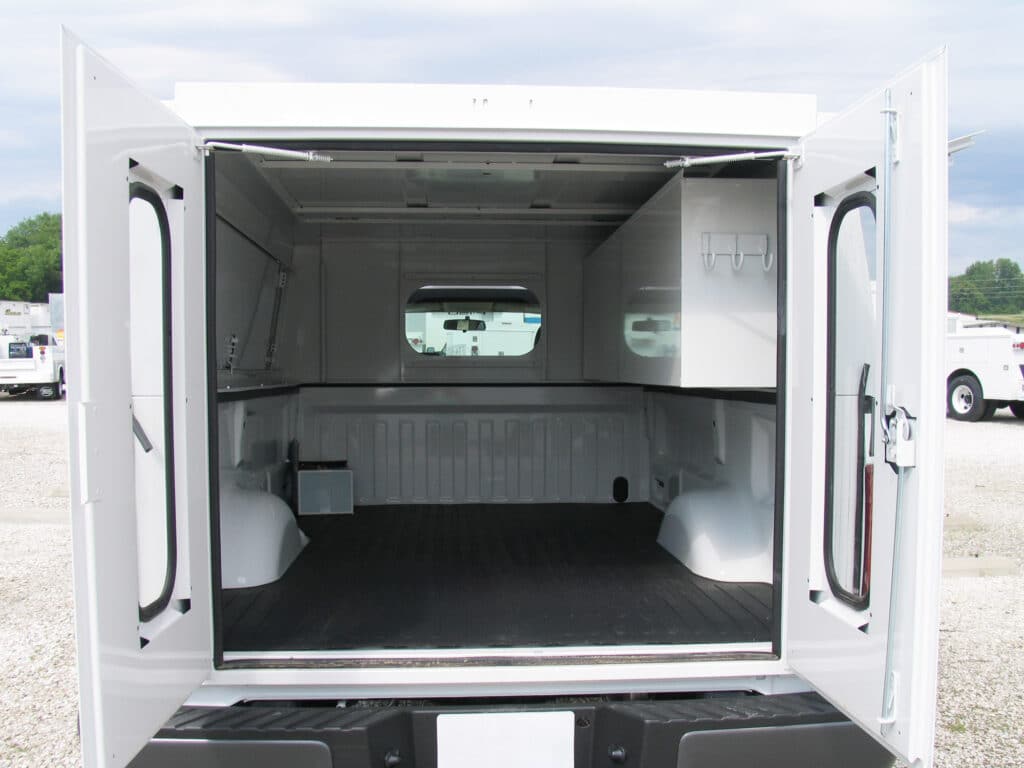

- Bed enclosure with side and rear doors and optional windows, shelving, ladder racks, and dome lighting offered.
- Models available in 25 and 33-inch heights and 75 to 99-inch lengths.
- Designed for select 2015 and newer pickups with factory bed.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!
KnapKap HDS Truck Caps
KnapKap HDS Truck Caps
Features
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Body Shell
Rugged 14-gauge, two-sided A-40 galvanneal steel body shell with a six year warranty. Complete undercoating provides an additional layer of corrosion protection.

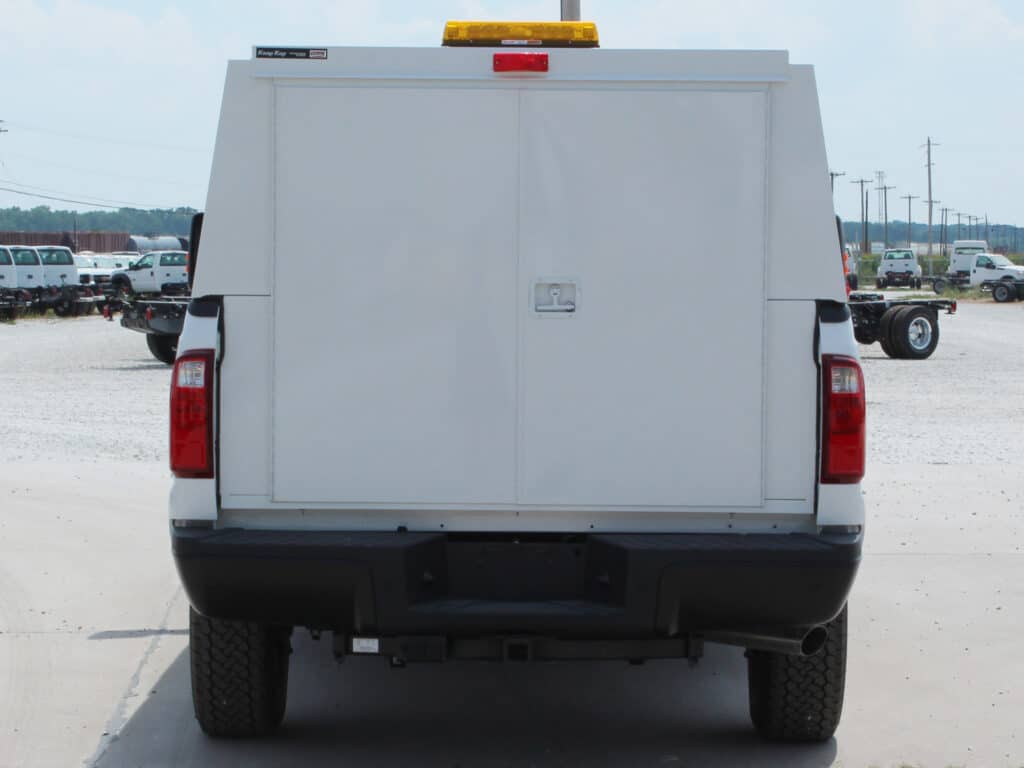

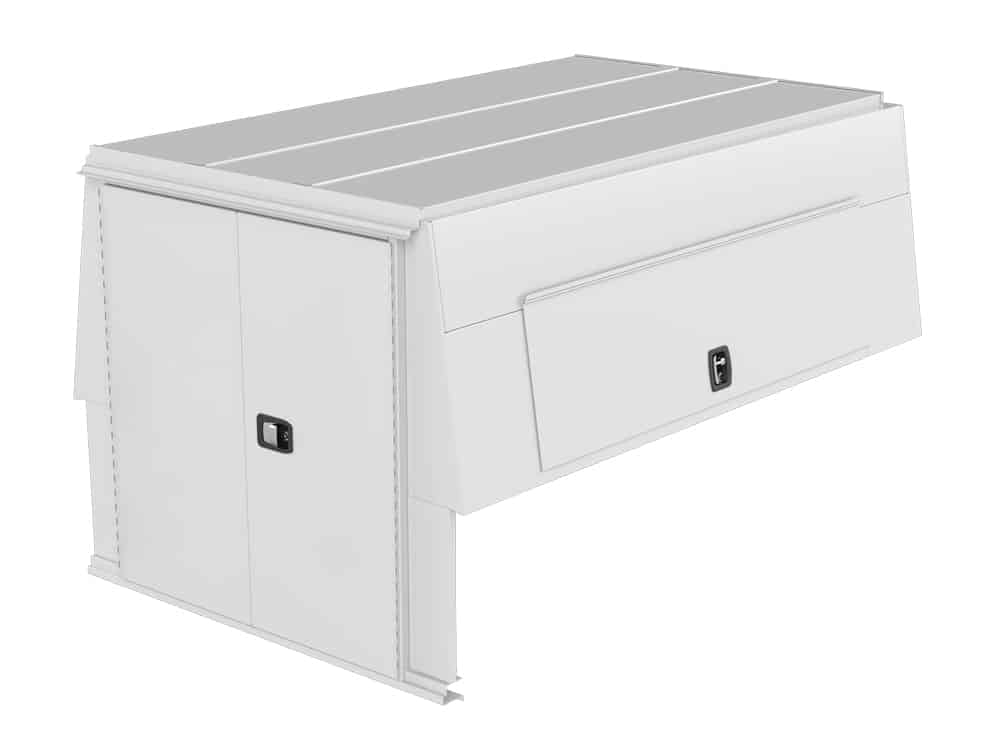

Rear Door Automotive Latch
This 6-year warranty backed automotive quality, paddle activated rotary latch make opening and closing the rear door easy. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.

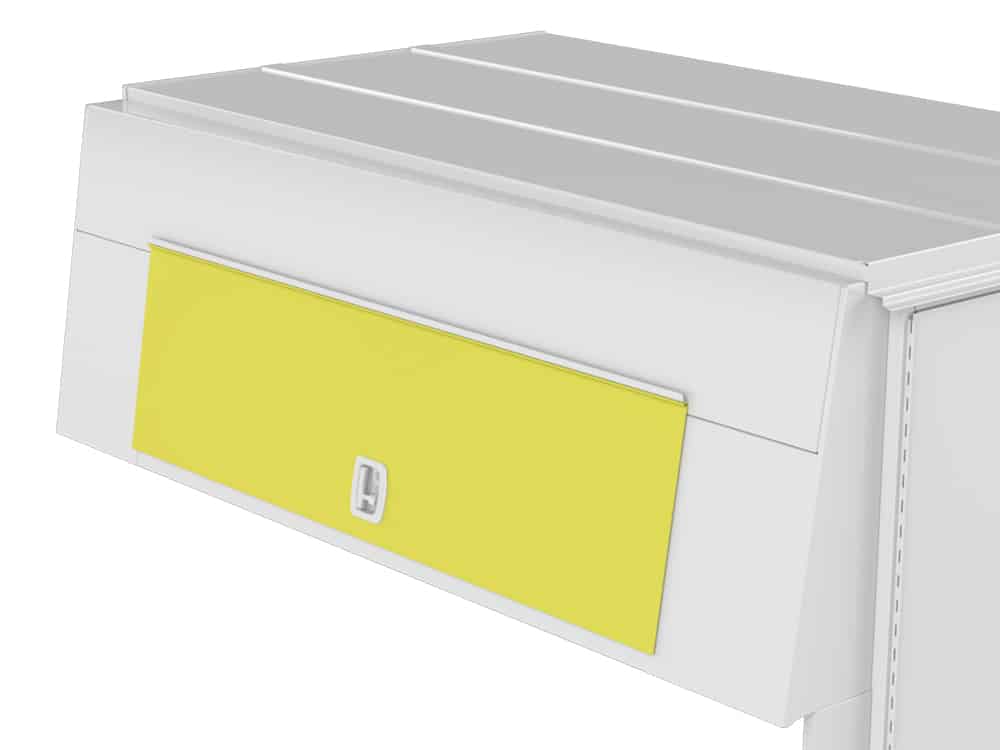

Side Door T-Handles
3 point T-Handles ensure your side doors stay closed and are individually lockable. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.

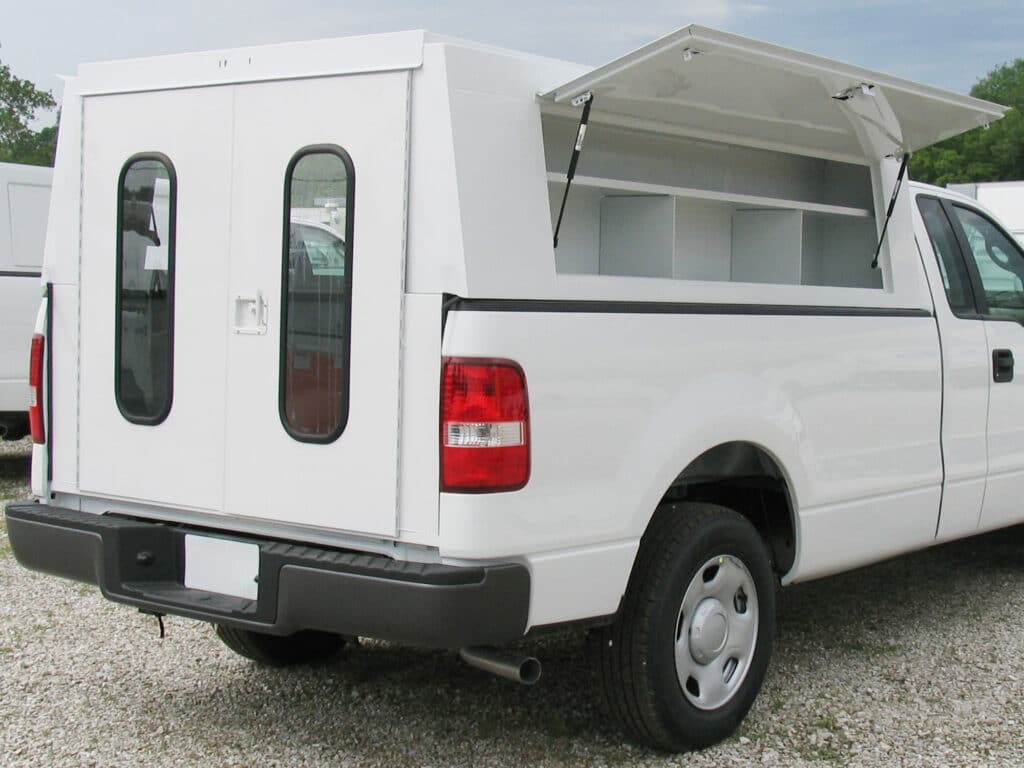

Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.
Brake Light
Brake light located above the rear doors to supplement pickup tail lights.
Body Options
Specifications
Standard Models
Model Applicable Pickup - Body Length Dimensions - Height Dimensions - Width Dimensions - Length Net Weight (lbs) Shell (Without Rear Door) KKHDSL-FL Full size long bed - Ford 2015 & later F150 25" 73.00" F 68.50" R 99.50" 406 KKHDSH-FL Full size long bed - Ford 2015 & later F151 33" 73.00" F 68.50" R 99.50" 455 KKHDSL-SL Full size long bed - Ford 2017 & later SD F250, F350 25" 76.00" F 71.00" R 99.50" 416 KKHDSH-SL Full size long bed - Ford 2017 & later SD F250, F351 33" 76.00" F 71.00" R 99.50" 466 KKHDSL-GL Full size long bed - GM 2015 & later Silverado / Sienna 25" 71.50" F 69.50" R 99.50" 403 KKHDSH-GL Full size long bed - GM 2015 & later Silverado / Sienna 33" 71.50" F 69.50" R 99.50" 452 KKHDSL-RL Full size long bed - RAM 2015 & later 25" 73.00" F 68.50" R 99.50" 406 KKHDSH-RL Full size long bed - RAM 2015 & later 33" 73.00" F 68.50" R 99.50" 453 KKHDSL-FS Full size short bed - Ford 2015 & later F150 25" 73.00" F 68.50" R 81.25" 361 KKHDSL-SS Full size short bed - Ford 2017 & later SD F250, F350 25" 76.00" F 71.00" R 84.00" 375 KKHDSL-GS Full size short bed - GM 2015 & later 25" 71.50" F 69.50" R 81.25" 358 KKHDSL-RS Full size short bed - RAM 2015 & later 25" 73.00" F 68.50" R 77.50" 354 KKHDSL-CS Compact size short bed - Colorado 2015 & later 25" 65.25" F 61.50" R 75.00" 318 KKHDSH-CS Compact size short bed - Colorado 2015 & later 33" 65.25" F 61.50" R 75.00" 364 KKHDSCL-FL Full size long bed - Ford 2015 & later F150 25" 73.00" F 68.50" R 99.50" 437 KKHDSCH-FL Full size long bed - Ford 2015 & later F151 33" 73.00" F 68.50" R 99.50" 462 KKHDSCL-SL Full size long bed - Ford 2017 & later SD F250, F350 25" 76.00" F 71.00" R 99.50" 448 KKHDSCH-SL Full size long bed - Ford 2017 & later SD F250, F351 33" 76.00" F 71.00" R 99.50" 475 KKHDSCL-GL Full size long bed - GM 2015 & later Silverado / Sienna 25" 71.50" F 69.50" R 99.50" 439 KKHDSCH-GL Full size long bed - GM 2015 & later Silverado / Sienna 33" 71.50" F 69.50" R 99.50" 465 KKHDSCL-RL Full size long bed - RAM 2015 & later 25" 73.00" F 68.50" R 99.50" 437 KKHDSCH-RL Full size long bed - RAM 2015 & later 33" 73.00" F 68.50" R 99.50" 462
Gallery
Literature
| KnapKap Literature | DOWNLOAD |
Images are shown for illustrative purposes only and may not be an exact representation of the product.
