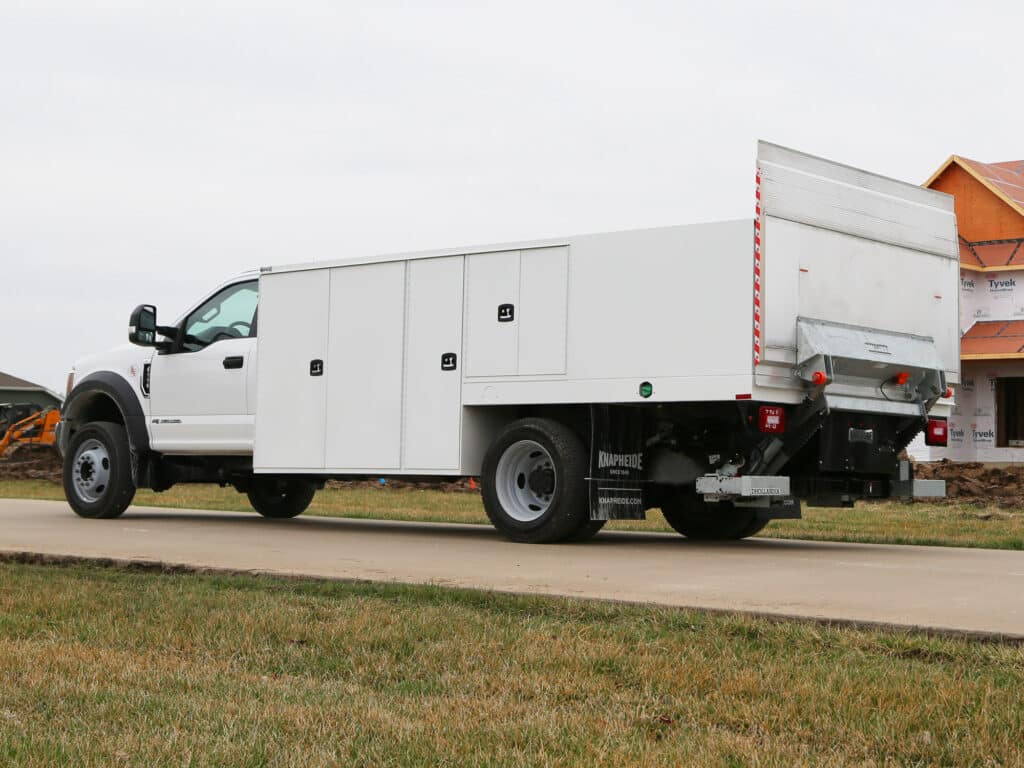

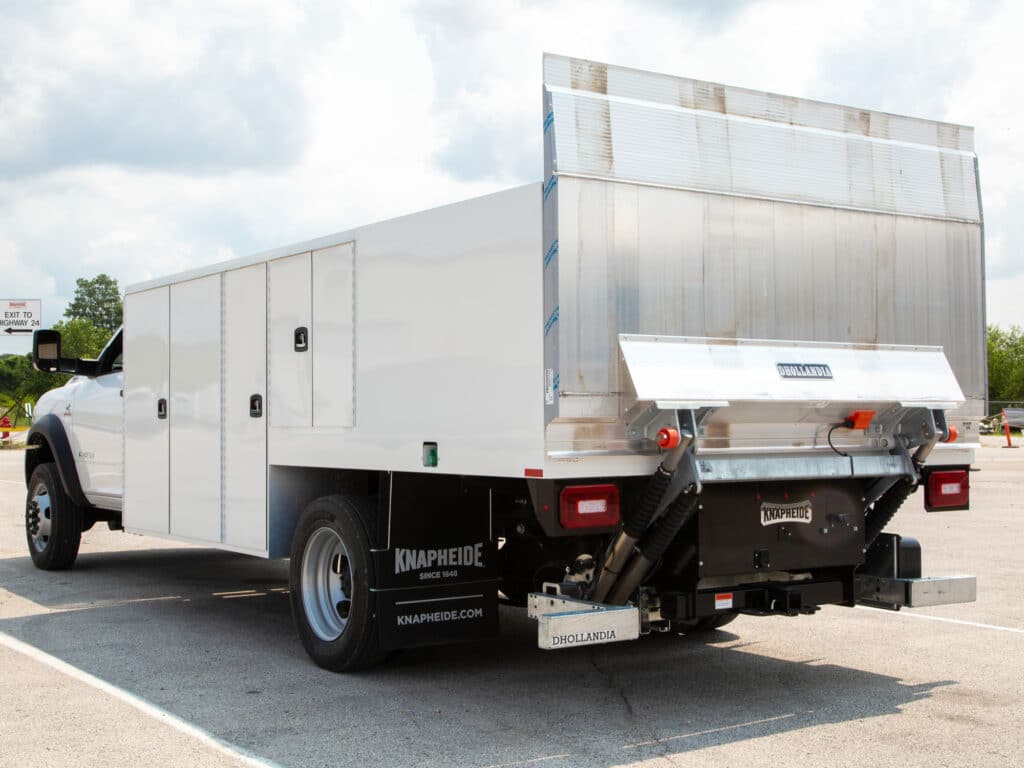

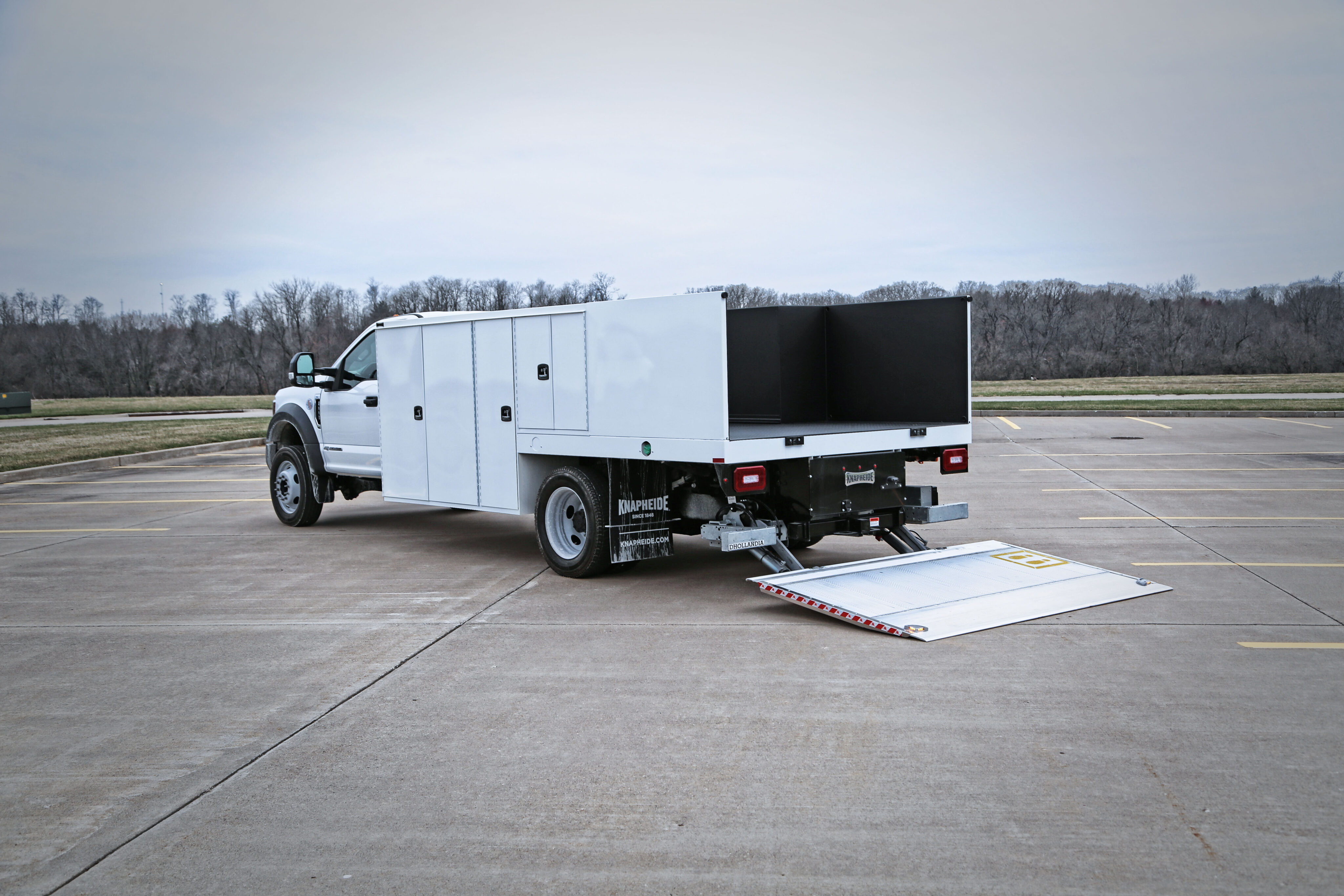

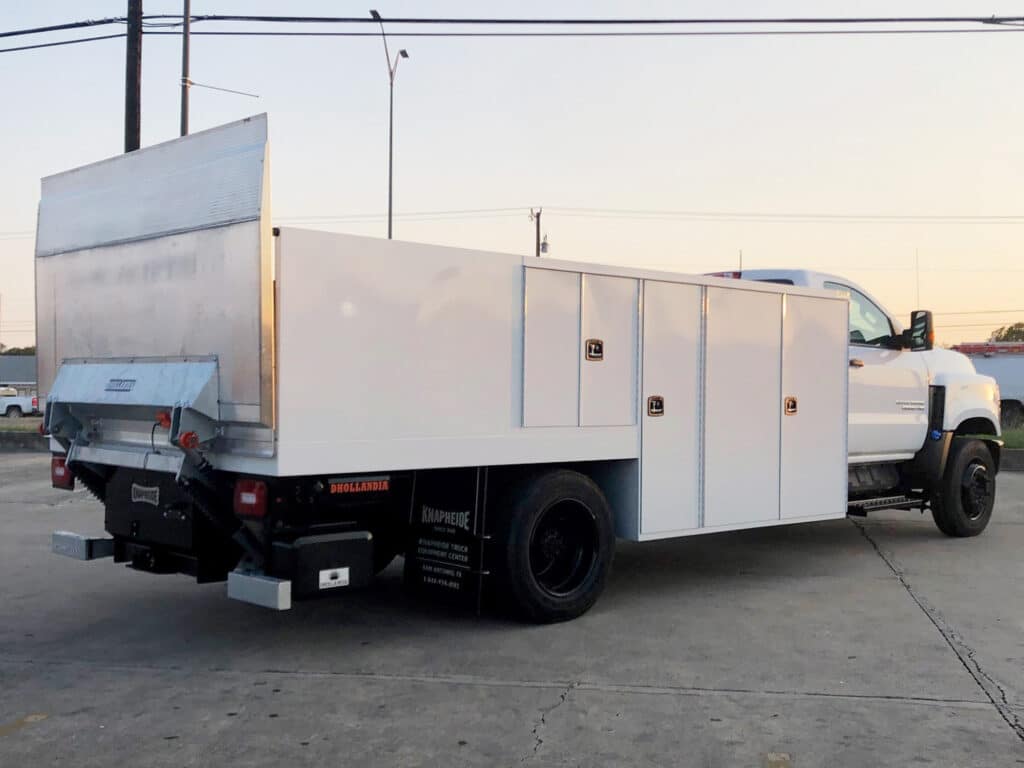

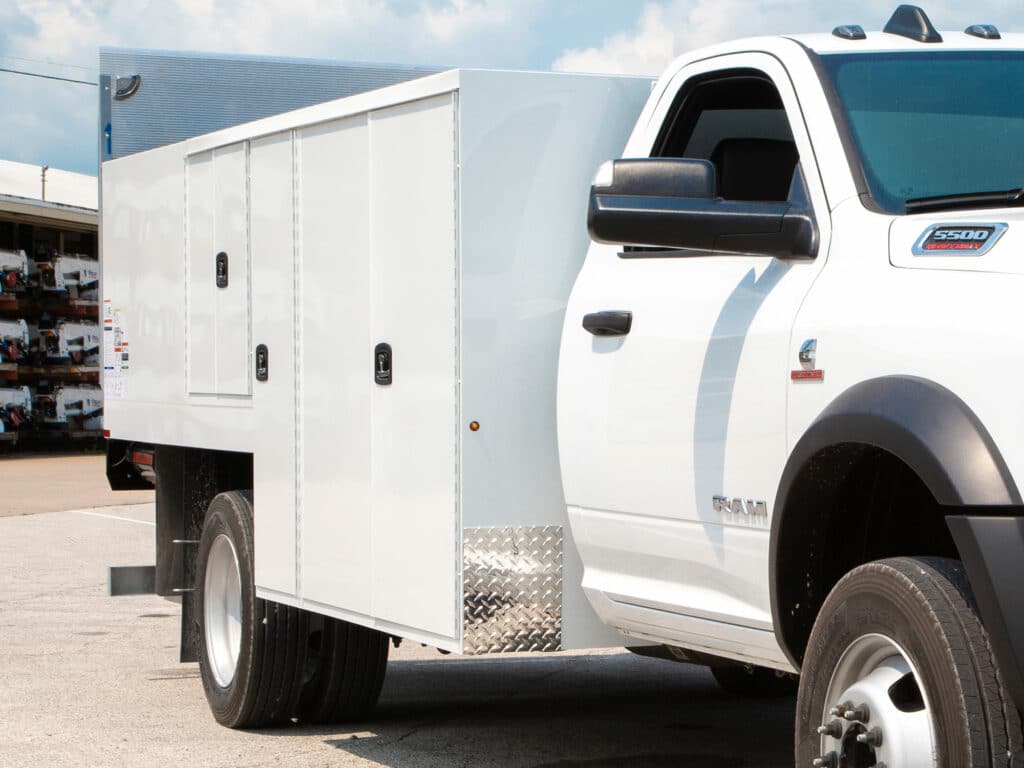

A Heavy Cutting Equipment Hauling Service Truck Bed
- 6 Year Limited Warranty guaranteeing no body rust-through, intact shelving, and fully operable door hinges, latches, and locks when used as directed.
- Constructed from 14 and 20-gauge, A-40 galvanneal steel for unmatched strength and durability.
- Open bed design with heavy saw loading liftgate and streamlined compartments for storing supporting equipment.
- Models available in 12 to 16-foot body lengths.
- Designed for Class 5 and 6 dual rear wheel cab chassis.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!
Saw Trucks
Saw Trucks
Features
Body Shell
Rugged 14-gauge, two-sided A-40 galvanneal steel body shell with a six year warranty. Complete undercoating provides an additional layer of corrosion protection.

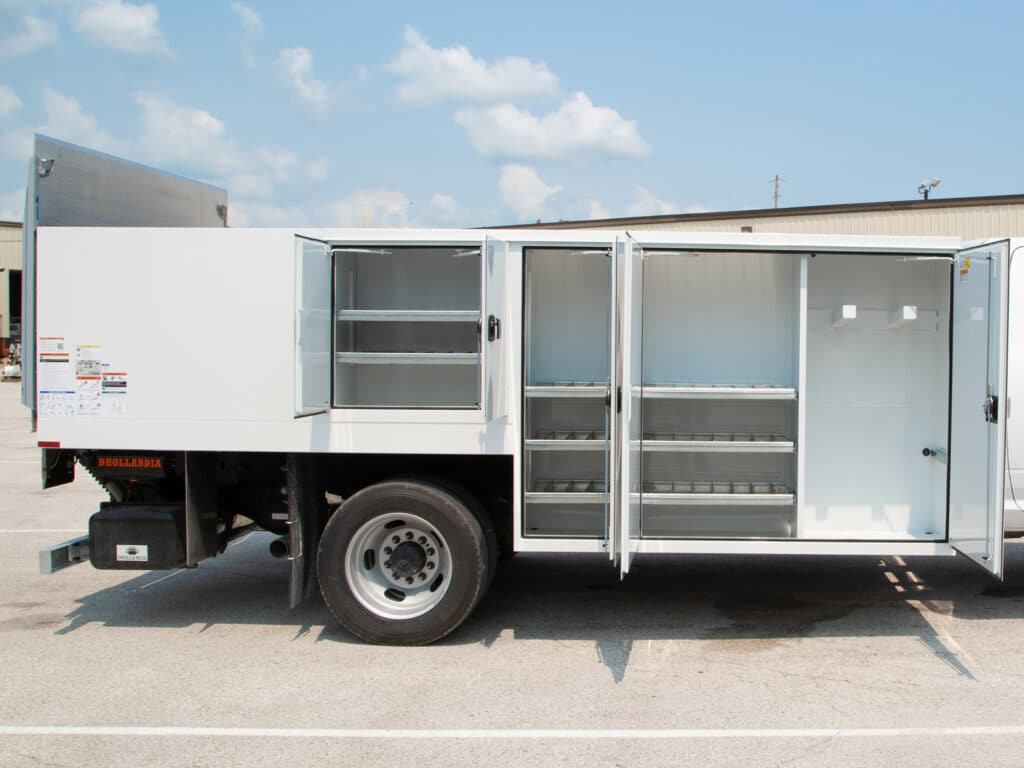

Street Side Compartments
The front 60-inch tall vertical compartment has overlapping doors, one fixed shelf and saw blade holders. On 14 and 16-foot models, a second 60-inch tall vertical compartment with three adjustable shelves is included. Above the rear wheels sits a 36-inch tall compartment with overlapping doors and two adjustable shelves. A fixed, double wall panel then extends from this compartment to the rear of the platform.
Curb Side Compartments
The front 60-inch tall vertical compartment has overlapping doors, three adjustable shelves, and two hose/cord square tube holders. On 14 and 16-foot models, a second 60-inch tall vertical compartment with three adjustable shelves is included. Above the rear wheels sits a 36-inch tall compartment with overlapping doors and two adjustable shelves. A fixed, double wall panel then extends from this compartment to the rear of the platform.

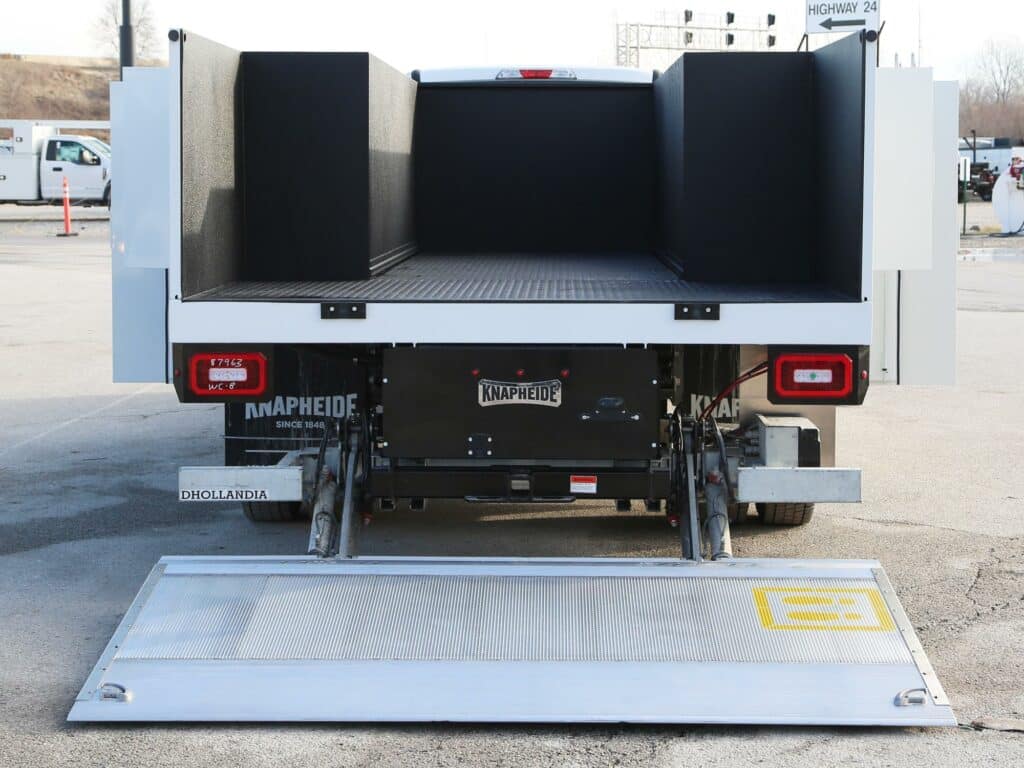

Liftgate
The Dhollandia cantilever liftgate allows for safe and easy ground-t0-bed loading of heavy concrete saws and other cargo weighing up to 3,300 lbs. It stows vertically against the rear of the bed as a tailgate when not in use. Optional pendant control is available upon request.
Receiver Hitch
Bed includes 18,000 lb. rated receiver hitch with 7-way flat trailer plug.
LED Tail Lights
These surface mounted rectangular tail lights feature bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices. Guards inside the rear compartments protect interior wiring and other related components. The tail light’s housing, orientation and placement on the body may vary.
T-Handles
3 point T-Handles ensure your compartment doors stay closed and are individually lockable. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.
Images are shown for illustrative purposes only and may not be an exact representation of the product.
