Gooseneck Flatbeds
Now featuring B&W Turnoverball® hitches rated for 30,000 lb. gross trailer weight and 7,500 tongue weight, PGTB Gooseneck Hitch Truck Beds come loaded with integrated stop, tail, turn and backup lights in both the rear skirt and bulkhead and side rub rails for exceptional functionality and convenience. Choose models for either single or dual rear wheel chassis, along with 8′, 9′ and 11′ body lengths.
Regardless if you’re hauling a horse trailer or hay bales, PGTB Gooseneck Bodies are well-equipped for the task at hand.
Request a Quote
Complete our online quote request form and we'll help you get in touch with the right Knapheide distributor or dealer to meet your needs and get you a vehicle quote.
Search Dealer Inventory
Search local commercial dealer inventory that's ready for work. This is the fastest way to get a Knapheide work vehicle.
B&W Turnoverball® hitch
B&W Turnoverball® hitch rated for 30,000 lb. gross trailer weight and 7,500 tongue weight.
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Finish Paint
Durable oven-cured finish coat paint on top of Knapheide's exclusive electrodeposition prime paint for a clean overall appearance.
Rub Rails
Rub Rails installed on both sides of body for strap, side and stake pocket protection.
Bulkhead
Formed, integrated bulkhead with screened window and tapered design to conform to cab contours and increase operator visibility.
Stake Pockets
Reinforced internal stake pockets are sized to accept 2x4 lumber as well as a wide array of Knapheide side options
Flooring
Rugged 1/8"-thick treadplate floor that can withstand jobsite abuse.
Marker Lights
All marker, clearance, and I.D. lights are LED.
Integrated Fuel Fill
Integrated driver side fuel fill for added convenience. Placement dependent upon length of body.
LED Lights
Replacement for incandescent stop/tail/turn lights. Offering brighter light and a superior life span compared to incandescent lights.
Treadplate Floor Upgrade
3/16" Treadplate floor installed in lieu of the standard 12 gauge treadplate floor for additional floor strength. Available on any PGTB and PGTC Gooseneck Bodies.
Contractor Package
Available for Knapheide Gooseneck Body. Covers open area on sides and rear of body. Includes above and under body toolbox on each side of platform.
Toolboxes
Available for Knapheide Platform, Gooseneck, Dump, and Forestry Bodies for additional storage capacity. Above or under body toolboxes available in multiple sizes to fit your application.
Stake Racks
Secure cargo on your Gooseneck body. Available rack heights of 6" or 15". Secured in internal stake pockets by an internal spring-loaded system.
Side Boards
4" removable side boards available for PGTB and PGTC models.
| Actual Length | Actual Width | Chassis CA | Model | Net Weight (lbs) | Long Sill Spacing | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Single Rear Wheel | ||||||||||
| 7'-3" | 84.00" | 40" | PGTB-738-F | 795 | 38" | |||||
| 7'-6" | 84.00" | 42" | PGTB-768-G | 841 | 42" | |||||
| 7'-0" | 84.00" | 36" | PGTB-708-R | 771 | 42" | |||||
| 8'-6" | 84.00" | 56' | PGTB-868-F | 895 | 38" | |||||
| 8'-9" | 84.00" | 56" | PGTB-898-G | 947 | 42" | |||||
| 8'-9" | 84.00" | 56" | PGTB-898-R | 933 | 42" | |||||
| 9'-6" | 84.00" | 60" | PGTB-968 | 980 | 34" | |||||
| Dual Rear Wheel | ||||||||||
| 8'-6" | 95.75" | 56" | PGTB-86-F | 956 | 38" | |||||
| 8'-9" | 95.75" | 56" | PGTB-89-G | 1,010 | 42" | |||||
| 8'-9" | 95.75" | 56" | PGTB-89-R | 1000 | 42" | |||||
| 9'-6" | 95.75" | 60" | PGTB-96 | 1,045 | 34" | |||||
| 11'-6" | 95.75" | 84" | PGTB-116 | 1,208 | 34" | |||||
| 9'-6" | 95.75" | 60" | PGTB-96-MD | 1,067 | 34" | |||||
| 11'-6" | 95.75" | 84" | PGTB-116-MD | 1,230 | 34" | |||||
PGTB Gooseneck on a Ford F Series
PGTB Gooseneck on a Ford F Series
PGTB Gooseneck on a Ford F Series
PGTB Gooseneck on a GM (Chevrolet)
PGTB Gooseneck on a GM (Chevrolet)
PGTB Gooseneck on a GM (Chevrolet)
PGTB Gooseneck on Ram
PGTB Gooseneck on Ram

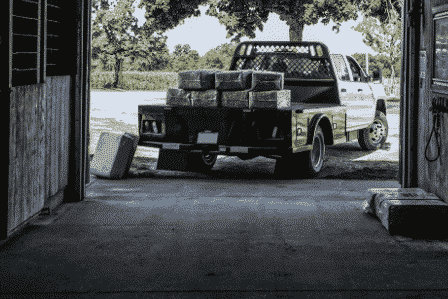

Knapheide Offers 7' Gooseneck Bodies for Big Solutions
Small solutions can yield big results. With the introduction of a 7-foot Gooseneck Body–ideal for pickup bed replacement for 6, 6 1/2, or 6 3/4 foot beds on Class 2…
READ MORE »
Customer Stories: Bret the Diesel Mechanic
From working in the field, to on location service calls, the PGND Gooseneck Body offers the versatility of secure storage, hauling and towing capabilities to make sure you have everything…
READ MORE »
Most Common Work Trucks Found On Dealer Lots
Commercial truck dealers across the nation, from large to small, stock already upfitted work trucks for immediate delivery. So the next time you are in a pinch and need access…
READ MORE »

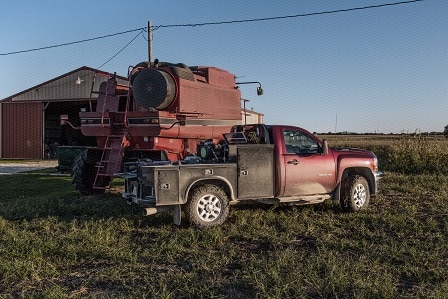

The Different Styles Of Gooseneck Bodies
Gooseneck Bodies are rugged and versatile work trucks that are commonly utilized on farms, construction sites and more throughout North America. With so many styles to choose from, it can…
READ MORE »

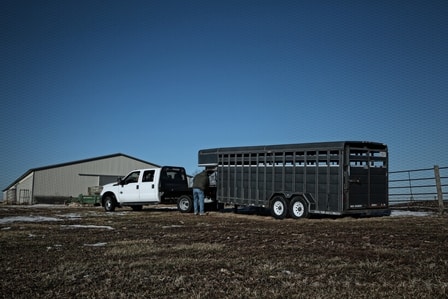

Towing Tips For Your Gooseneck Trailer
