Our Best Selling Gooseneck Flatbed
Now featuring B&W Turnoverball® hitches rated for 30,000 lb. gross trailer weight and 7,500 tongue weight, PGTB Gooseneck Hitch Truck Beds come loaded with integrated stop, tail, turn and backup lights in both the rear skirt and bulkhead and side rub rails for exceptional functionality and convenience. Choose models for either single or dual rear wheel chassis, along with 8′, 9′ and 11′ body lengths. Regardless if you’re hauling a horse trailer or hay bales, PGTB Gooseneck Bodies are well-equipped for the task at hand.
- 3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
- Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
- B&W Turnoverball® stowing hitch system rated for 30,000 lb. gross trailer weight and 7,500 lb. tongue weight.
- Rear skirted flatbed with stake pockets, rub rails, and screened bulkhead.
- Designed for Class 2 and above single and dual rear wheel cab chassis.
Interested?

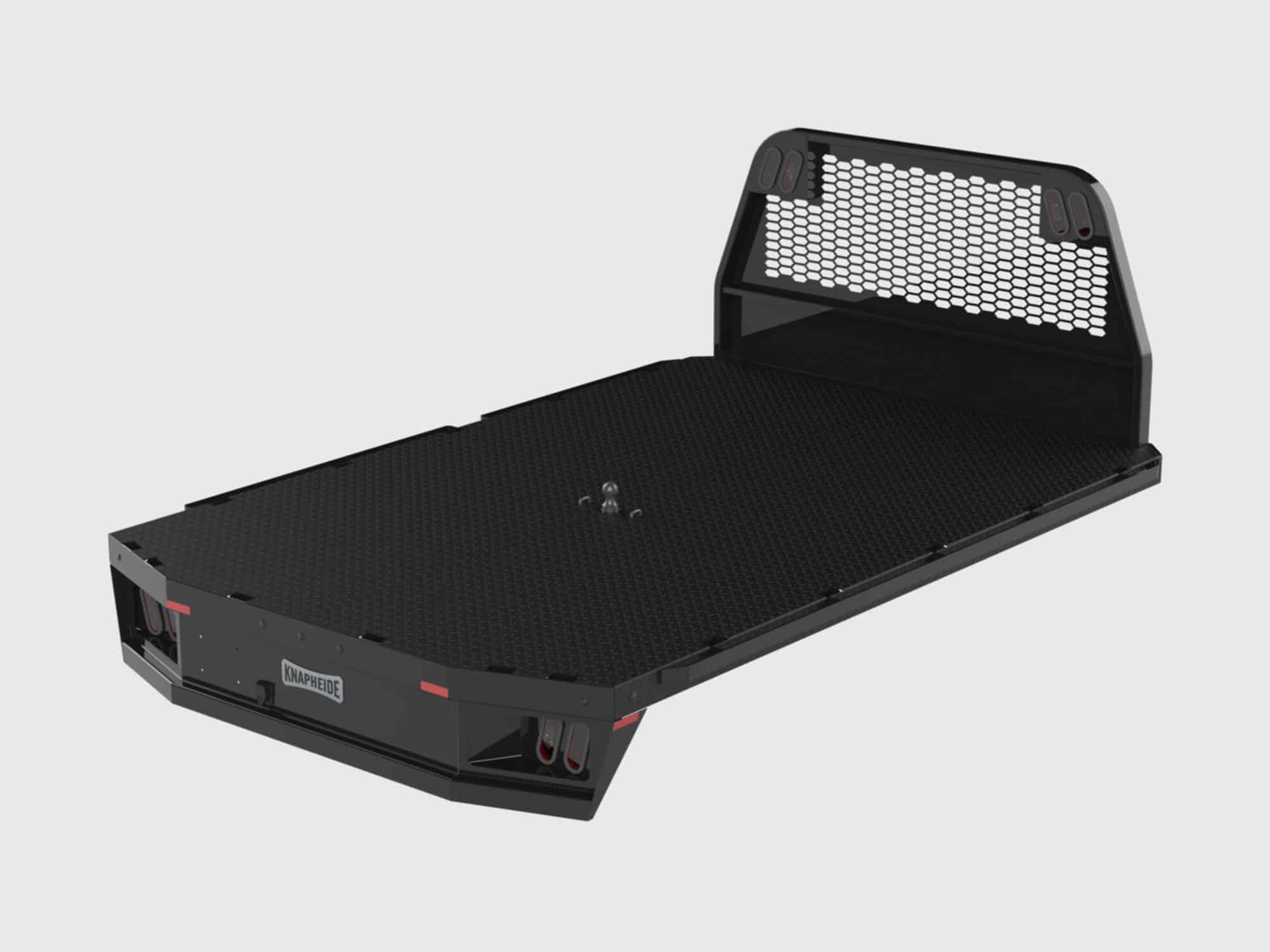

Steel PGTB Gooseneck Body
Features

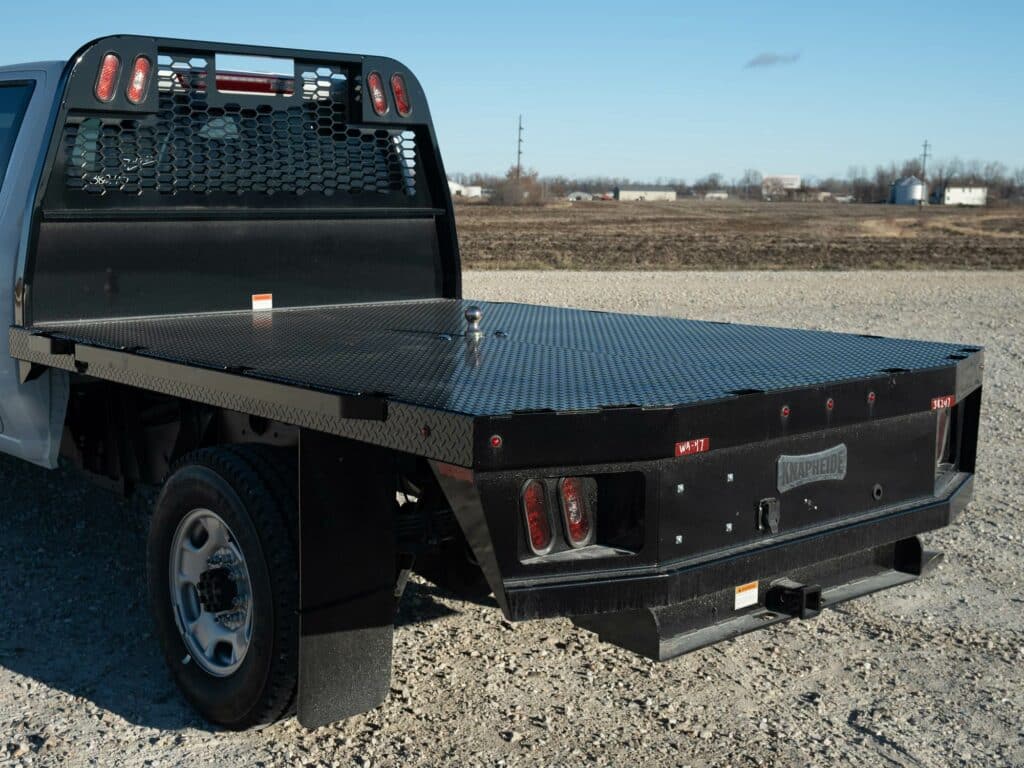

B&W Turnoverball® hitch
B&W Turnoverball® hitch rated for 30,000 lb. gross trailer weight and 7,500 tongue weight.
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Finish Paint
Durable oven-cured finish coat paint on top of Knapheide's exclusive electrodeposition prime paint for a clean overall appearance.
Rub Rails
Rub Rails installed on both sides of body for strap, side and stake pocket protection.

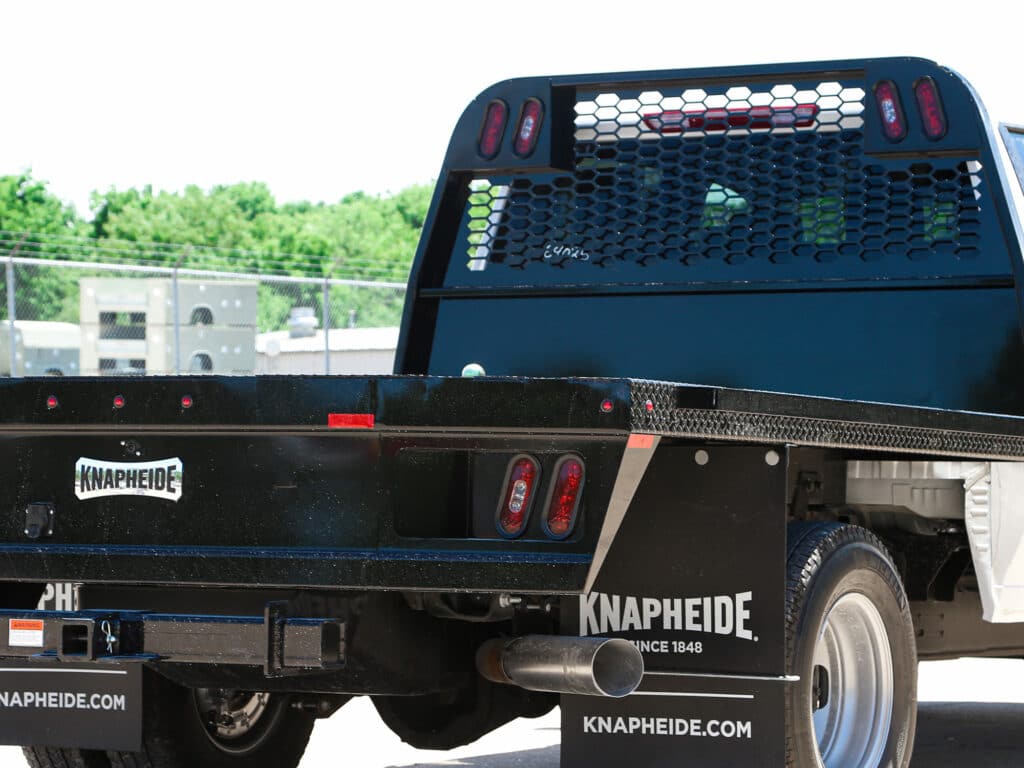

Bulkhead
Formed, integrated bulkhead with screened window and tapered design to conform to cab contours and increase operator visibility.
Stake Pockets
Reinforced internal stake pockets are sized to accept 2x4 lumber as well as a wide array of Knapheide side options
Flooring
Rugged 1/8"-thick treadplate floor that can withstand jobsite abuse.
Marker Lights
All marker, clearance, and I.D. lights are LED.
Integrated Fuel Fill
Integrated driver side fuel fill for added convenience. Placement dependent upon length of body.
LED Lights
Replacement for incandescent stop/tail/turn lights. Offering brighter light and a superior life span compared to incandescent lights.
Body Options
Add-ons
Specifications
Standard Models
Actual Length Actual Width Chassis CA Model Net Weight (lbs) Long Sill Spacing Single Rear Wheel 7'-3" 84.00" 40" PGTB-738-F 795 38" 7'-6" 84.00" 42" PGTB-768-G 841 42" 7'-0" 84.00" 36" PGTB-708-R 771 42" 8'-6" 84.00" 56' PGTB-868-F 895 38" 8'-9" 84.00" 56" PGTB-898-G 947 42" 8'-9" 84.00" 56" PGTB-898-R 933 42" 9'-6" 84.00" 60" PGTB-968 980 34" Dual Rear Wheel 8'-6" 95.75" 56" PGTB-86-F 956 38" 8'-9" 95.75" 56" PGTB-89-G 1,010 42" 8'-9" 95.75" 56" PGTB-89-R 1000 42" 9'-6" 95.75" 60" PGTB-96 1,045 34" 11'-6" 95.75" 84" PGTB-116 1,208 34" 9'-6" 95.75" 60" PGTB-96-MD 1,067 34" 11'-6" 95.75" 84" PGTB-116-MD 1,230 34"
Gallery
