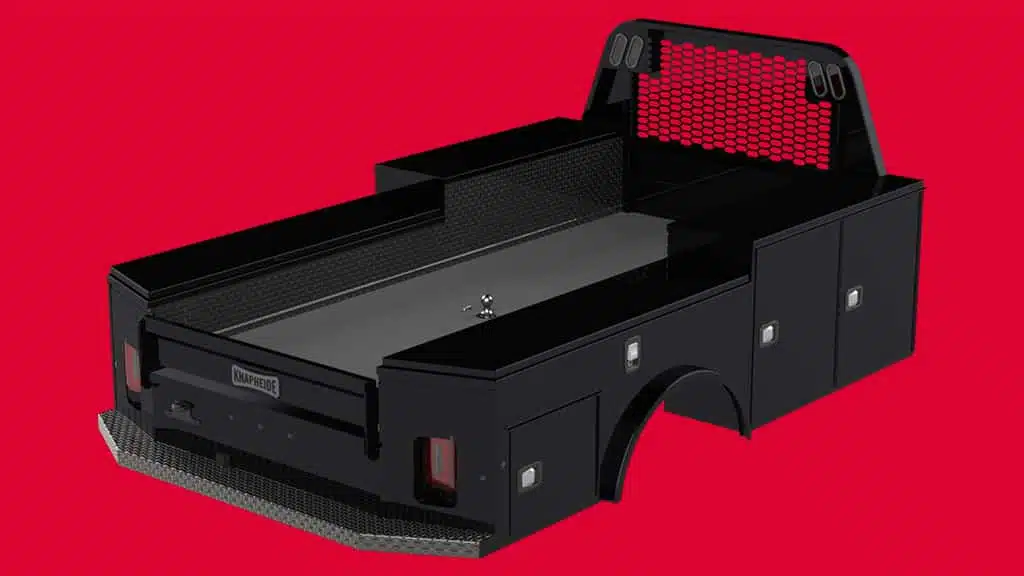

Utility Gooseneck Bodies
The newly redesigned Knapheide PGTD Gooseneck Hitch Bodies are the top of the line for work and hauling. Now featuring B&W Turnoverball® hitches, you won’t find a more feature-packed and deluxe gooseneck service body anywhere.
New PGTD Features:
- B&W Turnoverball® hitch rated for 30,000 lb. gross trailer weight and 7,500 tongue weight.
- Flip-top compartments are three inches deeper than previous PGN models for 50 percent more usable space.
- 36” high front compartments in 11’ models are of equal width, each with 250 lb. capacity shelves.
PGTD Gooseneck Bodies feature superior and innovative solid steel construction so you have confidence it will stand up to years of use on the jobsite. From the ample compartment storage to the contoured bulkhead and all-LED lights, the PGTD has everything you need in a gooseneck body.
B&W Turnoverball® hitch
B&W Turnoverball® hitch rated for 30,000 lb. gross trailer weight and 7,500 tongue weight.
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Durable oven-cured finish coat paint on top of Knapheide's exclusive electrodeposition prime paint for a clean overall appearance.
Triple contact door seals provides protection against the outside elements for your tools and equipment.
Integrated LED S/T/T and B/U lights located in the bulkhead for a clean appearance.
Formed, integrated bulkhead with screened window and tapered design to conform to cab contours and increase operator visibility.
Rugged 1/8"-thick treadplate floor that can withstand jobsite abuse.
Slam tailgate with center-mounted release handle
Integrated Fuel Fill
Integrated driver side fuel fill for added convenience. Placement dependent upon length of body.
All marker, clearance, and I.D. lights are LED.
Flip Top Compartments
Flip-top compartments with exterior latch and employs nitrogen gas struts for smooth opening and closing.
Features double-shell, 20-gauge, two-sided A-40 galvanneal steel compartment doors
250 lb. capacity adjustable divider shelves made of rugged spangled galvanized steel. Divider slots on 4" centers. Shelves are covered by the Knapheide six year warranty.
Double spring over-center door retainer on all doors eliminates involuntary swing and keeps the door in positive open or closed position.
Rugged 14-gauge, two-sided A-40 galvanneal steel body shell with a six year warranty. Complete undercoating provides an additional layer of corrosion protection.
Adjustable security ring strikers provide strength, security, and a weather tight seal throughout the entire life of the body.
Internal Latch Cover
Latch interior cover secures the latch to the door and protects the internal latch mechanisms from being damaged. Appearance may vary.
Automotive quality, paddle-activated rotary style latches make opening and closing easy. Low maintenance and stylish, the latches are covered under Knapheide's six year warranty.
Stainless Steel Hinge
Continuous stainless steel hinge for unmatched security and corrosion resistance, backed by the Knapheide six year warranty.
7" deep rear step makes accessing the cargo area safe and easy.
Tailskirt-integrated lighting system features LED S/T/T and B/U, LED strobe option with (8) selectable patterns and built-in reflectivity for additional safety
Aluminum treadplate trim installed on compartment tops and bottom half of bulkhead for improved aesthetics and durability.
Aluminum Mechanics Drawers
Aluminum alloy construction manufactured by C-Tech. Available in multiple configurations. Rated for maximum of 250 lbs. Appearance may vary.
Ideal for safely securing heavy equipment in your cargo area. Zinc-plated. Rated at 2,000 lbs.
Available option for Service Bodies and KUV models using Ford E-Series or GM Express/Savana cutaway chassis. Standard feature on KUV models using Ford Transit or Ram ProMaster cutaway chassis. Integration with chassis keyless entry system (if equipped) allows for both body and cab to be operated with chassis key fob.
LED Compartment Lighting
Ideal for Service, Utility or Gooseneck body. Controlled and operated via vehicle up fitter switch. Switch kit and door activated switch kits also available. Multiple lengths available.
|Actual Length||Actual Width||Chassis CA||Model||Net Weight (lbs)||Long Sill Spacing|
|Single Rear Wheel|
|Dual Rear Wheel|
Spend a few minutes with Bret Duesterhaus, ace diesel mechanic and farmer, to see how his recent upgrade to a Knapheide PGTD Gooseneck Body has taken his daily productivity to a new…READ MORE »
Like countless others throughout 2020, Mark Wenger found himself in a state of uncertainty as Covid-19 left him a casualty of job loss in the wake of the pandemic. For…READ MORE »

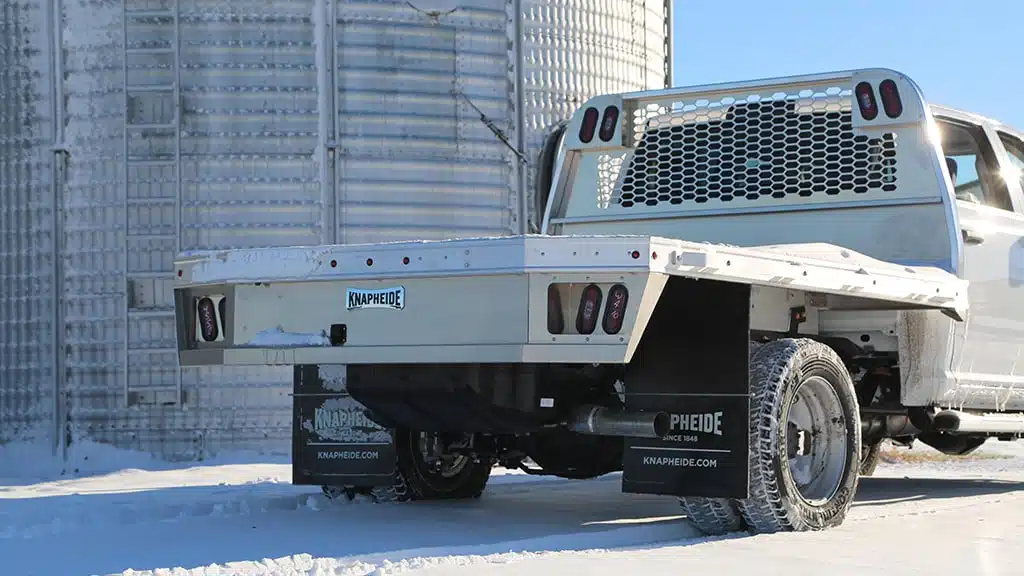

Are you ready to switch or upgrade to a new Knapheide Platform Gooseneck? Knapheide Platform Gooseneck (PGT) bodies integrate our time-tested platform and service bodies with the B&W Turnoverball® Hitch…READ MORE »
