Aluminum KUVcc
Same features as aluminum service bodies with the addition of master locks and rear access doors with conduit chutes. Available in 8’, 9’ and 11’ lengths.
Three roof heights available: Low (68”), Medium (78”), High (90”).
Single-Rear-Wheel models are now available with widths under 80″ wide.
Request a Quote
Complete our online quote request form and we'll help you get in touch with the right Knapheide distributor or dealer to meet your needs and get you a vehicle quote.
LED Lights
Surface mount lighting system features LED S/T/T and B/U, LED strobe option with (8) selectable patterns and built-in reflectivity for additional safety
Nitrogen Gas Strut
Nitrogen strut door retainers
Continuous Hinges
Continuous aluminum hinge with stainless steel rods
Automotive Latch
Automotive quality, paddle-activated rotary style latches make opening and closing easy. Low maintenance and stylish, the latches are covered under Knapheide's six year warranty.
Interior Light Guards
Interior light guards protect recessed lighting and wiring.
Door Frame Design
Inset door frame design with double tray aluminum doors and neoprene door seals for weather-tight closing
Master Locking System
Lock all compartments on one side with a single device/move. Operates independent of your key locks for added security.
Bulkhead Window
Bulkhead panel including window installed near the bottom side of the panel. Window size varies upon body width.
Rear Door Windows
Rear doors installed with glass in lieu of standard doors with no glass. Doors are double panel aluminum with reinforcement around the window and 2 point slam latches. Includes punched window guards.
Wind Deflector
Add increased aerodynamics and looks to your body. Wind deflector is molded from composite material and has 14 gauge galvanneal mounting plate, and is to be installed on front of bodies.
Overhead Ladder Rack
The ladder rack is constructed from 1/8" high-strength aluminum support brackets and 1-5/8" aluminum pipe. The load carrying capacity is 300 lbs when mounted according to recommended procedures.
Side-mount Ladder Rack
Side mounted, convenient storage option for ladders. Spring over center clamp type ladder racks with padlock tab for the side of canopy roof.
Galva Grip Recess Bumper
Recess bumpers are offered in galva-grip material, with a black KnapLiner coating. Galva- grip is made from heavy duty galvanneal with 'grip tread' on the step surface providing superior corrosion resistance and enhanced paint adhesion.
Galva Grip Straight Bumper
Straight bumpers are offered in galva-grip material, with a black KnapLiner coating. Galva-grip is made from heavy duty galvanneal with 'grip tread' on the step surface providing superior corrosion resistance and enhanced paint adhesion.
Grip Strut Recess Bumper
Grip strut recess bumpers are coated with black KnapLiner. Grip strut offers a serrated safety grating, providing a non-slip surface. KnapLiner is a durable black spray-on composite liner.
| Model | Chassis CA | Body Length (Nominal) | Body Height | Body Width | Compartment Depth | Clear Door Width | Clear Door Height | Interior Clear Height | Net Weight (lbs) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56-84" Dual Rear Wheel | ||||||||||||||||||
| AKC98M2094 | 56" | 99.25" | 78" | 94" | 20" | 50" | 54" | 60" | 938 | |||||||||
| AKC98H2094 | 56" | 99.25" | 90" | 94" | 20" | 50" | 66" | 72" | 982 | |||||||||
| AKC110L2094 | 60" | 109.25" | 68" | 94" | 20" | 50" | 44" | 50" | 969 | |||||||||
| AKC110M2094 | 60" | 109.25" | 78" | 94" | 20" | 50" | 54" | 60" | 1006 | |||||||||
| AKC110H2094 | 60" | 109.25" | 90" | 94" | 20" | 50" | 66" | 72" | 1050 | |||||||||
| AKC132M2094 | 84" | 133.25" | 78" | 94" | 20" | 50" | 54" | 60" | 1180 | |||||||||
| AKC132H2094 | 84" | 133.25" | 90" | 94" | 20" | 50" | 66" | 72" | 1227 | |||||||||
| 56-60" Single Rear Wheel | ||||||||||||||||||
| AKC98U1478 | 56" | 99.25" | 62" | 78" | 14.5" | 45" | 38" | 44" | 739 | |||||||||
| AKC98L1478 | 56" | 99.25" | 68" | 78" | 14.5" | 45" | 44" | 50" | 789 | |||||||||
| AKC98M1478 | 56" | 99.25" | 78" | 78" | 14.5" | 45" | 54" | 60" | 821 | |||||||||
| AKC110L1478 | 60" | 109.25" | 68" | 78" | 14.5" | 45" | 44" | 50" | 846 | |||||||||
| AKC110M1478 | 60" | 109.25" | 78" | 78" | 14.5" | 45" | 54" | 60" | 880 | |||||||||

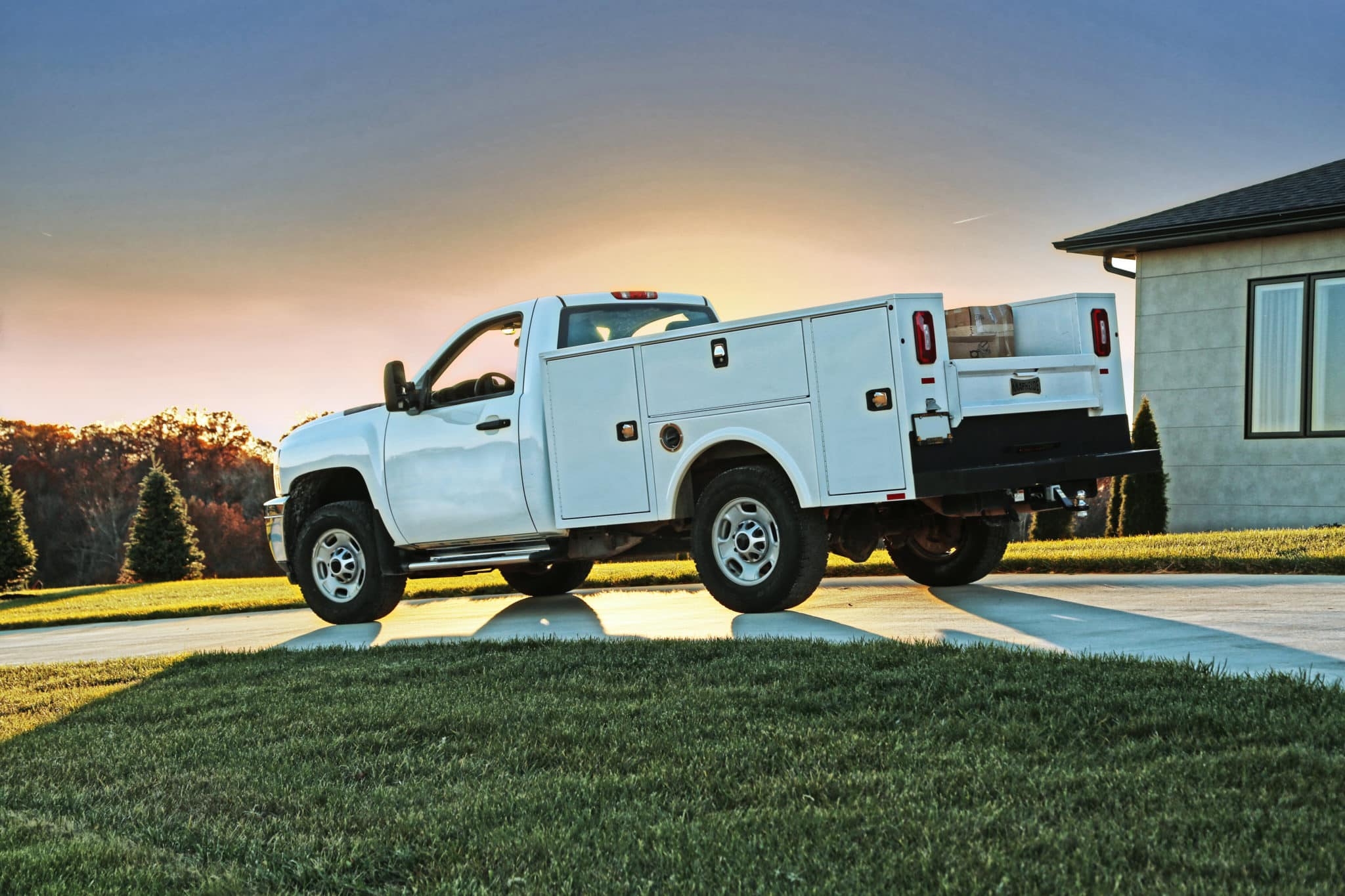

Aluminum KUVcc on Chevrolet
Aluminum KUVcc on Chevrolet
Aluminum KUVcc on Chevrolet
Aluminum KUVcc on Chevrolet
Aluminum KUVcc on Chevrolet
Aluminum KUVcc on Chevrolet
Aluminum KUVcc on Chevrolet
Aluminum KUVcc on Chevrolet
