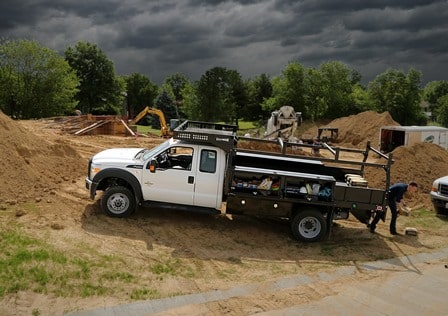

The Knapheide Concrete Body combines a 1,500 lb. overcab material rack, drop down tailgate, removable solid sides, above and under body toolboxes with a Value-Master X Platform Body to create the ideal vocational package for a concrete contractor.
We know concrete work is a physically demanding job so we designed a truck body that is tough enough to handle your job, day in and day out. A reinforced overcab material rack can accommodate wheelbarrow storage while the drop down tailgate enables you to get close enough to the load space to easily retrieve items. A 1/8″ thick, treadplate floor construction ensures the Concrete Body can hold up to the heavy loads within a concrete environment.
If your job requires a strong truck and durable truck body, depend on Knapheide’s Concrete Body.
Concrete Bodies Information
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
One above body and one under body toolbox on each side of the body for secure storage. Toolboxes include double panel door construction and T-handle style latches.
Material Rack rated at 1,500 lbs. maximum capacity, is side forklift loadable, has swing-away rear cross bar and removable intermediate cross bars for loading taller items, and has tie down hooks to help secure your items.
ICC Bumper for under-ride protection and for compliance with FMVSS regulations.
Full height tailboard at the rear of the above body toolboxes to separate the bed space.
14" High removable contractor solid sides secure within the platforms internal stake pockets.
Floor is constructed of two-piece, 7 gauge HRCQ steel with a full seam weld down the center (Rigid Side models with crossmember understructure features a two-piece 10 gauge floor with full seam weld).
14" High, double-panel contractor grade tailgate drops down a full 180 degrees for easy loading and unloading.
Reinforced cab guard with tie downs for securing wheelbarrows and building supplies.
PVMX platform base is comprised of 11-gauge high tensile strength steel cross sills on 18” centers with 5” structural C-Channel long sills
Aluminum Treadplate Overlay
Aluminum treadplate adhered to top of toolboxes for increased durability and added aesthetic
8' Underbody Storage Compartment
Offers additional storage beneath the body
|Length||Treadplate Floor - Model||Treadplate Floor - Net Weight (lbs)|
|Dual Rear Wheel Chassis with 60-108" CA|
|Concrete Bodies Literature-Ford||DOWNLOAD|
|Concrete Bodies Literature-GM||DOWNLOAD|
|All Products Brochure||DOWNLOAD|
|Concrete Bodies Literature-Ram||DOWNLOAD|
|Knapheide Steel Product Warranty||DOWNLOAD|
The Knapheide Manufacturing Company, the nation’s leading provider of commercial vehicle solutions, announces the release of two vocational specific Platform Bodies. The Concrete Body is a newly released heavy-duty Platform Body.…READ MORE »
John Jewell, Mideastern Regional Sales Manager, takes us on a tour of all of the features of Knapheide’s fully-packaged Concrete Body. Truck Bodies Built Specifically For Concrete Contractors View Concrete…READ MORE »

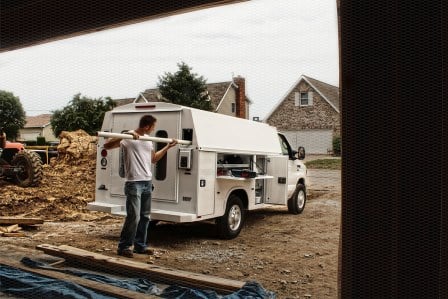

Every vocation has them. They are the long or bulky items that you just aren’t sure how to store in the most efficient manner. You could throw that 8’ conduit…READ MORE »
