Get More Payload From Your Flatbed
- 10 Year Limited Warranty guaranteeing no body rust-through and 3 Year Limited Warranty guaranteeing defect-free material and workmanship.
- 6061 T6 and 5052 aluminum construction for greater payload capability and corrosion resistance.

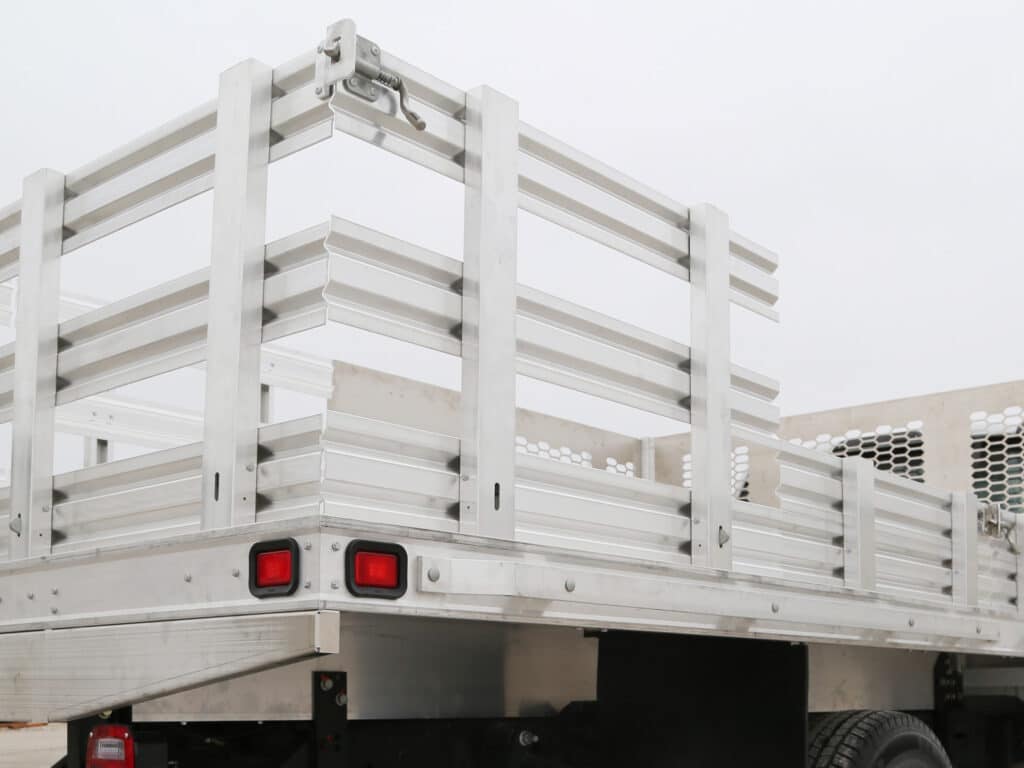

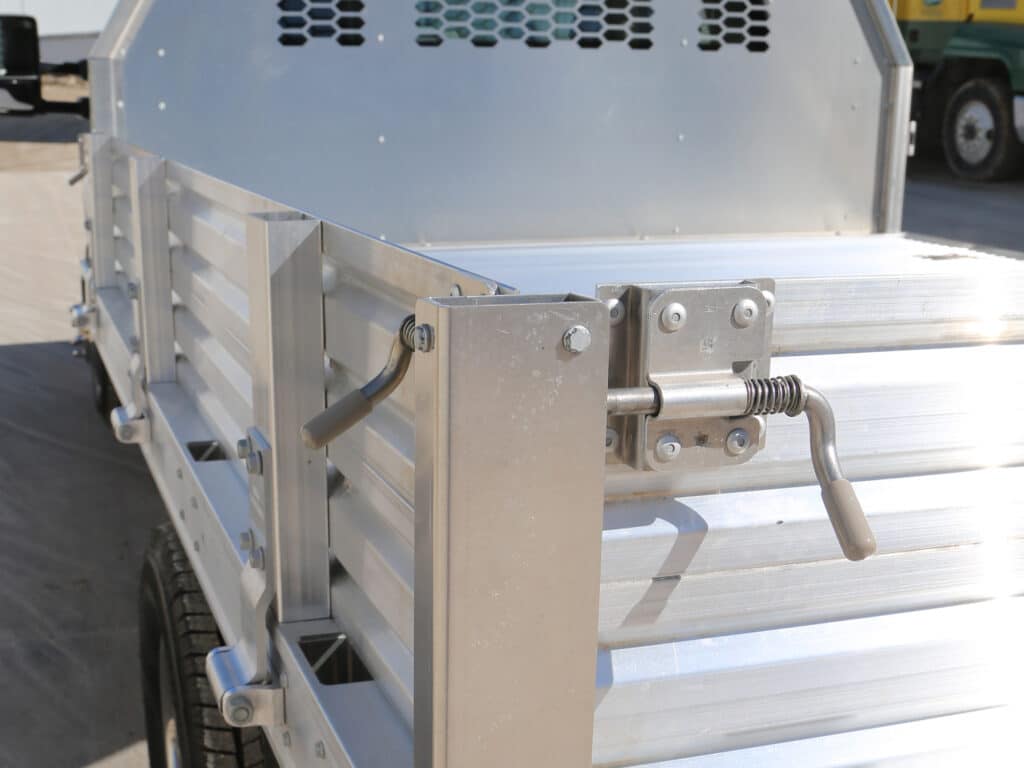

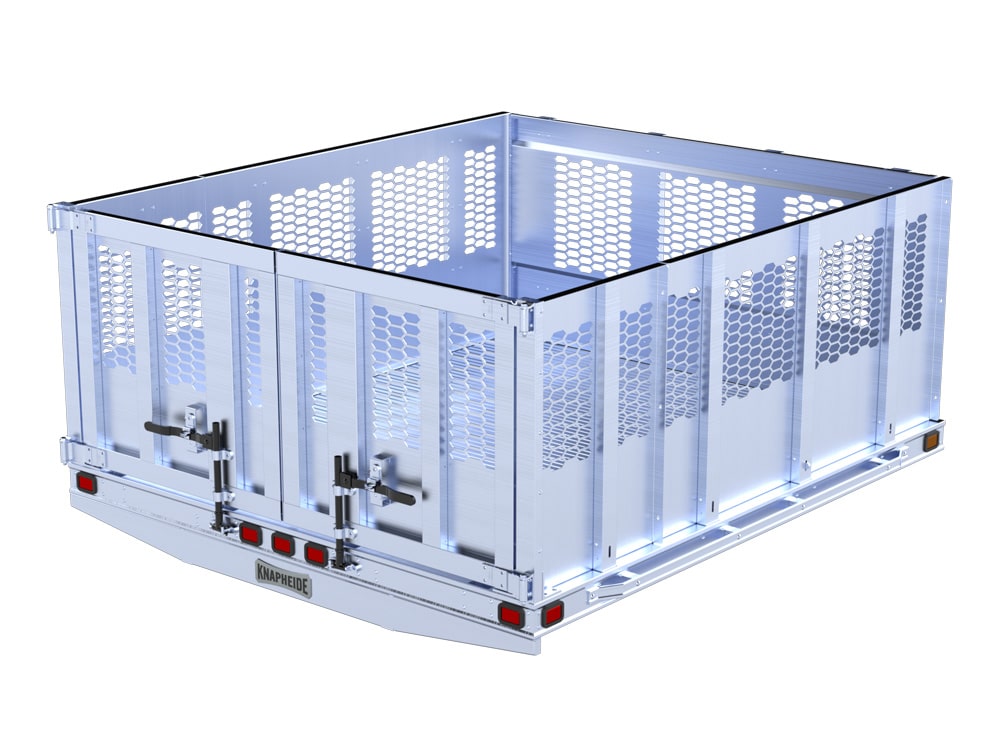

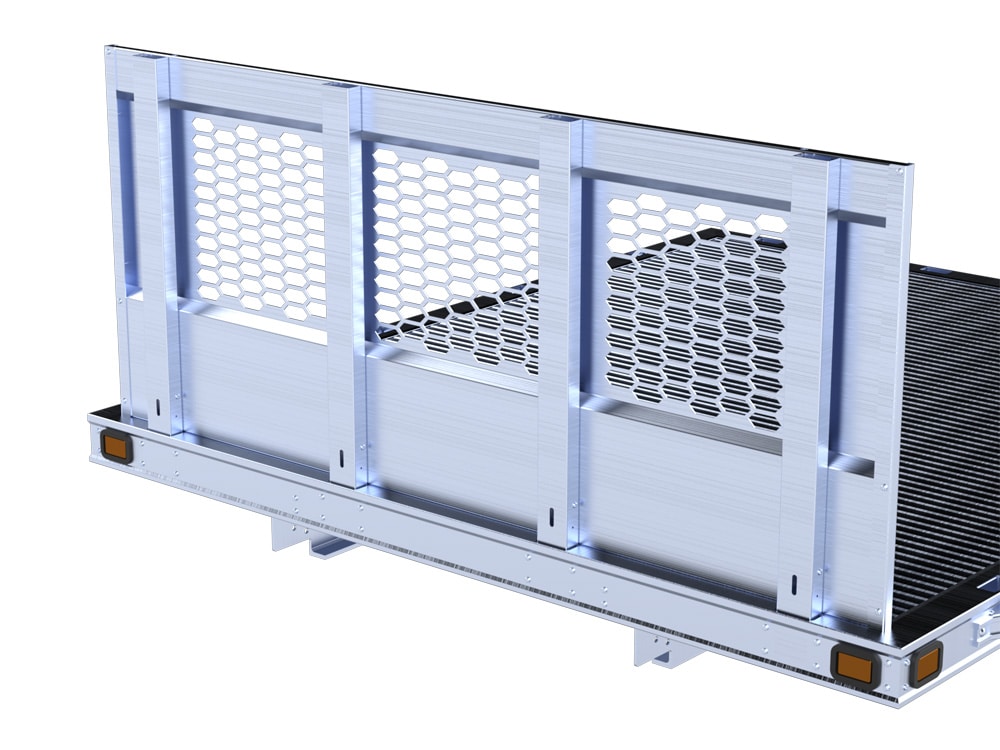

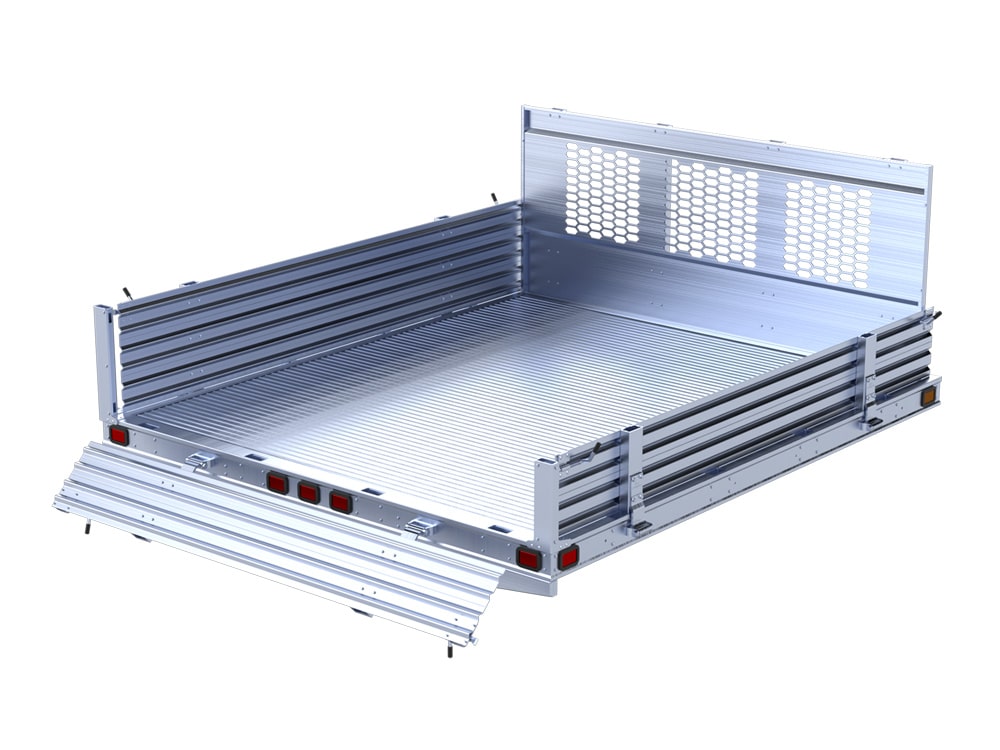

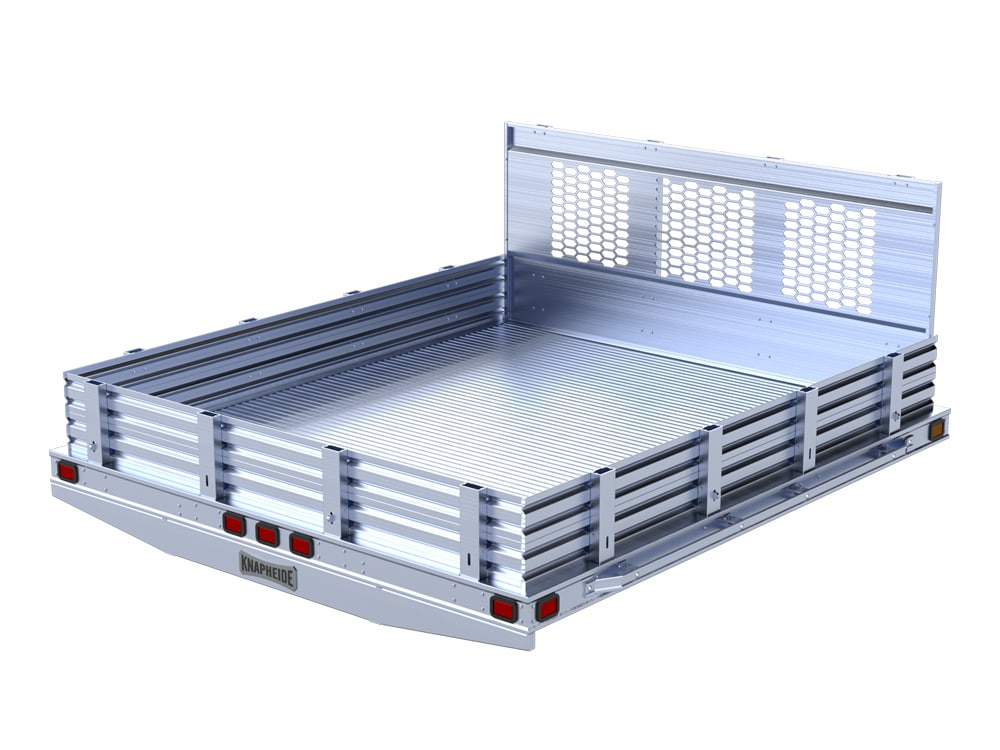

- Multiple side options, bulkhead styles, cargo storage and restraining upgrades can be applied.
- Models available in 6.5 to 18-foot lengths and 80 to 102-inch widths.
- Designed for Class 2 and above single and dual rear wheel cab chassis.
Build & Quote
Add products, submit your request, and we'll get in touch with more info and a personalized quote!
Aluminum Platform Body
Aluminum Platform Body
Features
Aluminum Construction
Constructed of 6061 T6 and 5052 military-grade aluminum, resulting in a body that's 40 percent lighter than steel.
Military-Grade Flooring
Military-grade aluminum extruded floor planks perform double-duty, providing exceptional styling and strength for the floor, as well as unmatched structural strength as the cross sills.
Long Sills
Long sills are an extruded aluminum structural channel.
Side Rails
Side rails are extruded Military-grade aluminum channel with a tapered edge, providing protection to the floor planks and allowing for cargo and product to be loaded and unloaded without damage.
Rub Rails
Standard feature for DRW bodies only. External 3/8" thick, Military-grade aluminum rub rails are attached to the sides with EcoGuard hardware to eliminate the interaction between the steel and aluminum for easy replacement in the event of damage.
Stake Pockets

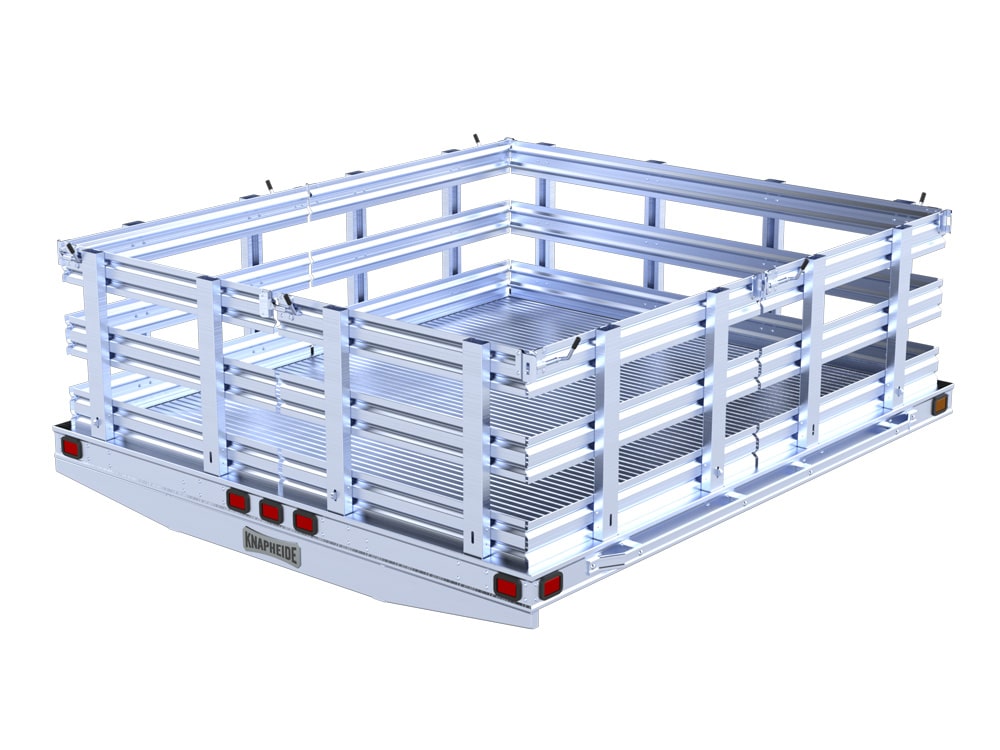

Reinforced stake pockets are sized to accept Knapheide side options.
Tie-Downs

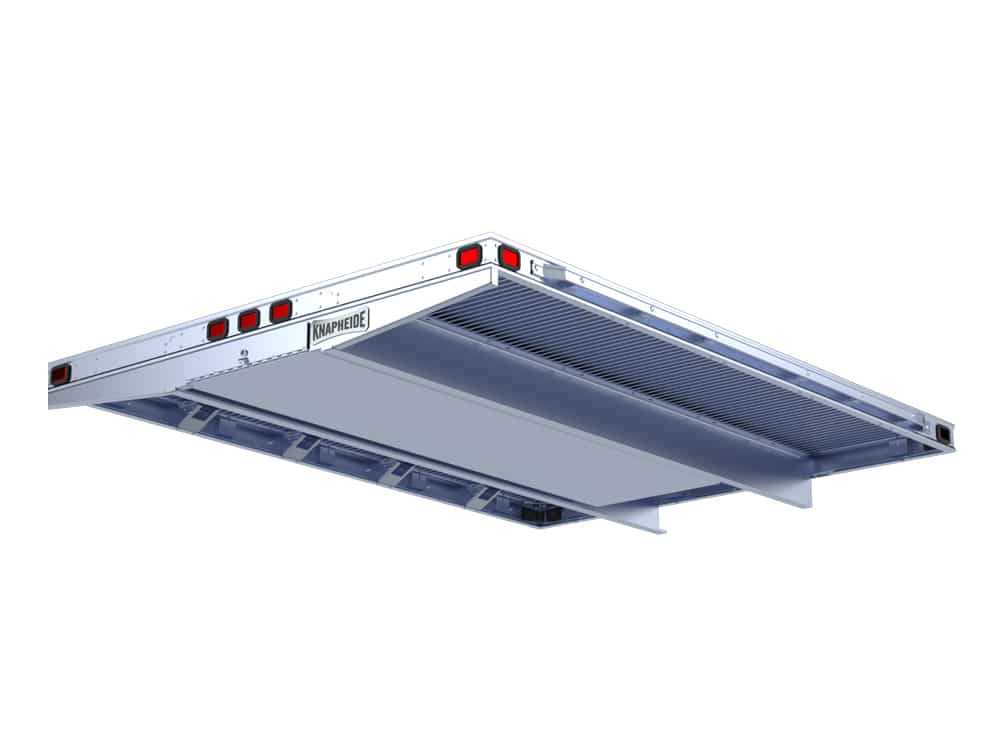

Integrated under body tie downs provide a reinforced location for attaching cargo tie down straps.
Marker Lights
All marker, clearance, and I.D. lights are LED.
Body Options
Add-ons
Specifications
Standard Models
Actual Length Actual Width Chassis CA Model Net Weight (lbs) Long Sill Spacing Single Rear Wheel 7'-6" 80.00" 36/42" ALPB-768 216 42" 7'-6" 80.00" 40" ALPB-768-F 214 38" 8'-9" 80.00" 56" ALPB-898 251 42" 8'-9" 80.00" 56" ALPB-898-F 249 38" 9'-3" 80.00" 60" ALPB-938 270 34" Dual Rear Wheel, 90 Sprinter Series 12'-3" 90.00" 85.2" ALPBMB-123 374 39.19" 14'-3" 90.00" 111.2" ALPBMB-143 430 39.19" Dual Rear Wheel, 96 Series 8'-9" 96.00" 56" ALPB-89 278 42" 8'-9" 96.00" 56" ALPB-89-F 276 38" 9'-3" 96.00" 60" ALPB-93 299 34" 10'-3" 96.00" 72-84" ALPB-103 329 34" 11'-3" 96.00" 84" ALPB-113 359 34" 12'-3" 96.00" 84-102" ALPB-123 387 34" 13'-3" 96.00" 108" ALPB-133 417 34" 14'-3" 96.00" 102-124" ALPB-143 444 34" 16'-3" 96.00" 108-138" ALPB-163 502 34" 18'-3" 96.00" 120-152" ALPB-183 560 34" Dual Rear Wheel, 102 Series 12'-3" 101.75" 60-84" ALPBW-123 398 34" 13'-3" 101.75" 60-84" ALPBW-133 429 34" 14'-3" 101.75" 102-124" ALPBW-143 457 34" 16'-3" 101.75" 108-138" ALPBW-163 516 34" 18'-3" 101.75" 120-152" ALPBW-183 575 34"

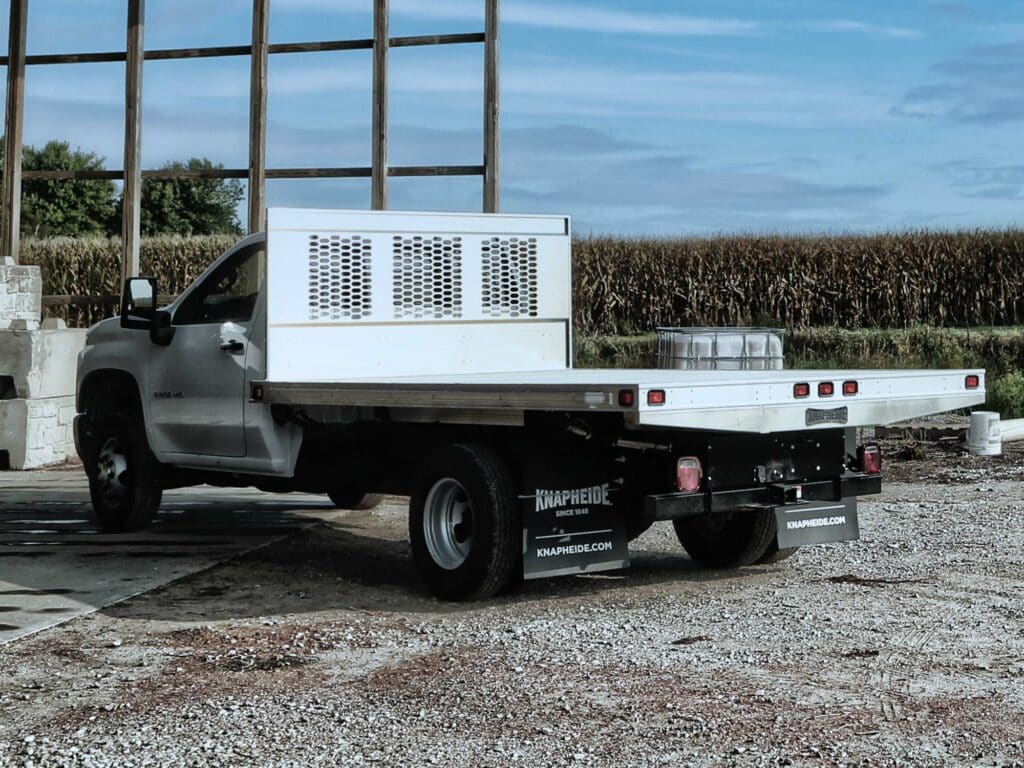

Gallery
Images are shown for illustrative purposes only and may not be an exact representation of the product.
