Lightweight, heavy-duty aluminum platform bodies
In the market for a flatbed truck? Look no further. Our Aluminum Platform Bodies are easy on payload and big on strength.
With a desire to never settle for second best, we spent years designing and testing our aluminum product lines to ensure they’re lightweight but not light duty. Assembled with aerospace techniques and utilizing military-grade aluminum extrusions, our aluminum flatbed body is class-leading in strength, durability and longevity.
Available in lengths from 7’ to 18’, there’s a tough, long-lasting aluminum platform body for your application no matter how big or small.
Request a Quote
Complete our online quote request form and we'll help you get in touch with the right Knapheide distributor or dealer to meet your needs and get you a vehicle quote.
Search Dealer Inventory
Search local commercial dealer inventory that's ready for work. This is the fastest way to get a Knapheide work vehicle.
Aluminum Construction
Constructed of 6061 T6 and 5052 military-grade aluminum, resulting in a body that's 40 percent lighter than steel.
Military-Grade Flooring
Military-grade aluminum extruded floor planks perform double-duty, providing exceptional styling and strength for the floor, as well as unmatched structural strength as the cross sills.
Long Sills
Long sills are an extruded aluminum structural channel.
Side Rails
Side rails are extruded Military-grade aluminum channel with a tapered edge, providing protection to the floor planks and allowing for cargo and product to be loaded and unloaded without damage.
Rub Rails
Standard feature for DRW bodies only. External 3/8" thick, Military-grade aluminum rub rails are attached to the sides with EcoGuard hardware to eliminate the interaction between the steel and aluminum for easy replacement in the event of damage.
Stake Pockets
Reinforced stake pockets are sized to accept Knapheide side options.
Tie-Downs
Integrated under body tie downs provide a reinforced location for attaching cargo tie down straps.
Marker Lights
All marker, clearance, and I.D. lights are LED.
Bulkhead
Constructed of Military-grade aluminum extrusions and Marine-grade aluminum sheeting. Available in both rectangular and tapered/punched configurations.
Drop-in Racks
Drop-in racks provide a basic way to retain material in the load space. Available on 8’–18’ length bodies.
Drop-down Racks
Provide hinge-down side and rear sections for enhanced retainment and access to the load space. Available on 8' length bodies.
Refuse Sides
Available in multiple lengths. Used in variety of applications.
Spare Tire Retainer
Accepts tires as small as 14" up to 22.5", with up to 6" of vertical adjustment. Can be mounted on street side or curb side of bulkhead.
Stake Racks
Constructed with all-Military-grade aluminum. Made for bodies of all lengths and in 28" and 40" high sides.
Underbody Storage Compartment
Runs between the long sills of the body to create additional storage for lengthy items like conduit or PVC.
Integrated D-Ring Tie-Downs
D-ring style tie-downs for securing cargo for safe and efficient transport
ICC Bumper
For Platform and Dump Bodies. Dimensions dependent upon chassis manufacturer. Under ride protection required by law and the ICC Bumper provides this protection. ICC Bumpers not needed when hitch is utilized.
Rear Hitch
Multiple receiver hitch options available to meet your hauling demands. All hitches include under ride protection.
| Actual Length | Actual Width | Chassis CA | Model | Net Weight (lbs) | Long Sill Spacing | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Single Rear Wheel | ||||||||||
| 7'-6" | 80.00" | 36/42" | ALPB-768 | 216 | 42" | |||||
| 7'-6" | 80.00" | 40" | ALPB-768-F | 214 | 38" | |||||
| 8'-9" | 80.00" | 56" | ALPB-898 | 251 | 42" | |||||
| 8'-9" | 80.00" | 56" | ALPB-898-F | 249 | 38" | |||||
| 9'-3" | 80.00" | 60" | ALPB-938 | 270 | 34" | |||||
| Dual Rear Wheel, 90 Sprinter Series | ||||||||||
| 12'-3" | 90.00" | 85.2" | ALPBMB-123 | 374 | 39.19" | |||||
| 14'-3" | 90.00" | 111.2" | ALPBMB-143 | 430 | 39.19" | |||||
| Dual Rear Wheel, 96 Series | ||||||||||
| 8'-9" | 96.00" | 56" | ALPB-89 | 278 | 42" | |||||
| 8'-9" | 96.00" | 56" | ALPB-89-F | 276 | 38" | |||||
| 9'-3" | 96.00" | 60" | ALPB-93 | 299 | 34" | |||||
| 10'-3" | 96.00" | 72-84" | ALPB-103 | 329 | 34" | |||||
| 11'-3" | 96.00" | 84" | ALPB-113 | 359 | 34" | |||||
| 12'-3" | 96.00" | 84-102" | ALPB-123 | 387 | 34" | |||||
| 13'-3" | 96.00" | 108" | ALPB-133 | 417 | 34" | |||||
| 14'-3" | 96.00" | 102-124" | ALPB-143 | 444 | 34" | |||||
| 16'-3" | 96.00" | 108-138" | ALPB-163 | 502 | 34" | |||||
| 18'-3" | 96.00" | 120-152" | ALPB-183 | 560 | 34" | |||||
| Dual Rear Wheel, 102 Series | ||||||||||
| 12'-3" | 101.75" | 60-84" | ALPBW-123 | 398 | 34" | |||||
| 13'-3" | 101.75" | 60-84" | ALPBW-133 | 429 | 34" | |||||
| 14'-3" | 101.75" | 102-124" | ALPBW-143 | 457 | 34" | |||||
| 16'-3" | 101.75" | 108-138" | ALPBW-163 | 516 | 34" | |||||
| 18'-3" | 101.75" | 120-152" | ALPBW-183 | 575 | 34" | |||||
Aluminum Platform Body on Ford
| All Products Brochure | DOWNLOAD |
| Aluminum Platform Bodies Literature | DOWNLOAD |
| Aluminum Product Ten Year Warranty | DOWNLOAD |
| Isuzu Literature | DOWNLOAD |
Proven Products: Aluminum Truck Bodies from Knapheide

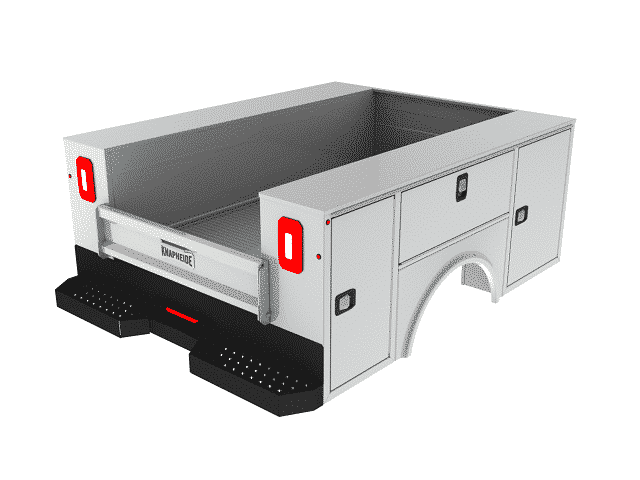

Aluminum service beds from Knapheide offer superior design and innovative construction for increased efficiency and productivity without sacrificing quality, integrity, and durability. Learn About Knapheide Aluminum Bodies See More
READ MORE »
10 Work Truck Options for Storing Long or Bulky Items
Every vocation has them. They are the long or bulky items that you just aren’t sure how to store in the most efficient manner. You could throw that 8’ conduit…
READ MORE »
Most Common Work Trucks Found On Dealer Lots
Commercial truck dealers across the nation, from large to small, stock already upfitted work trucks for immediate delivery. So the next time you are in a pinch and need access…
READ MORE »

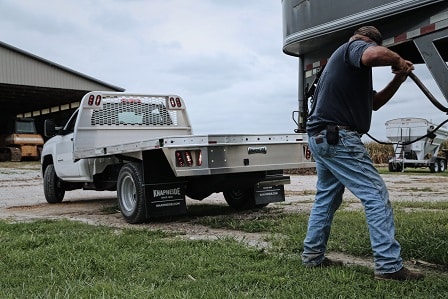

There Is More To Aluminum Than Corrosion Resistance
When it comes to aluminum products, the first thing that might come to your mind is the metal’s corrosion resistant properties. While it’s true that aluminum is a great choice…
READ MORE »
6 Tips For Configuring Your Next Platform Body
Platform bodies, flatbeds, flatdecks, there are numerous names used across North America for this versatile material hauling product. On the surface, a platform body seems so simple. Yet spec’ing the…
READ MORE »
The Complete Process: Aluminum Truck Bodies
Aluminum service beds from Knapheide feature a superior design and innovative construction. In order to provide customers with the utmost confidence in Knapheide aluminum service truck beds, we put them…
READ MORE »

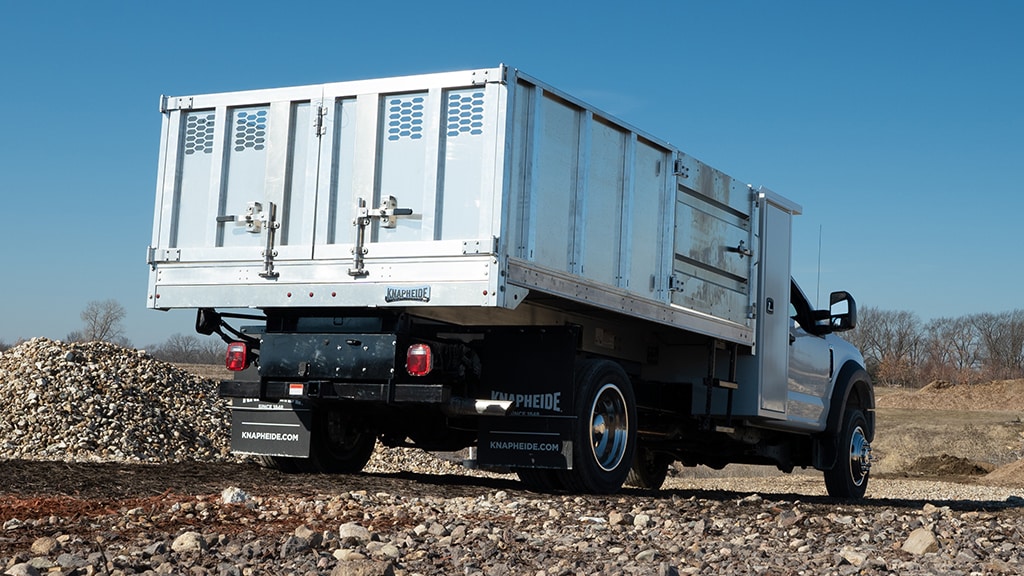

Knapheide Launches New Aluminum Landscaper Truck Body
As we’ve done since our inception in 1848, Knapheide continues to evolve, changing with the times to meet the latest demands, trends, and innovations of our ever-changing industry. Part of…
READ MORE »
Custom Gooseneck Flatbed Truck Gives Sandblaster Greater Flexibility
Like countless others throughout 2020, Mark Wenger found himself in a state of uncertainty as Covid-19 left him a casualty of job loss in the wake of the pandemic. For…
READ MORE »

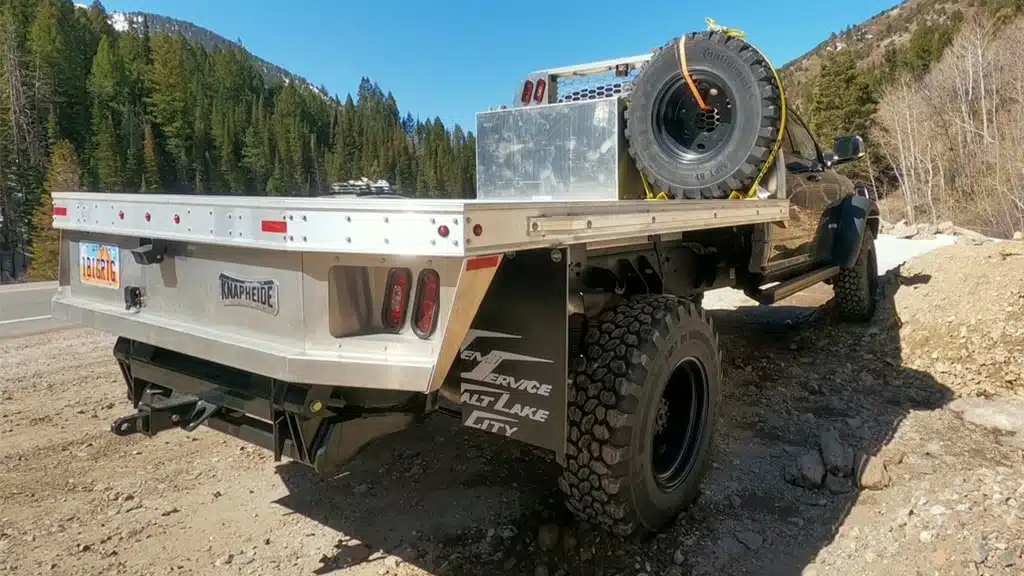

Aluminum Flatbed Truck Becomes Ultimate Recreational Rig
